Sika® FloorJoint PS-30 S - Floor Joint System
Verified by manufacturer 10 months ago

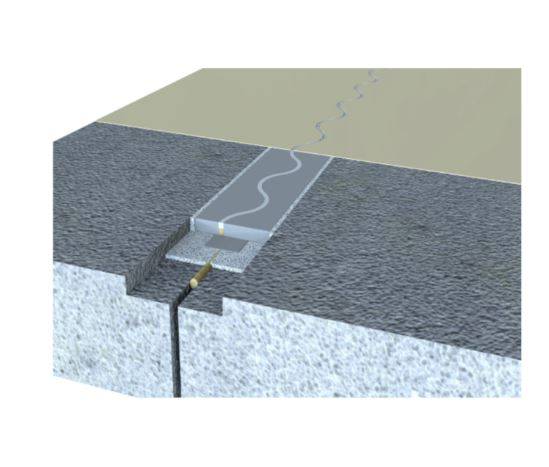

Carbon fibre prefabricated floor joint system.
Application
Floor joint system for new build and refurbished joints in concrete / concrete screeds in:
- Storage areas, assembly halls, maintenance workshops, hospitals, schools, warehouses, show rooms, pharmaceutical industry, production etc.
Description
Sika® FloorJoint PS-30 S is a carbon fibre reinforced polymer (CFRP) composite, prefabricated, floor joint system with high mechanical resistance for normal up to medium wear loading conditions.
Features and benefits:
- Grindable profile for level integration into the floor surface.
- Reduced vibrations under direct car and forklift traffic.
- Thermal expansion coefficient similar to resin based floors.
- Easy to install.
- Easy to repair.
- Short down time - Trafficable after only 24 hours.
- Waterproof system design possible.
- High chemical resistance.
- Non corroding.
- High mechanical resistance.
- Resistant to many chemicals. Contact Sika Technical Services for specific information.
- Fire Testing DIN EN 13501-1, Sika® FloorJoint, Hoch, Test report No. PB-Hoch-140803-3.
- Fire Testing DIN EN ISO 9239-1, Sika® FloorJoint, Hoch, Test report No. PB-Hoch-140802-3.
- Fire Testing DIN EN ISO 11925-2, Sika® FloorJoint, Hoch, Test report No. PB-Hoch-140801-3.
Joint design:
Consult literature for further details.
General information
Color | Grey |
Material | Polymer |
Shape | Rectangle |
Length | 1200 mm |
Width | 250 mm |
Height | 20 mm |
Uniclass | |
CAWS | J31/5 Cold deck roof coating J31/110 Cold deck roof coating |
Specification data - Floor construction joint trims
Material | Carbon fibre reinforced polymer. |
Colour | Grey. |
Width | Manufacturer guidanceGap width: 0-30 mm. Consult manufacturer for details and insert requirements. |
Thickness | 20 mm. |
Reaction to fire | To EN 13501-1, Bfl s1 (composite material of joint panel). |
Literature
Sika Floorjoint PS-30 S
Product Data Sheet - SikaFloorJoint S
