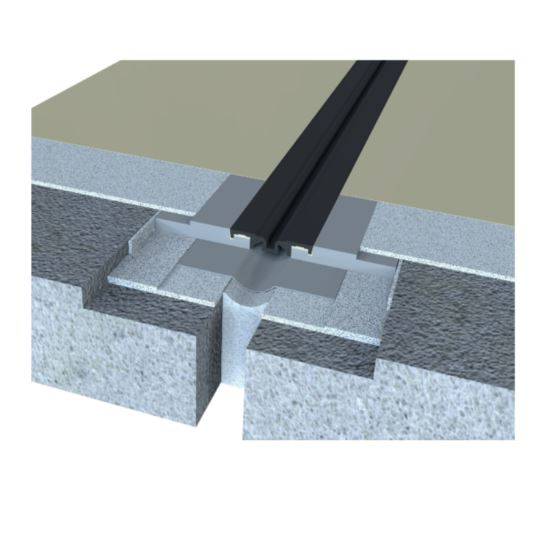

Sika® FloorJoint PB-30 PDRS - Floor Joint System

Sika® FloorJoint PB-30 PDRS is a carbon fibre reinforced polymer (CFRP) composite, prefabricated, floor joint system with integral replaceable rubber seal and high mechanical resistance. Its concentric integral rubber seal allows low vibrations under direct car traffic. Suitable for concrete slab vertical and horizontal movement.

Features and benefits:

• Grindable profile for level integration into the floor surface.
• Suitable for vertical and horizontal movements.
• Low vibrations under direct car traffic.
• Thermal expansion coefficient similar to resin based floors.
• Replaceable rubber seal.
• Easy to install / Easy to repair.
• Short down time - Trafficable after 24 hours.
• High chemical resistance.
• Non corroding.
• High mechanical resistance.
• Joint movement horizontal: 50 mm (-20/+30 mm).
• Joint movement vertical: 30 mm (-15/+15 mm).
• Recessed flange along both sides of panel.
• Double waterproof system design with integrated.
• Sikadur Combiflex SG System.
• Fire Testing DIN EN 13501-1, Sika® FloorJoint, Hoch, Test report No. PB-Hoch-140803-3
• Fire Testing DIN EN ISO 11925-2, Sika® FloorJoint, Hoch, Test report No. PB-Hoch-140801-3.
• Fire Testing DIN EN ISO 9239-1, Sika® FloorJoint, Hoch, Test report No. PB-Hoch-140802-3.

Joint design:

• Maximum gap width: 50 mm.
• Positive horizontal joint movement: +30 mm.
• Negative horizontal joint movement: -20 mm.
• Positive vertical joint movement: +15 mm.
• Negative vertical joint movement: -15 mm.
