Sigmat SFS - Steel Frame

Name: Sigmat SFS - Steel Frame
Brand: Sigmat Limited
SKU: juYmKmi6wR6MfywpEcVgrh

Verified by manufacturer over a year ago

Sigmat Limited

Steel framing system.

Jump to:

+44 (0)1756 701 522 Website

Application

For use as a structural member in a wall, floor or roof.

Description

Steel framing system (SFS) solutions for load-bearing and non-load-bearing applications.

Features and benefits:

Optimizes performance.
Easy installation.
Wall studs fitted with the unique Sigmat web stiffener.
Supplied as components or pre-assembled panels.

General information

Color	Grey
Finish	Galvanized
Material	Steel
Shape	Other Guidance for specification option: Various configurations - 'S' stud shape as standard.
Length	Bespoke
Width	Bespoke
Height	100 mm 150 mm 200 mm Manufacturer guidance Steel thickness: 1.2–2.0 mm.
Warranty description	- Manufacturer guidance Design life predictions are in excess of 250 years. NHBC and other housing warranty providers require a design life in excess of 60 years, and accept the use of light gauge steel construction. Even in uninsulated roof constructions, light steel sections provide a design life in excess of 100 years.

Uniclass	Pr_20_76_51_21 Cold-formed galvanized steel sectionsPrimary Ss_20_10_75_45 Light steel framing systems
CAWS	G10/30 Cold-formed galvanized steel G10/170 Cold-formed galvanized steel

Specification data - Cold-formed galvanized steel sections

Primary components	Studs. Base Track to Stud Connection. Slotted Head Track. Cill or Lintel Track Connection. Cill Track Connection - Heavy Duty. Lateral Restraints. Lintel Track Connection - Extra Heavy.
Material	-
Standard	To BS EN 10346.
Designation	S450GD+Z G275.
Thickness	1.2–2.0 mm.
Coating finish	Pre-hot dipped, galvanized steel.
Surface treatment	Z275.

Colour	Zinc grey.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	0.8 kg·CO₂e/kg Guidance for specification option: 0.8–1.2 CO2e/kg.
Recyclability	90%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	60 %

Sigmat SFS - Steel Frame

Application

Description

General information

Color

Finish

Material

Shape

Length

Width

Height

Manufacturer guidance

Warranty description

Manufacturer guidance

Uniclass

CAWS

Specification data - Cold-formed galvanized steel sections

Primary components

Studs.

Base Track to Stud Connection.

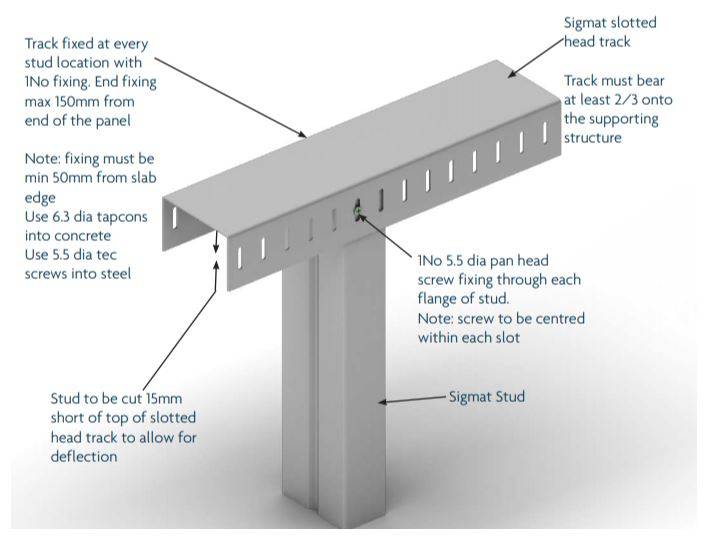

Slotted Head Track.

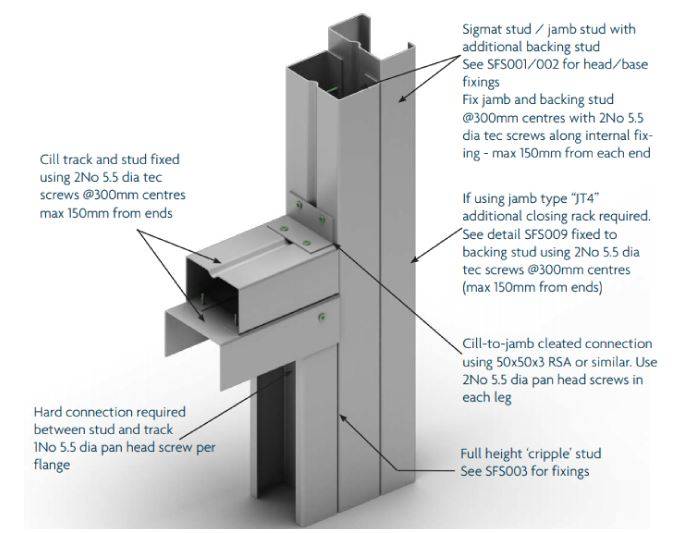

Cill or Lintel Track Connection.
