Siderise CW-FB Fireboard

Name: Siderise CW-FB Fireboard
Brand: Siderise Group
SKU: kvjiPfrRU8FuXMJwh1RaQt

Verified by manufacturer 1 day ago

Siderise Group

Product certifications:

Certifire Certificate
Certificate type
QA Certificate
Certificate type
BRE Certificate
Certificate type

Siderise CW-FB curtain wall fireboard forms part of a perimeter barrier firestop and spandrel zone protection system for use with non-fire rated aluminium curtain wall facades.

Jump to:

BOS

+44 (0) 1656 730 833 Website

Application

Siderise CW-FB Curtain Wall Fireboard is designed for use as part of a perimeter barrier firestop and spandrel zone protection system in non-fire-rated aluminium curtain wall facades.

CW-FB works in conjunction with CW-FS Firestop to maintain fire resistance performance in tested arrangements. The combined system has been tested to BS EN 1364-4:2014, Configuration 5, which assesses the firestop’s ability to contain fire within the compartment.

In these tests, CW-FB does not provide a standalone fire resistance rating but enables CW-FS Firestop to achieve 120 and 180 minutes integrity and insulation when installed as part of the tested system.

Standard sheet size: 2000 mm x 1180 mm. Pre-cut sizes are available when spandrel dimensions are provided.

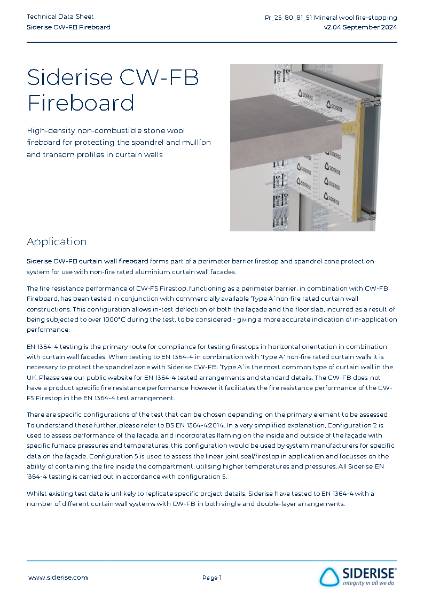

For detailed test reports, installation guidance, and limitations of use, please refer to our technical datasheet and EN 1364-4 tested arrangements on our website.

Description

Siderise CW-FB Curtain Wall Fireboard is a high-density stone wool board designed to maintain the fire resistance performance of the CW-FS Firestop when used with non-fire-rated curtain wall facades.

The product has been tested in combination with CW-FS to EN 1364-4:2014. This has allowed the CW-FS to achieve third-party certification via Certifire CF563 and Intertek WHI19-32944301.

Standard sheet size: 2000 mm x 1180 mm. Pre-cut sizes are available when spandrel dimensions are provided.

For full installation guidance and performance data, please refer to the product technical datasheet.

Features and benefits:

Role in Fire Performance: CW-FB Fireboard helps prolong the performance of the curtain wall spandrel assembly preventing the compartmentation line at the perimeter joint from being breached, whilst reducing the likelihood of fire from breaking out through the spandrel panel itself.
Testing and Certification: CW-FB Fireboard has been tested multiple times as part of the CW Perimeter Barrier System to EN 1364-4, ASTM E2307, and ASTM E2874 in combination with commercially procurable non-fire rated curtain wall constructions – enabling CW-FS Firestop in the void between the floor assembly and façade to achieve third-party certified fire resistance performances up to 180mins.
Tested arrangements: CW-FB Fireboard has been utilised in both single and double-layer arrangements to facilitate the testing of CW-FS Firestop.

General information

Color	Silver
Finish	Foil Guidance for specification option: Foil facing top and bottom.
Material	Mineral wool
Shape	Square
Length	2000 mm
Width	1180 mm Guidance for specification option: United Kingdom 1200 mm Guidance for specification option: Middle East
Height	25 mm

Uniclass	Pr_25_80_81_51 Mineral wool fire-stoppingPrimary
CAWS	H11/780 Thermal insulation P12/360 Mineral wool rigid batts P12/40 Mineral wool rigid batts

SKU Code	CW-FB

Product range	Curtain Walling

Specification data - Mineral wool fire-stopping

Classification data
Material	-
Standard	To BS EN 1364.
Third-party certification	Certifire and Intertek certified.
Type	Fixed.
Density	160 kg/m³ (nominal).
Facing	Aluminium foil.
Fire performance	Siderise CW-FB curtain wall fireboard is tested to EN 1364-4: 2014 and certified up to 180 minutes (integrity and insulation) when used in conjunction with CW-FS180 Perimeter Barrier, and 120 minutes (integrity and insulation) when used in conjunction with CW-FS120 Perimeter Barrier.
Length	1200 mm.
ThermalConductivity	0.042 W/m·K.
Fixing brackets	Guidance for specification option: Insert requirement, consult manufacturer's literature for more information.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Mineral wool
Recyclability	Recyclable
