Side Sliding Sectional Garage Doors - Garage door

Verified by manufacturer 16 days ago

Rundum Meir (UK) Ltd

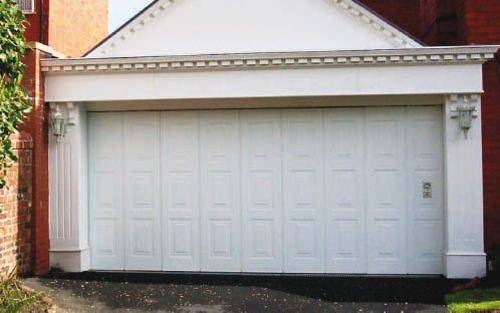

Side-sliding sectional garage door available in timber, extruded aluminium and special finishes.

Jump to:
+44 (0)151 280 6626 Website

Application

  • Designed for use on high-end residential or commercial properties, particularly within new-build, conversion or renovation projects.
  • For a range of building styles, including heritage Grade II listed buildings to modern, contemporary styles.

Description

Side-sliding sectional garage door, with panels which are suspended from a top track and slot into either a traditional U-channel with drainage facilities or surface mounted T-bar at the foot of the door, dependent on project requirements.


Features and benefits:

  • Combines a pleasing aesthetic with high functionality.
  • Manufactured using high quality vertical timber panels.
  • Designed bespoke to fit most openings, including archways.
  • Available in a wide range of design options (e.g. exclusive panelling, boarding and window variations) which can complement various architectural styles.
  • Can be seamlessly integrated into most projects.
  • Easy to operate.
  • Manual as standard, with automation available if required, which is suitable for integration into all popular smart home automation systems.
  • Constructed with double skin timber insulation and fittings which require minimal maintenance and are stable and durable.
  • Conforms to BS EN 13241: Part 1.

General information

Color

Most RAL colours, anodized finishes and timber stains and oils available.

Beige

Black

Blue

Bronze

Brown

Show more

Finish

Bright

Brushed

Buffed

Coated

Etched

Show more

Material

Sandwich panel also available.

Aluminium

Timber

Wood

Brass

Copper

Show more

Shape

Square

Rectangle

Crescent

Circle

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Please contact us as warranties vary according to material type and maintenance requirements.

-

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/520 Sliding doors

Specification data - Sliding door and partition sets

Performance

External.

Arrangement

Side-sliding.

Track system

Double track guides.

Double track guides and corner screen.

Only available in combination with an electronic motor.

Standard, single.

Door leaves

-

Finish and colour

Most RAL colours, anodized finishes and timber stains and oils available. Consult manufacturer and insert requirement.

Operation

Manual.

As standard.


Powered.

Automation available if required, which is suitable for integration into all popular smart home automation systems.

Hardware

Angled rail.

50/ 30/ 5 mm.

T-Bar.

50/ 25/ 5 mm.

U-Channel.

36/ 36/ 3 mm. Includes drainage facilities.

Accessories

Not required.

Automation (belt drive operator).

Various versions are available, consult manufacturer for details.

Wood treatment, base coat.

Vision panels.

For better light transmission. Consult manufacturer for available options and insert requirements.

Lintel fascia

Full.

When no lintel is provided.

Partial.

For lintels less than 150 mm.

Design/ size

Insert drawing/ reference.

Sustainability data

Contains Red List materials

No

Country of material origin

Depends on the material chosen for the garage door.

-

Country of product manufacture

Germany

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

Guidance:

Depends on the material chosen for the door manufacture.

-

Recyclability

Main doors are highly recyclable as they are mainly made of metals and timber.

95%

Recycled content

Depends on the material used to manufacture the door.

-

Literature

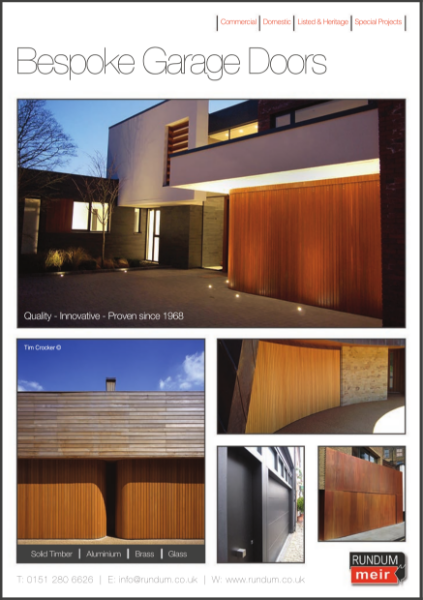

Rundum Meir Garage Door Brochure

Rundum Meir Garage Door Brochure

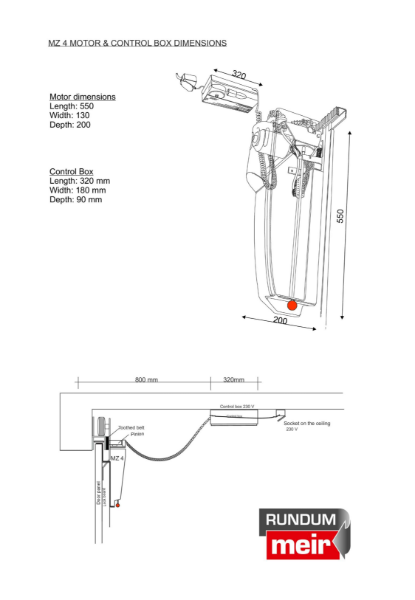

Rundum Meir MZ 4 motor & control box dimensions

Rundum Meir MZ 4 motor & control box dimensions

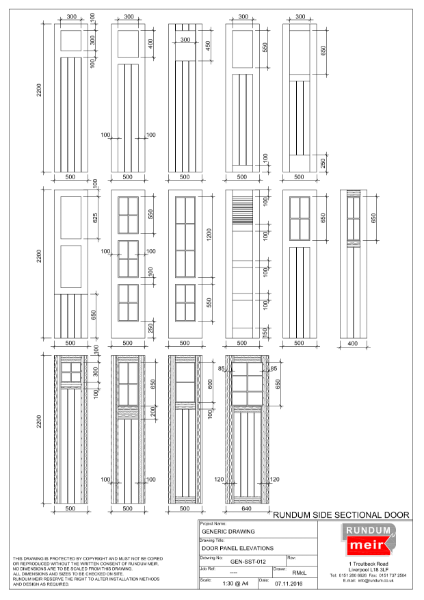

Rundum Meir side sectional garage doors window dimensions

Rundum Meir side sectional garage doors window dimensions

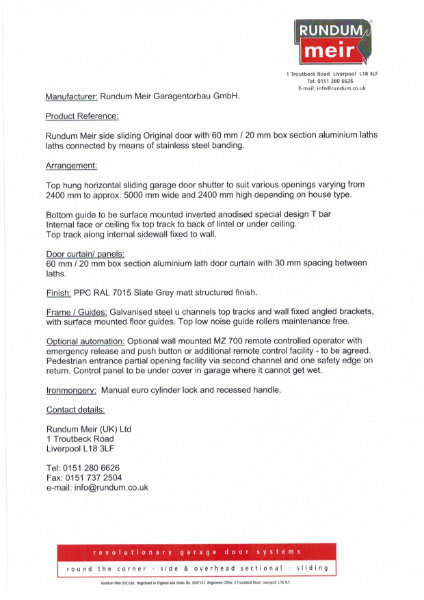

Rundum Original side sliding garage door specification

Rundum Original side sliding garage door specification

Garage door images

Garage door images

Case studies

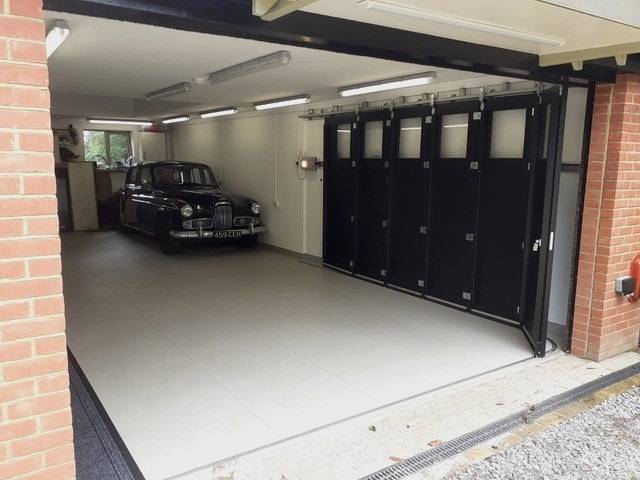

Creating the perfect garage for classic Humber car collection

Creating the perfect garage for classic Humber car collection

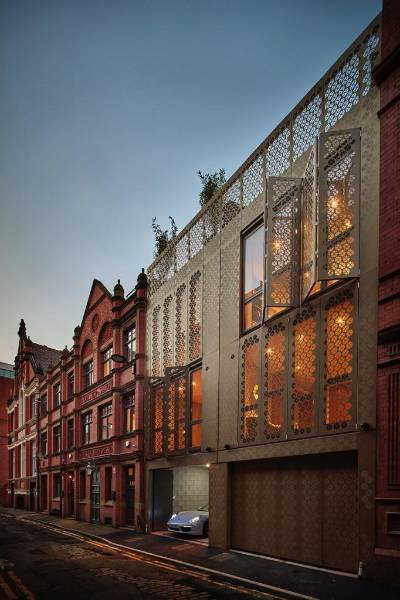

Rundum Meir façade doors uniquely reflect Manchester landmark’s heritage

Rundum Meir façade doors uniquely reflect Manchester landmark’s heritage

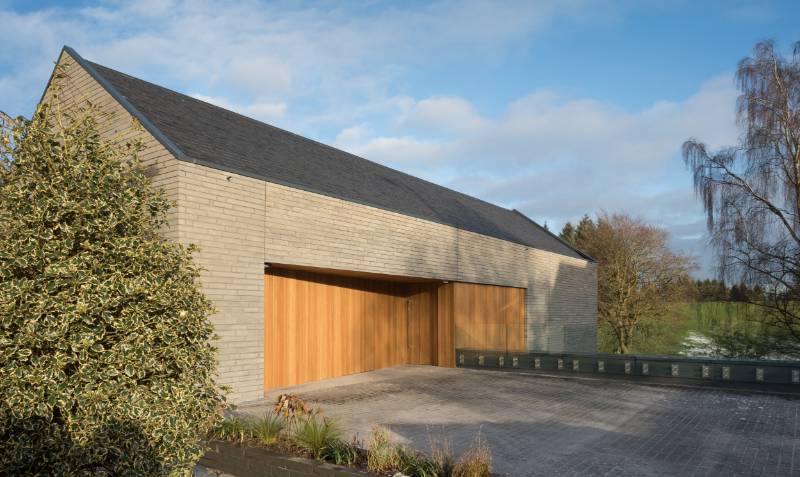

Delivering specialist vehicle dual-access for sensitively-designed Belfield House

Delivering specialist vehicle dual-access for sensitively-designed Belfield House

Contemporary elegance and consistency for award-winning TrägerHAUS

Contemporary elegance and consistency for award-winning TrägerHAUS

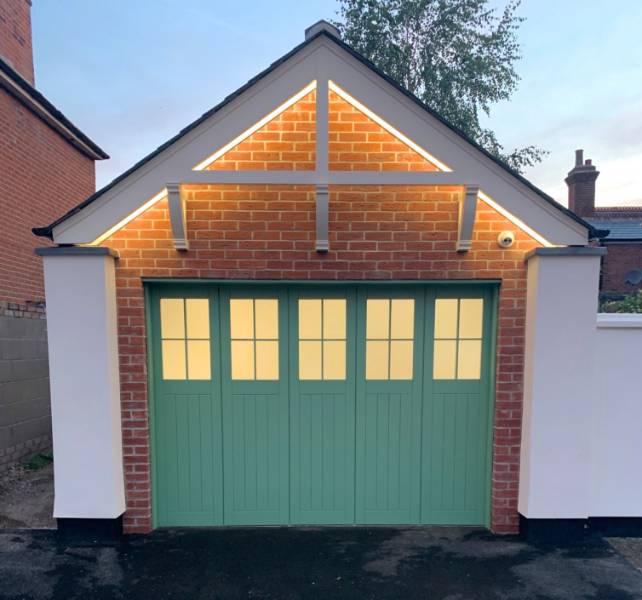

Bespoke Rundum Meir door chosen for period property renovation
