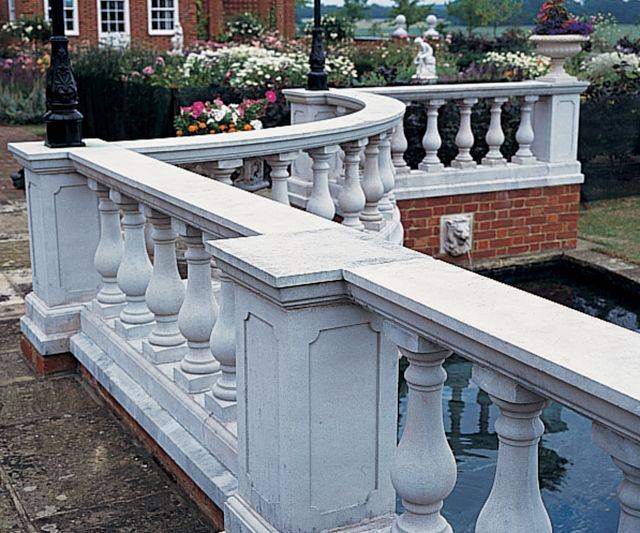

Side Run-In Balustrade
Application

  • Suitable for indoors and outdoors.
  • Suitable for commercial and residential projects.

The manufacturer recommends that non-ferrous fixings (X950 pack) be incorporated at all rail joints and in horizontal beddings in all cases. All balusters are supplied with stainless steel dowels for installing to rails and plinths.

Description

Cast stone side run-in balustrade suitable for multiple practical applications. Bespoke design options are available, consult manufacturer for details.

If balustrades are to be used as a parapet wall or a raised terrace edge, several options of under-copings are available, which can be used below the plinth course to increase the height of the balustrade or to cap a substructure.

Material:

- Haddonstone (Semi-dry cast limestone):

High quality semi-dry cast stone, consisting of over 50% limestone aggregate. With a surface texture similar to Portland Stone, Haddonstone is regularly used alongside or as an alternative to natural stone.

- TecStone (wet cast limestone):

High quality wet cast stone, comprising over 60% natural limestone aggregate. Denser than the Haddonstone material, TecStone is acid etched as standard to provide an attractive appearance similar to a finished natural stone. Designed to meet demanding performance criteria, and can incorporate structural reinforcement and cast-in fixings. TecStone is the preferred material for architectural projects where structural performance is required.

Features and benefits:

  • Available in a range of colours.
  • Available in a range of materials.
  • Aesthetically pleasing appearance.
  • Building Regulation compliant.

Applications:

  • Suitable for indoors and outdoors.
  • Suitable for commercial and residential projects.

The manufacturer recommends that non-ferrous fixings (X950 pack) be incorporated at all rail joints and in horizontal beddings in all cases. All balusters are supplied with stainless steel dowels for installing to rails and plinths.

General information

Material

Haddonstone (semi-dry cast limestone)

TecStone (wet cast limestone)

Uniclass 2015

Pr_20_76_06_86 Stone balusters and newel postsPrimary

CAWS

F22/110 Cast stone

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

L37/370 Manufactured stone balusters

L37/385 Manufactured stone pier

Specification data - Stone balusters and newel posts

Product Reference

Cast Stone Side Run-In Balustrade

Type

Flat style FC

Part-weathered style PC

Material

Haddonstone (semi-dry cast limestone)

TecStone (wet cast limestone)

Colour

Bath 02

Ivory Limestone IL

Portland 01

Bespoke

Insert requirement for colour.

Balusters

-

Type

K356G

356 mm high.

K425G

425 mm high.

K457G

457 mm high.

K533G

533 mm high.

K609G

610 mm high.

K610G

610 mm high.

K629G

629 mm high.

K724G

724 mm high.

Spacing

Close

225 mm Centre spacing.

Normal

305 mm Centre spacing.

Piers

See 'Options' below and insert reference.

Accessories

None

Baluster bar to reduce spacing

Cast-in fixings

Insert requirements for cast fixings.

Cast-in lifting sockets

Insert requirements for lifting sockets.

X950 Balustrade Installation Pack

Standard product features

Compressive cube strength after 28 days (minimum):

  • Haddonstone: >35 MPa.
  • TecStone: >45 MPa.

Both materials exceed the requirements of the United Kingdom Cast Stone Association (UKCSA) specification and comply with the requirements of BS 1217, BS 5642-2+ A1 and BS EN 13198.

Haddonstone:

  • Material density: 2150 kg/m³.
  • Compressive strength: Minimum compressive cube strength at 28 days is >35 N/mm² (MPa).
  • Aggregate size: 0–3 mm continuously graded.
  • Finish: Ex-Mould (no finishing required).
  • Freeze/ thaw resistance: Complies with UKCSA Standards so products deemed freeze/ thaw resistant.
  • Handling reinforcement: Where appropriate units may contain one or more stainless steel, synthetic fibre or extruded basalt reinforcement bar (30 mm minimum cover).

TecStone:

  • Material density: 2350 kg/m³.
  • Compressive strength: Minimum compressive cube strength at 28 days is >45 N/mm² (MPa).
  • Aggregate size: 0–10 mm continuously graded.
  • Finish: Light acid etched.
  • Freeze/ thaw resistance: Complies with UKCSA Standards so products deemed freeze/ thaw resistant.
  • Handling reinforcement: Where appropriate units may contain one or more stainless steel, synthetic fibre or extruded basalt reinforcement bar (30 mm minimum cover).

Product Options

Balusters:

Balusters are circular with the exception of the top and bottom blocks which are square.

Piers:

  • K200 - Inside Corner.
  • K210 - Centre.
  • K220 - Outside Corner.
  • K230 - LH Terminal.
  • K240 - RH Terminal.
  • K260 - 135° Centre.
  • K290 - 135° RH Terminal.
  • K300 - 135° LH Terminal.

Under-copings:

  • T930 - 377 mm wide, 900 mm long.
  • T935 - 265 mm wide, 900 mm long.
