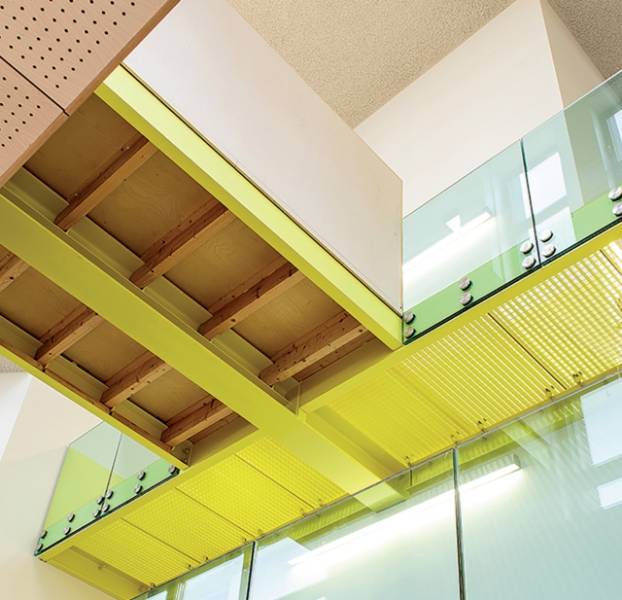

Side Mounted Point Fixings TL_2060_TL_2080
Application

Suitable for use in private and commercial areas; especially in simple constructions and individual applications.

Description

0.36 kN side mounts.

Features and benefits:

  • Available with diameters of 60 mm and 80 mm.
  • Suitable for glass thicknesses between 13 and 22 mm.
  • Glass position is adjustable.
  • Modern, unobtrusive design.
  • Simple, practical mounting.

Applications:

Suitable for use in private and commercial areas; especially in simple constructions and individual applications.

General information

Uniclass 2015

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/50 Purpose-made balustrades

L30/55 Proprietary balustrades

L30/550 Purpose-made balustrades

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems

Product Reference

Side Mounted Point Fixing, TL-2060

60 mm diameter.

Side Mounted Point Fixing, TL-2080

80 mm diameter.

Point fixings

10 mm from wall

30 mm from wall

For TL-2060 only.

Accessories/ Other requirements

Not required

Trans Level Tool

Suitable for all OnLevel TL-20 systems.

Standard product features

Length:

  • TL-2060: 130 mm.
  • TL-2080: 195 mm.

Product Options

Point fixings:

Two-piece unit. Insert product reference.

- 10 mm from wall:

Side Mounted Point Fixing, TL-2060:

Interior application: V2A (10.2060.100.21), exterior application: V4A (10.2060.100.31).

Side Mounted Point Fixing, TL-2080:

Interior application: V2A (10.2080.100.21), exterior application: V4A (10.2080.100.31).

- 30 mm distance from wall:

Side Mounted Point Fixing, TL-2060:

Interior application: V2A (10.2060.300.21), exterior application: V4A (10.2060.300.31).

Accessories/ Other requirements:

- Trans Level Tool:

Side Mounted Point Fixing, TL-2060:

Steel zinc plated (93.0201.060.00).

Side Mounted Point Fixing, TL-2080:

Steel zinc plated (93.0201.080.00).
