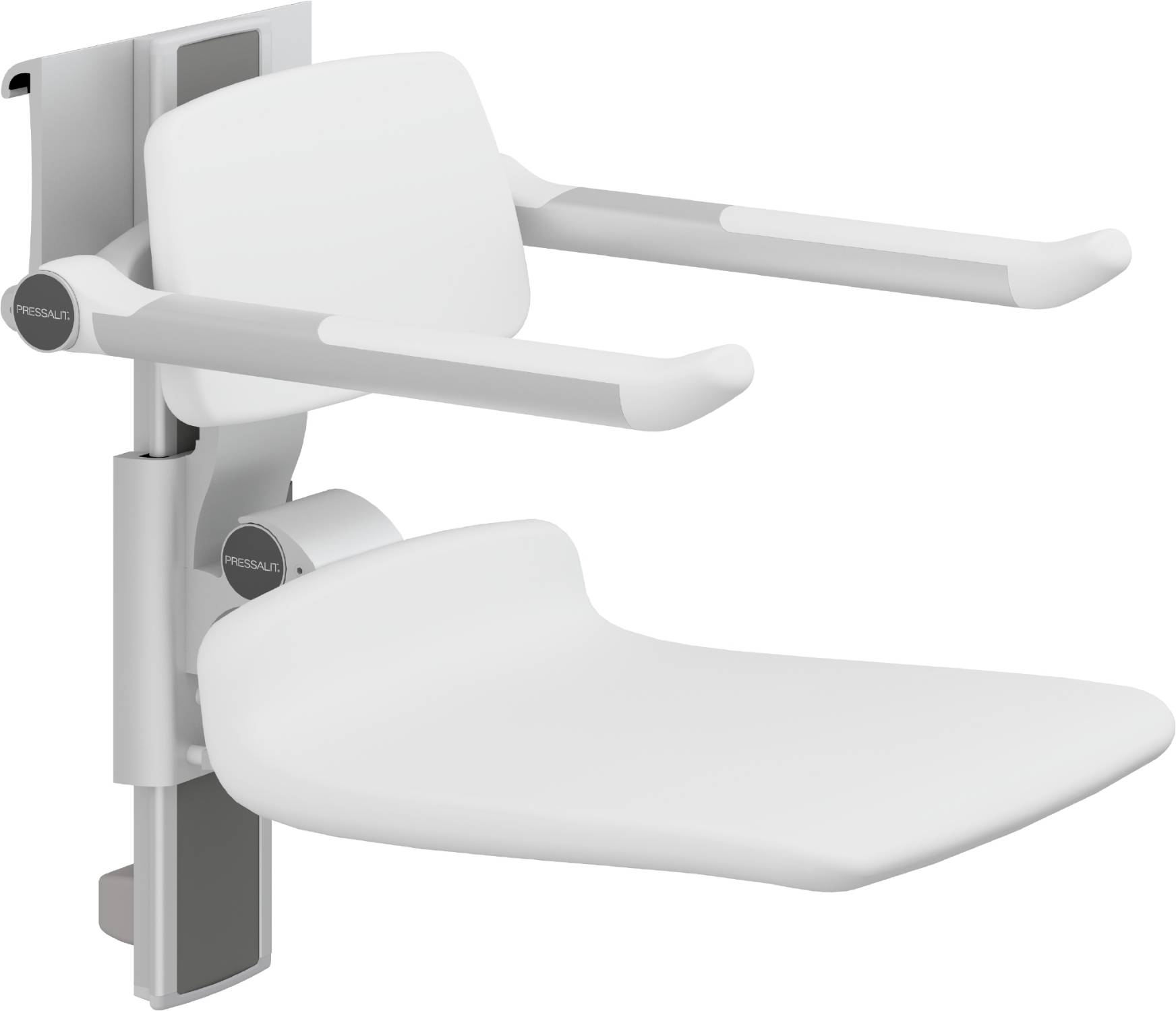

Shower seat PLUS 450 height and sideways adjustable - R7464

Verified by manufacturer 27 days ago

Pressalit Limited Third party certifications:
  • ISO 17966:2016

    Certificate type

Manually adjustable shower seat without aperture. Requires horizontal track.

Jump to:
BOS
+44 (0)118 923 2696 Website

Application

Ergonomically designed shower seat for use in schools hygiene rooms, workplaces, changing places and private homes.


Pressalit’s shower seat can be adjusted according to the requirements of the individual user or user situation. This makes showering an experience that is both safe and comfortable.


When folded up, the seat and armrests take up minimal space. This gives more freedom of movement – for the benefit of both the user and carer.

Description

Pressalit PLUS 450 height and sideways adjustable shower seat for wall track.


Features and benefits:

  • Wall track mounted seats and chairs provide vertical and horizontal adjustment - meeting the demands of unknown and changing user requirements.
  • Shower chairs are available for children and adults.
  • Maximum user mass (seat): 200 kg.
  • Maximum load for armrests is 55 kg.
  • When the seat is loaded with 200 kg, each wall fastener is loaded with 23 kg.
  • The seat has been tested statically with safety factor 1.5, which is a requirement according to the applied assistive products standards.
  • Height and sideways adjustable shower seat with arms and backrest.
  • Soft and slip-resistant material that has a warm feel.


Requires Pressalit's horizontal track R98xx


Construction:

450 seat and backrest is made from polyurethane (PU) foam with a plywood core, this is covered with an in-mould coated surface that is protected using a clear PU lacquer. The support arms for the chairs are primarily constructed of 10 micrometre aluminium, with non-slip ends made of soft SEBS incorporating a glass-reinforced nylon core. Internal components and fasteners are primarily made of stainless steel.


Height adjustment:

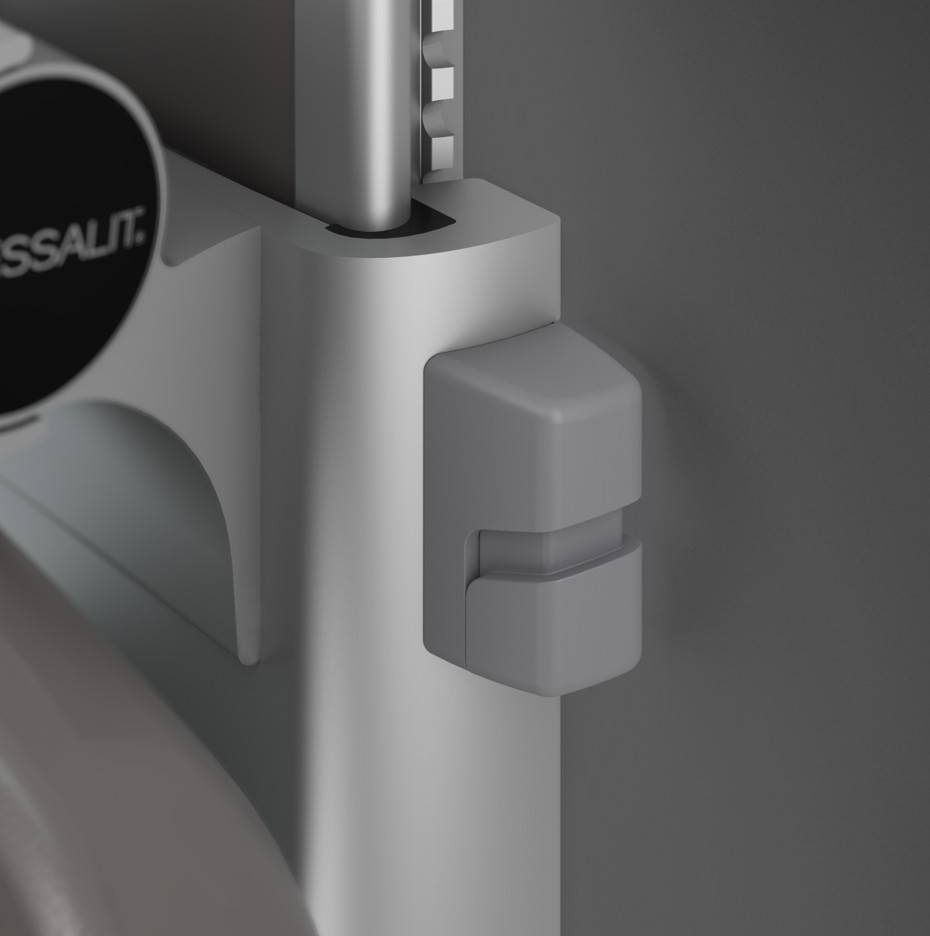

Achieved by simply raising and lowering seat, backrest and arms up or down vertical wall track. A lever lock is provided for seats mounted on horizontal wall track.


Option

  • R7465 with aperture (white and anthracite only)

General information

Color

White

Red

Blue

Grey

Green

Finish

Lacquered

Material

Polyurethane

Aluminium

Shape

Other

Length

450 mm

Width

437 mm

Height

Bespoke

Manufacturer guidance

Manually height adjustable by 195 mm

Warranty description

Five year

Uniclass

Pr_40_20_06_83 Shower seatsPrimary

CAWS

N13/448 Seats

Product range

PLUS shower seats

Specification data - Shower seats

Form

Wall mounted.

Materials

-

Frame

Aluminium.

Seat

Polyurethane foam.

Integral accessories

Horizontal wall track.

Guidance for specification option:

Required for track mounted Plus products R98xx.

None.

RT874.

Guidance for specification option:

Front and back support.

Colour

000 White.

035 Red.

108 Dark Blue.

112 Anthracite.

277 Lime Green.

Length

450 mm.

Operation

Manual.

Sustainability data

Contains Red List materials

No

Country of material origin

Denmark

Country of product manufacture

Denmark

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2016

3

Third party certifications

ISO 17966:2016

ISO 17966:2016
