Shower seat, fixed height 650 mm projection VALUE IV R1620000112

Verified by manufacturer 2 months ago

R1620000112 without support leg

Pressalit Limited Variant:
Third party certifications:
  • ISO 17966:2016

    Certificate type

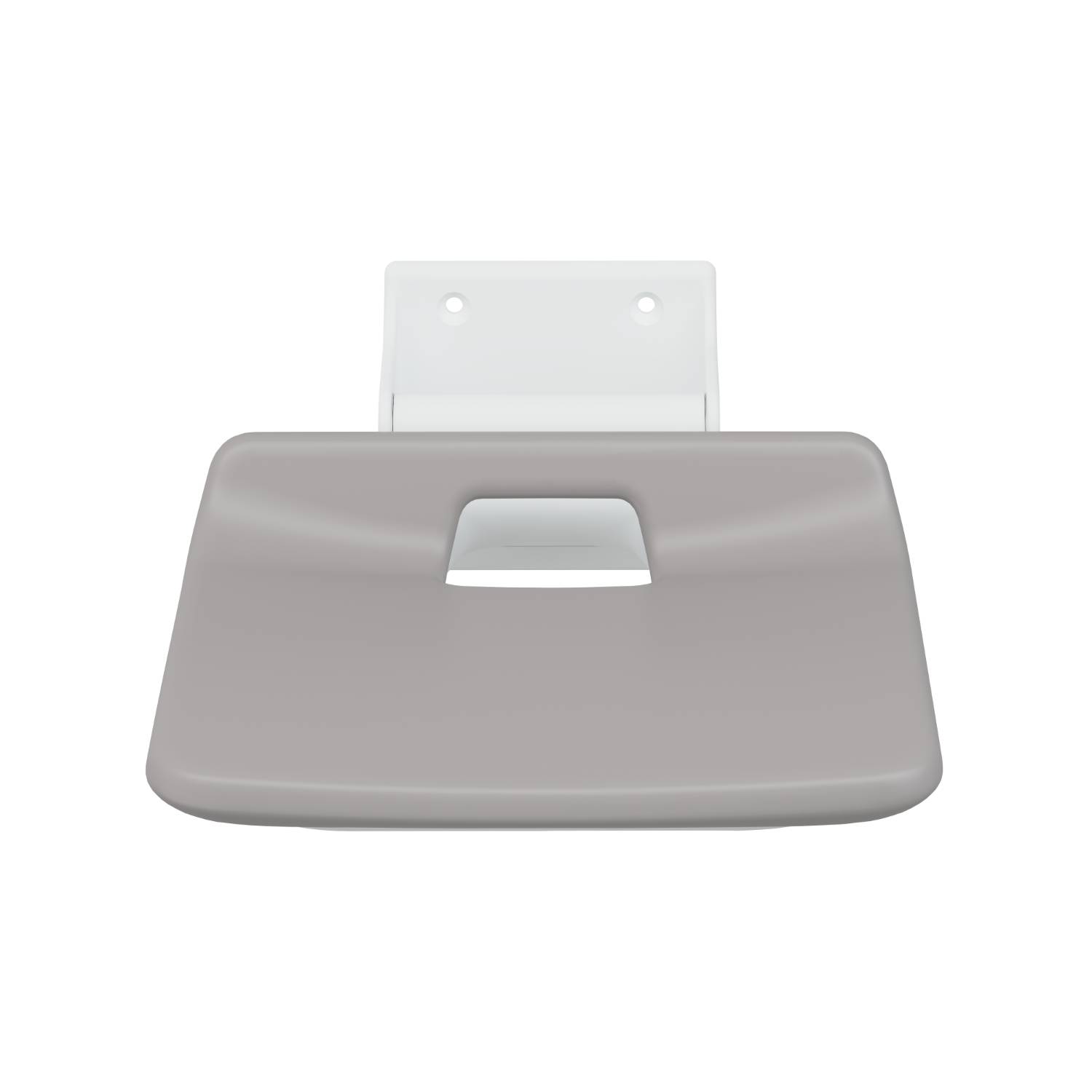

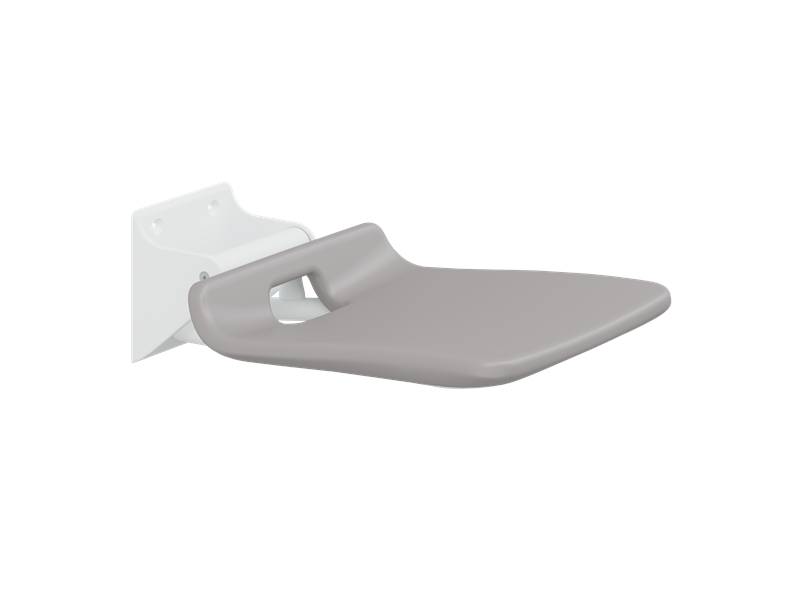

Shower seat, fixed height. 650 mm projection R1620000112.

Jump to:
+44 (0)118 923 2696 Website

Application

For use in shower area. Suitable for wheelchair transfers. Suitable for a maximum vertical load of 125 kg.


Accessible toilets, DocM, DDA. For hygiene rooms, showers and changing areas in hospitals, schools, leisure centres.

Description

Shower seat folds up against the wall. White frame with anthracite grey seat. 650 mm projection


Options:

  • R1620000112 fold-down shower seat
  • R1622000112 fold-down shower seat with leg


Product capacity:

  • Maximum user mass: 125 kg.
  • When the seat is loaded with 125 kg, each wall fastener is loaded with 95 kg.
  • The seat has been tested statically with safety factor 1.5, which is a requirement according to the applied assistive products standards.


Compatible with VALUE lV fixed height backrest (specified separately). R1661000112

General information

Color

White

Guidance for specification option:

Frame.

Grey

Guidance for specification option:

Seat (anthracite grey).

Finish

Anti-slip

Material

Aluminium

Guidance for specification option:

Diecast.

Stainless steel

Guidance for specification option:

Rilsan coated.

Polyethylene

Guidance for specification option:

Vacuum moulded.

Shape

Rectangle

Length

650 mm

Width

450 mm

Height

Bespoke

Manufacturer guidance

Check instructions for recommended seat height

Warranty description

Five year

Uniclass

Pr_40_20_06_83 Shower seatsPrimary

CAWS

N13/448 Seats

Specification data - Shower seats

Form

Wall-mounted.

Materials

-

Frame

Tubular carbon steel, powder-coated, white.

Seat

Vacuum-moulded polyethylene, anthracite grey.

Integral accessories

None.

Verification

-

Submittals

Vacuum-moulded polyethylene, anthracite grey.

Timing

Wall-mounted.

Sustainability data

Contains Red List materials

No

Country of material origin

Denmark

Country of product manufacture

Denmark

BIM objects

Platform Compatible Version
Revit
-

1

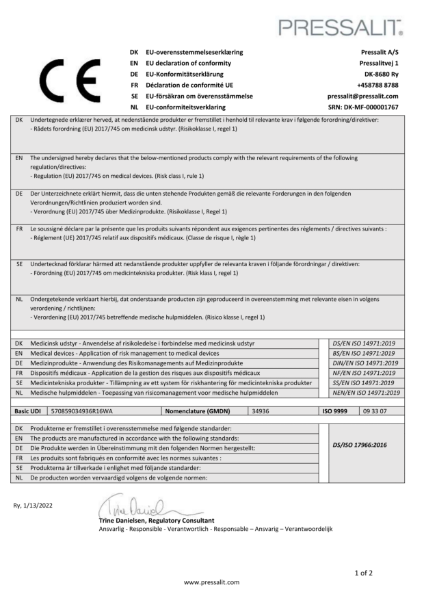

Third party certifications

ISO 17966:2016

ISO 17966:2016

EUR1620

Literature

Pressalit Value shower seats, height adjustable basins, support arms

Pressalit Value shower seats, height adjustable basins, support arms
