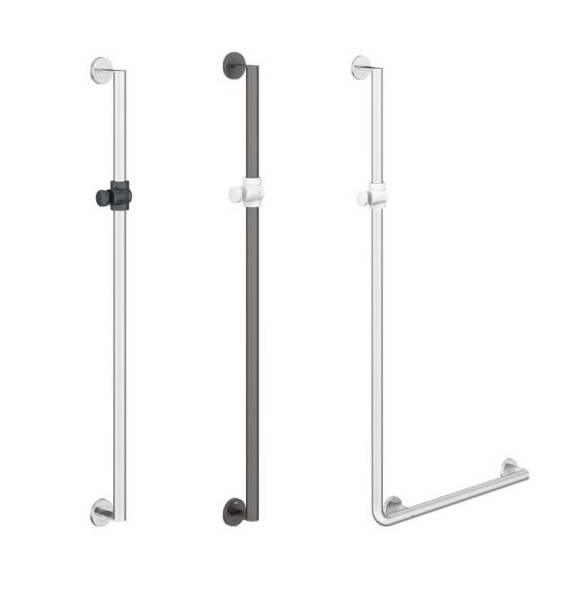

Shower Rails
Description

A range of rails for use in shower environments.

Features and benefits:

  • Suitable for use with shower heads of various manufacturers.
  • Showerhead holder can be tilted continuously and, by pressing a large pushbutton, its height can be adjusted.
  • Conical adapter on the shower head holder makes it easier to hook in the showerhead.
  • Includes non-corrosive and tested HEWI fixing material for wall mounting and sealing tape for sealing the drilling points.
  • The upper mounting point (non-visible area) is accessible for easy replacement of the shower head holder.
  • Fulfils the highest cleaning product resistance and hygiene requirements.

General information

Size

Depth: 88 mm

Rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm

Uniclass 2015

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/375 Shower units

Specification data - Shower fittings package

Product Reference

Shower Rail

Type

See 'Options' below and insert reference.

Standard product features

Size:

  • Depth: 88 mm.
  • Rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm.

Product Options

Type:

- Chrome:

  • Shower Rail 'L-shaped L' 1250 x 600 mm Chrome/ Signal white – 900.33.20340 98.
  • Shower Rail 'L-shaped R' 1250 x 600 mm Chrome/ Anthracite grey – 900.33.20140 92.
  • Shower Rail with Shower Holder 1100 mm Chrome/ Signal white – 900.33.00240 98.
  • Shower Rail with Shower Holder 900 mm Chrome/ Anthracite grey – 900.33.00140 92.

-Matt coated:

  • Shower Rail 'L-shaped L' 1250 x 600 mm Matt coated, Black/ black – 900.33.20360 CV.
  • Shower Rail 'L-shaped L' 1250 x 600 mm Matt coated, White/ white – 900.33.20360 AS.
  • Shower Rail 'L-shaped L' 1250 x 600 mm Matt coated, Light grey pearl mica/ white – 900.33.20360 AX.
  • Shower Rail 'L-shaped L' 1250 x 600 mm Matt coated, Dark grey pearl mica/ white – 900.33.20360 CD.
  • Shower Rail 'L-shaped R' 1250 x 600 mm Matt coated, Black/ black – 900.33.20160 CV.
  • Shower Rail 'L-shaped R' 1250 x 600 mm Matt coated, White/ white – 900.33.20160 AS.
  • Shower Rail 'L-shaped R' 1250 x 600 mm Matt coated, Light grey pearl mica/ white – 900.33.20160 AX.
  • Shower Rail 'L-shaped R' 1250 x 600 mm Matt coated, Dark grey pearl mica/ white – 900.33.20160 CD.
  • Shower Rail with Shower Holder 1100 mm Matt coated, Black/ black – 900.33.00260 CV.
  • Shower Rail with Shower Holder 1100 mm Matt coated, White/ white – 900.33.00260 AS.
  • Shower Rail with Shower Holder 1100 mm Matt coated, Light grey pearl mica/ white – 900.33.00260 AX.
  • Shower Rail with Shower Holder 1100 mm Matt coated, Dark grey pearl mica/ white – 900.33.00260 CD.
  • Shower Rail with Shower Holder 900 mm Matt coated, Black/ black – 900.33.00160 CV.
  • Shower Rail with Shower Holder 900 mm Matt coated, White/ white – 900.33.00160 AS.
  • Shower Rail with Shower Holder 900 mm Matt coated, Light grey pearl mica/ white – 900.33.00160 AX.
  • Shower Rail with Shower Holder 900 mm Matt coated, Dark grey pearl mica/ white – 900.33.00160 CD.

- Satin stainless steel:

  • Shower Rail 'L-shaped L' 1250 x 600 mm Satin Stainless Steel/ Signal white – 900.33.203XA 98.
  • Shower Rail 'L-shaped R' 1250 x 600 mm Satin stainless/ Anthracite grey – 900.33.201XA 92.
  • Shower Rail with Shower Holder 1100 mm Satin Stainless Steel/ Signal white – 900.33.002XA 98.
  • Shower Rail with Shower Holder 900 mm Satin Stainless Steel/ Anthracite grey – 900.33.001XA 92.
