Shower Head

Pressalit shower heads and fittings form part of the PLUS range. Shower mixers and shower heads can be mounted on the Pressalit PLUS wall track system and or PLUS grab rails, to provide vertical and horizontal adjustment. This adjustment provides much needed flexibility where user requirements change.

General information







3 yrs

Uniclass 2015
Pr_40_20_87_75 Shower fittings packagePrimary

N13/375 Shower units

N13/40 Shower units

Specification data - Shower fittings package
Product Reference

Shower Fittings

Shower mixer bracket

Not required


Shower mixer bracket for mounting on horizontal PLUS wall track - a shower mixer/valve will be required for the bracket with centres of 151 mm ±, horizontal PLUS wall track will also be required.

Shower head

Not required

RT612 -

Showerhead with normal jet, 2000 mm hose, chrome.

RT613 -

Showerhead with three jet options: normal, soft and massage, 2000 mm hose, chrome.

Shower head holder

Not required


Showerhead holder for use with vertical grab rails (recommended RT104, RT118/9, RT136, RT144).


000 White

035 Red

108 Dark Blue

112 Anthracite

Product Options

Shower mixer bracket:

The shower mixer bracket is designed for mounting on the Pressalit wall track system, the movable shower mixer bracket allows individual placing of the shower head and mixer, at a shower chair or over a washbasin or toilet. The spring lock features adjustable spring tension for individual adjustment.

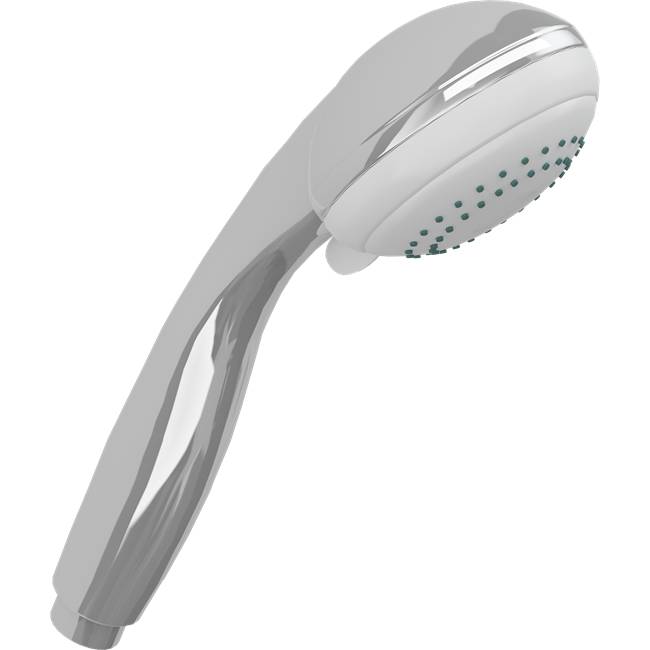

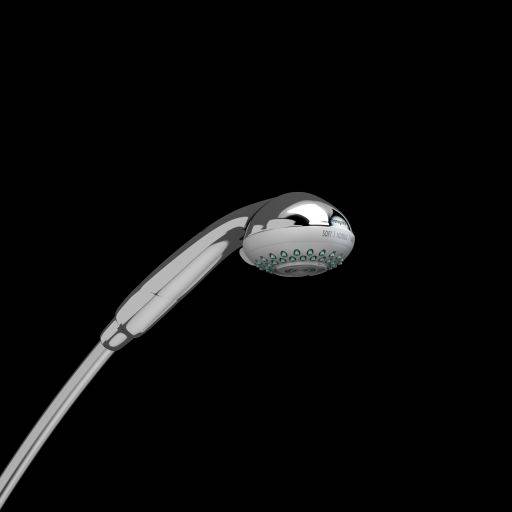

Shower head:

Incorporating a well-balanced curved handle, the shower heads are lightweight, suitable for disabled use. An adjustment ring allows easy adjustment of the spray mode.

Shower head holder:

The shower head holder is designed to allow easy height adjustment with one hand, if necessary. The shower head angle is adjustable by a click system. The units are mounted on a handrail and is suitable for standing or sitting users.

Digital objects
PlatformCompatibleVersionCertified to
IFC2X3 2 1.3
Revit 2016 3 2.0
Download now from NBS National BIM Library
Third party certifications
  • CE Marked: In accordance with the European Medical Device Directive 93/42/EC including amendments incorporated in Directive 2007/47/EEC : A declaration of conformity can be found at www.pressalit.com
