Non-thermal aluminium door system for commercial and retail applications.
Swing, hinged and automatic commercial entrance doors, specifically developed for heavy duty applications such as schools and hospitals.

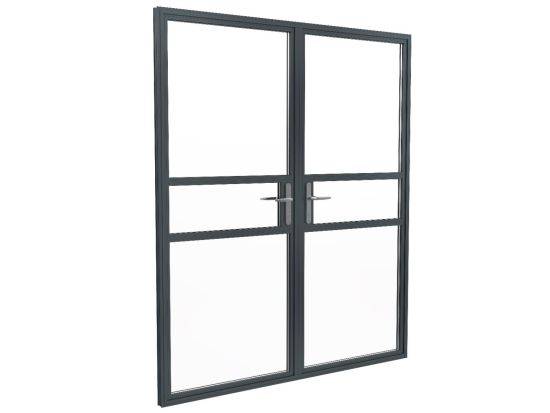

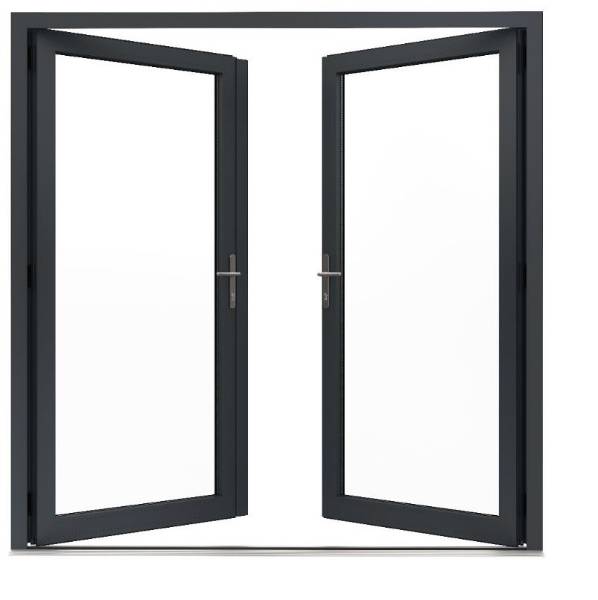

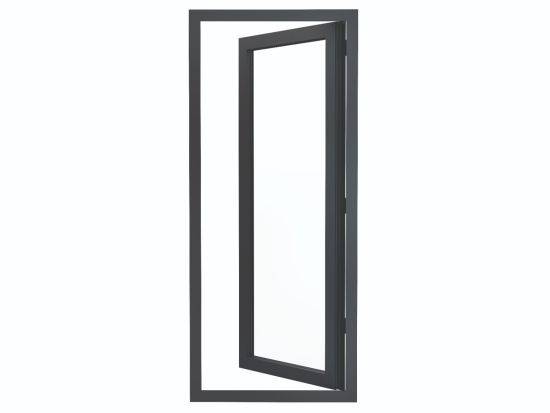

The Shopline system includes solutions for single and double commercial doors. Swing doors with concealed overhead closers, rebated doors and automated swing/ sliding doors can all be manufactured with Shopline.
Shopline doors are easy to manufacture, using mechanical corner brackets instead of traditionally welded corners. The mechanical fixing is not affected by HAZ degradation experienced on welded joints. This method of fabrication creates an exceptionally strong and durable door with a quality and consistency of joint not possible with welded construction.
Disability Discrimination Act (DDA) and Building Regulations (E&W) Document M options are available including low threshold and anti-finger trap sections.
Swing doors:
Shopline swing doors utilize the Adams Rite ARC-51 Overhead transom concealed door closer in a range of strengths for doors up to 1100 x 2500 mm (w x h). A range of floor/ threshold pivots are available for use with the overhead closer for door weights up to 110 kg. When wider doors are required, contact Smart’s Technical Department for guidance.
Rebated doors:
Rebated doors are face mounted on flag hinges with the option of a face mounted door closer. The system benefits from an increased opening angle of 180° and is ideal for more exposed locations with the extra weather protection offered by the additional rebate.
Auto swing/ auto sliding:
For main commercial entrance doors, Shopline is designed to provide automated swing opening using electrical sensors and actuators to operate swinging, sliding, and telescopic doors. Shopline offers profiles with a range of suited reinforced sections developed to securely mount a range of door automated actuators from different hardware suppliers, including Besam.
Features and benefits:
Applications:
Swing, hinged and automatic commercial entrance doors, specifically developed for heavy duty applications such as schools and hospitals.
Material | Aluminium alloy 6063 T6 |
Uniclass 2015 | |
CAWS | L20/280 Doors L20/45 Doors |
Product Reference | Shopline Doors |
Standard | Consult manufacturer |
Configuration | Double leaf, double actionDouble leaf, single actionSingle leaf, double actionSingle leaf, single action |
Size | As drawingInsert reference. As scheduleInsert reference. |
Product performance | - |
Fire performance | - |
Fire integrity | Manufacturer's standard |
Fire insulation | Manufacturer's standard |
Radiation | Manufacturer's standard |
Smoke control | Manufacturer's standard |
Reaction to fire | Manufacturer's standard |
Acoustic performance rating | Manufacturer's standard |
Strength and durability | Manufacturer's standard |
Thermal | Manufacturer's standard |
Intruder resistance | - |
Bullet resistance | - |
Frame | - |
FrameMaterial | Aluminium |
Threshold | LowStandard |
Perimeter seals or inserts | Weatherseal |
Frame finish | - |
Coating | AnodizedPolyester powder organic coating |
Texture | GlossMatt |
Colour | Insert colour requirement. |
Film thickness (minimum) | Manufacturer's standard |
Installation fasteners | Mechanical corner brackets |
Frame accessories | Insert requirements. |
Door leaf | - |
Thickness | Dependent on glazing |
Core | Glazing |
Material | Aluminium |
Lippings | Manufacturer's standard |
Perimeter seals | Weatherseal |
Door leaf glazing | - |
Type | Insert requirement, consult manufacturer for information. |
Beading | - |
Type | Manufacturer's standard |
Material | Manufacturer's standard |
Fixing | Manufacturer's standard |
Finish | - |
Coating | AnodizedPolyester powder organic coating |
Texture | GlossMatt |
External colour | Insert colour requirement. |
Internal colour | Insert colour requirement. |
Film thickness (minimum) | Manufacturer's standard |
Door accessories | Insert requirements. |
Hardware | Manufacturer's standard |
Accessories | Insert requirements. |
Operation | AutomaticManual |
Standard product features | Material: Aluminium alloy 6063 T6. Maximum sash weight: 110 kg. |
Product Options | Doorset size: Sash available up to 1100 x 2500 mm (w x h). |
