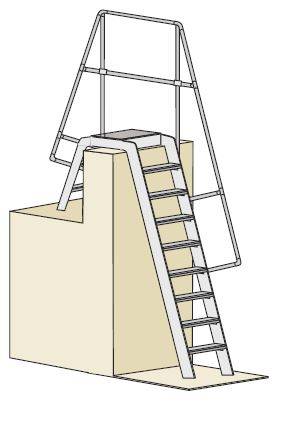

Double ship ladder
An aluminium companion way ladder, designed in accordance with BS 5395-3 and BS EN 14122-2.
A single line handrail must be fitted to each side of the ships type ladder, and must be continuous when used with the platform top handrail.
Size | Consult manufacturer and insert requirements. |
Color | Natural, Polyester powder coated (PC/RAL colours available) |
Features | Top walk through with handrail, Chequer plate treads |
Material | Aluminium |
WarrantyDescription | 5 years |
Uniclass 2015 | |
CAWS | L30/41 Loft ladders L30/421 Loft ladders |
Product Reference | SHP Ships Type Ladder |
Size | Consult manufacturer and insert requirements. |
Colour/ Finish | Not requiredPolyester powder coatingConsult manufacturer for available colours and insert requirements. |
Landings | Not requiredSHP/ RP Midway landing platformRequired for ladders over 3.0 m. SHP/ UO Up and overIdeal for access over pipes. SHP/ DL Double ladderDouble sided companionway ladder. |
Standard product features | Treads:
Stringers: Preformed stringers set 450–550 mm apart. Rake: Ladders are designed for use at a rake of 65°–75° only. Warranty: Ten-year manufacturer warranty. Proprietary components will carry a one-year return to factory guarantee. |
Platform | Compatible | Version | Certified to |
---|---|---|---|
![]() | IFC2X3 | 3 | 1.3 |
![]() | Revit 2016 | 4 | 2.0 |
