Sheer CFX - Power Sockets

Application

Internal use only.

Description

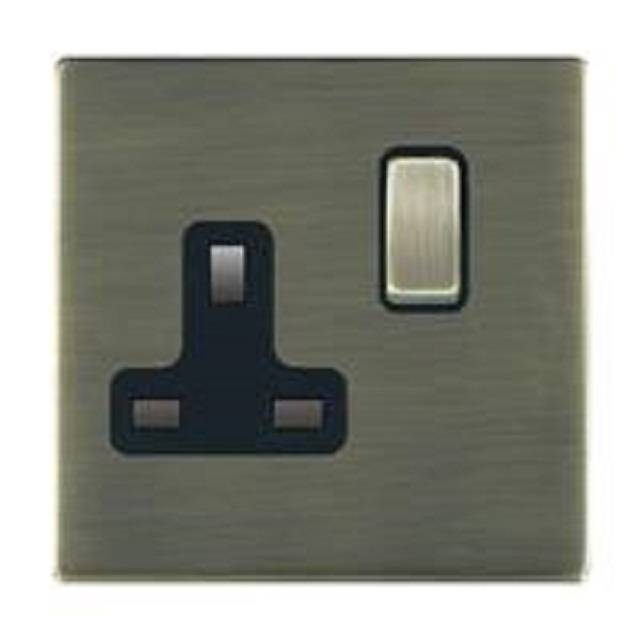

Flat and elegant power sockets with firm edges. The faceplates are firmly held in place to the back frame with a patented four-point clipping system, concealing the fixings for a seamless finish.


Features and benefits:

  • Superb finishes, including four shades of bronze.
  • Choice of complementary switch insert finishes.
  • Concealed fixing (CFX).
  • Painted plates available.
  • Grid and EuroFix options also available.
  • Ultra-fast USB charging technology.

General information

Color

Black

White

Gold

Silver

Finish

14 finishes available.

Polished

Matt

Satin

Primed

Material

Cast brass

Shape

Square

Rectangular

Size

Dependent on arrangement.

86 x 86 x 4.5 mm

145 x 86 x 4.5 mm

Uniclass 2015

Pr_65_72_97_84 Standard socket outletsPrimary

CAWS

V90/430 Electrical accessories

V90/430 Electrical accessories

Product range

Sheer CFX

Specification data - Standard socket outlets Enhanced data

Standard

To BS 546, BS 1363-2, BS 5733.

Arrangement

Double gang.

86 x 145 x 1.5 mm + 3 mm gasket.

Single gang.

86 x 86 x 1.5 mm + 3 mm gasket.

Control

-

Type

Switched socket.

Switched socket with USB.

Unswitched socket.

Plate

-

Material

Cast brass.

Finish

Antique brass.

Classic and sophisticated with a subtle aged appearance.

Black nickel.

A deep black finish with a subtle sheen.

Bright chrome.

A popular, highly polished and versatile finish.

Connaught bronze.

Copper bronze.

Etrium bronze.

Gloss white.

Matt black.

Polished brass.

A popular, highly polished and versatile finish.

Primed white.

Polished nickel.

Richmond bronze.

Satin brass.

A softer yet equally sophisticated alternative to polished brass.

Satin steel.

Insert colour

Antique Brass.

Classic and sophisticated with a subtle aged appearance, availability dependent on arrangement, consult manufacturer's literature for information.

Black nickel.

A deep black finish with a subtle sheen, availability dependent on arrangement, consult manufacturer's literature for information.

Bright chrome.

A popular, highly polished and versatile finish, availability dependent on arrangement, consult manufacturer's literature for information.

Polished brass.

A popular, highly polished and versatile finish, availability dependent on arrangement, consult manufacturer's literature for information.

Satin brass.

A softer yet equally sophisticated alternative to polished brass, availability dependent on arrangement, consult manufacturer's literature for information.

Satin steel.

Availability dependent on arrangement, consult manufacturer's literature for information.

Black.

Availability dependent on arrangement, consult manufacturer's literature for information.

White.

Availability dependent on arrangement, consult manufacturer's literature for information.

Rating

2 A.

Not available with double gang, switched socket or switched socket with USB.

5 A.

Not available with double gang, switched socket or switched socket with USB.

13 A.

Not available with switched socket with USB.

13 A, USB 1 x 2.1 A.

For single gang switched socket with USB only.

13 A, USB 1 x 2.4 A Type A + 1 x 2.4 A Type C.

For double gang switched socket with USB only.

Show more

Trim

Not applicable.

For unswitched socket.

Black.

Availability dependent on plate finish, consult manufacturers literature for information.

White.

Availability dependent on plate finish, consult manufacturers literature for information.
