Application

Creates a superior ready to tile floor in a shower area or in a wet room. Suitable for:

  • En-suite and designer bathrooms.
  • Refurbishments and new build projects.
  • Floor and wall structures: Designed for concrete, easy adaptation to board/ joist installations.

Description

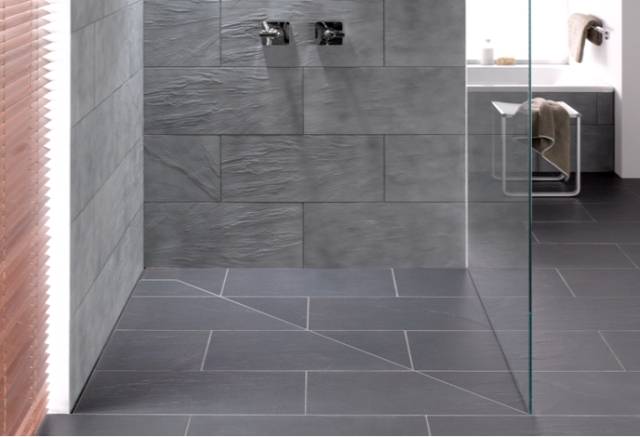

SHADOW showerbed is pre-formed with shallow gradients leading to concealed channels on adjoining sides. Slim ‘slot’ outlets built into the bed provide an ultra-discrete gap between floor and wall. Waste water disappears into channels hidden below the tiles and is taken away to a high volume trap concealed below a removable tiled panel.

Package includes:

  • Supplied complete with factory fitted perimeter gasket.
  • Waste and trap assembly: Horizontal or vertical.
  • Stainless steel tile support for two sides.
  • Adjustable and removable tile retainer for waste and trap.
  • Channel sealing blocks and adhesive.
  • Converter 50 mm to 2 inch ABS solvent weld.

Features and benefits:

  • Hard compressed polymer showerbed with a flat underside and flat gradient at 1.5% leading to outlet slots along two adjoining sides.
  • Full length integrated channels concealed below close fitting tiles showing 7 mm ‘slot’ outlets.
  • Removable trap cover with floor tile insert for easy access to high volume horizontal waste and trap.
  • Perimeter waterproof gasket built into structure, to seal into surrounding floor.
  • Can be cut down to 500 x 500 mm on site.

Applications:

Creates a superior ready to tile floor in a shower area or in a wet room. Suitable for:

  • En-suite and designer bathrooms.
  • Refurbishments and new build projects.
  • Floor and wall structures: Designed for concrete, easy adaptation to board/ joist installations.

General information
Size

1200 x 1200 mm

Standard, can to cut down to 500 x 500 mm on-site.

2400 x 2400 mm

Optional, multi-combinations when building multi SHADOW units into a single installation, giving a potential 160 L/ min capacity.

Uniclass 2015
Pr_40_20_06_84 Shower traysPrimary
Specification data - Shower trays
Product Reference

Shadow preformed showerbed

Type

SHADOW Pre-formed Showerbed, 12mm tiles, horizontal trap BT00100570

SHADOW Pre-formed Showerbed, 12mm tiles, vertical trap BT00100571

SHADOW Pre-formed Showerbed, 22mm tiles, horizontal trap BT00100572

SHADOW Pre-formed Showerbed, 22mm tiles, vertical trap BT00100573

SHADOW Pre-formed Showerbed Extension Piece BT00100590

Optional, 1200 x 600 mm.

SHADOW Installation Kit BT00100591

Complete installation kit for SHADOW shower tray system, including sealing components.

Size

1200 x 1200 mm

Standard, can to cut down to 500 x 500 mm on-site.

2400 x 2400 mm

Optional, multi-combinations when building multi SHADOW units into a single installation, giving a potential 160 L/ min capacity.

Standard product features

Technical characteristics:

  • Profile: 65 mm showerbed. 130 mm overall support including trap.
  • Gradient: Twin 1.5%, leading from diagonal peak to two sides.
  • Waste and trap: Polypropylene moulded DIN 50 mm.
  • Showerbed material: Waterproof high pressure and temperature hard polymer.
  • Waterproofing: Standard factory finish - KMK.
  • Converting adaptor: DIN 50 mm compression to 2 inch, ABS solvent weld.
