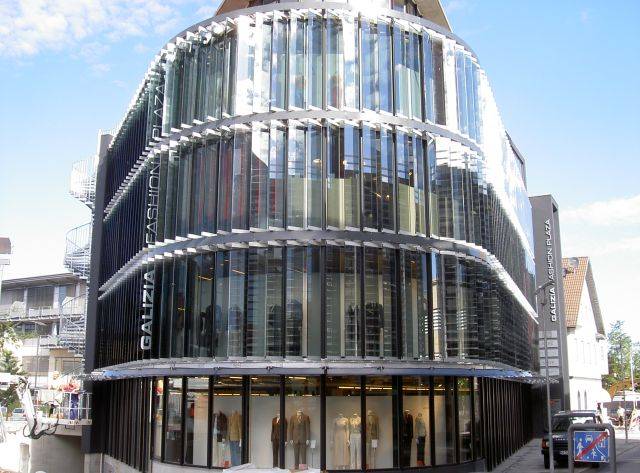

Shadoglass LS-5 is a centre pivoted system which provides maximum transparency. An aluminium clamping system is fixed along to the short edges of the louvre blades. Its carrier system is suitable for use with metal, fabric, wood and translucent acrylic louvres.

Shadoglass can be either fixed or moveable, and positioned either horizontally or vertically.

A Shadoglass shading system can reduce solar heat gain, lower air conditioning running costs, and lessen glare whilst maximizing the use of natural daylight. Shadoglass louvres are available in various colours, surface finishes and coatings to meet specific design requirements, allowing the quantity of heat and light entering the building to be controlled.

Features and benefits:

  • Shadoglass is entirely customisable.
  • Reduces energy consumption, with high solar shading performance and reduction of glare to the internal space. Depending on the chosen type of glass, frit or film, the desired transmission of light and/or heat radiation can be accurately achieved for every specific application.
  • Movable option: can be operated by linear actuators that have the capability to operate complete facades.
  • Of robust, corrosion resistant materials.
  • Can be provided in modular pre-assembled form to reduce installation costs.

General information
Size

As drawing ___

As schedule ___

Uniclass 2015
Louvre screen systems (Ss_25_50_45_45)Primary
Specification data - Louvre screen systems
Product Reference

Shadoglass LS-5 glass louvred solar shading louvre system

Type

In breakdown

Modular

Arrangement

Fixed

Moveable

Size

As drawing ___

As schedule ___

Louvre blade width

Insert requirements.

Glass blades

Insert requirements.

Finishes -
Side support arms

Anodised

Mill finish

Polyester powder coated, colour

Insert requirements.

Mounting brackets

Anodised

Mill finish

Polyester powder coated, colour

Insert requirements.

Support struts

Anodised

Mill finish

Polyester powder coated, colour

Insert requirements.

Controls

ICS 4-Link

Soltronic

Manual

Fixing

Into brickwork

Into concrete

Into curtain walling

Into steelwork

Product Options

Size:

  • Blade span: For glass, up to 1800 mm long can be achieved without any additional supporting structure.
  • Blade width: For glass, up to 600 mm.

Materials:

  • Louvre blades: for glass, consider type, colour, thickness, polish, frit, tint. Colt can advise.
  • Side support arms, mounting brackets and support struts: Aluminium. Fasteners are stainless steel.
  • Aluminium components can be supplied with mill finish or polyester powder coated. Consult with Colt for availability of colours and to obtain samples.

Controls

  • ICS 4-Link: Provides accurate solar control and is particularly suited to larger projects. The system continually calculates the position of the sun and together with internal temperature and lighting sensors, controls the position of the louvres. Remote operation is also available via an internal modem interface.
  • Soltronic: A simplified version of ICS 4-Link, suitable for small to medium sized projects.

Fixing:

Consult with Colt for recommendations and details. Shadoglass can be provided in modular pre-assembled form to reduce time on site.
