Shadoglass LS-1 glass louvred solar shading system

Colt International Ltd

An external fixed or moveable glass louvred solar shading system for wide spans, designed to reduce heat gains and glare whilst maximising the use of natural daylight.

Jump to:
+44 (0)23 9245 1111 www.coltinfo.co.uk
Description

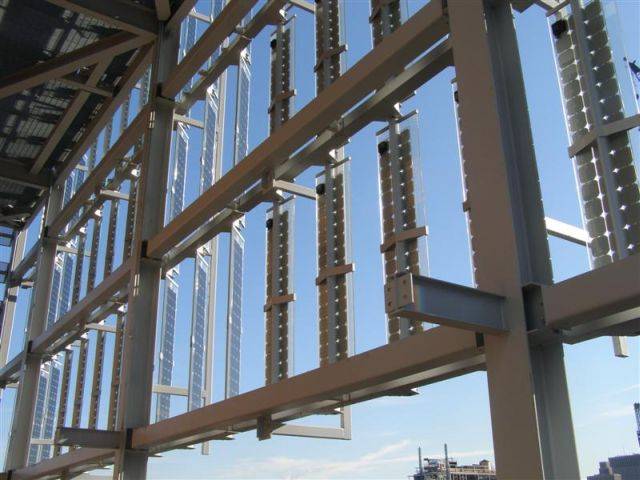

Shadoglass LS-1 is centrally pivoted, intended for wide spans, and incorporates a central aluminium torsion tube incorporating the louvre brackets along the length of the louvre for additional support. Its carrier system is suited for use with glass, metal, fabric, wood and translucent acrylic louvres, as well as photovoltaic cells. Shadoglass can be either fixed or moveable, and positioned either horizontally or vertically.

A Shadoglass shading system can reduce solar heat gain, lower air conditioning running costs, and lessen glare whilst maximising the use of natural daylight. Shadoglass louvres are available in various colours, surface finishes and coatings to meet specific design requirements, allowing the quantity of heat and light entering the building to be controlled.

Features and benefits:

  • Shadoglass is entirely customisable.
  • Reduces energy consumption, with high solar shading performance and reduction of glare to the internal space. Depending on the chosen type of glass, frit or film, the desired transmission of light and/or heat radiation can be accurately achieved for every specific application.
  • Movable option: can be operated by linear actuators that have the capability to operate complete facades.
  • Of robust, corrosion resistant materials.
  • Can be provided in modular pre-assembled form to reduce installation costs.

General information
Size

As drawing ___

As schedule ___

Uniclass 2015
Louvre screen systems (Ss_25_50_45_45)Primary
Specification data - Louvre screen systems
Product Reference

Shadoglass LS-1 glass louvred solar shading system

Type

In breakdown

Modular

Arrangement

Fixed

Moveable

Size

As drawing ___

As schedule ___

Louvre blade width

Insert requirements.

Louvre support system -
Type

Central Torsion Tube Type LS1-55

Central Torsion Tube Type LS1-65A

Central Torsion Tube Type LS1-65B

Glass blades

Insert requirements.

Finishes -
Side support arms

Anodised

Mill finish

Polyester powder coated - colour

Insert requirements.

Mounting brackets

Anodised

Mill finish

Polyester powder coated - colour

Insert requirements.

Support struts

Anodised

Mill finish

Polyester powder coated - colour ___

Insert requirements.

Controls

ICS 4-Link

Soltronic

Manual

Fixing

Into brickwork

Into concrete

Into curtain walling

Into steelwork

Product Options

General:

LS-1 systems all have central torsion tube support systems.

Glass blade width:

300-600 mm.

Type LS1-55:

  • Glass louvre width: 350–500 mm.
  • Glass louvre length: max. 2500 mm.
  • Vertical supports at 2500 mm maximum centres.
  • Angle of rotation: 0–90°.

Type LS1-65A:

  • Glass louvre width: 350–550 mm.
  • Glass louvre length: max. 3300 mm.
  • Vertical supports at 3300 mm maximum centres.
  • Angle of rotation: 0–90°.

Type LS1-65B:

  • Glass louvre width: 420–600 mm.
  • Glass louvre length: max. 3000 mm.
  • Vertical supports at 3300 mm maximum centres.
  • Angle of rotation: 0–90°.

Materials:

  • For glass louvre blades, consider their type, interlayer, colour, thickness, polish, frit, tint, edge treatment. Colt can advise on these aspects.
  • Side support arms, mounting brackets and support struts: Mill finish or polyester powder coated aluminium. Consult Colt for availability of colours and to obtain samples.
  • Fasteners: Stainless steel.

Controls

  • ICS 4-Link: Provides accurate solar control and is particularly suited to larger projects. The system continually calculates the position of the sun and together with internal temperature and lighting sensors, controls the position of the louvres. Remote operation is also available via an internal modem interface.
  • Soltronic: A simplified version of ICS 4-Link, suitable for small to medium sized projects.

Fixing:

Consult with Colt for recommendations and details. Shadoglass can be provided in modular pre-assembled form to reduce time on site.

Structural considerations:

  • All spans subject to wind load calculations. Deflection of the louvre is limited to span / 100. Deflection of supporting structure is limited to span / 100.
  • Accommodation of thermal movement to be taken into consideration.
  • Structural tests of glass louvres may be necessary.
