ShadeBox®
Verified by manufacturer 4 months ago

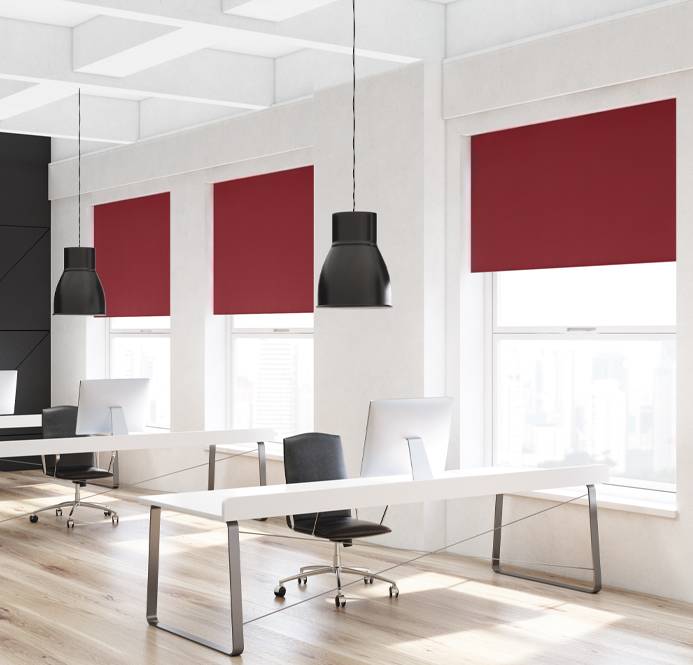

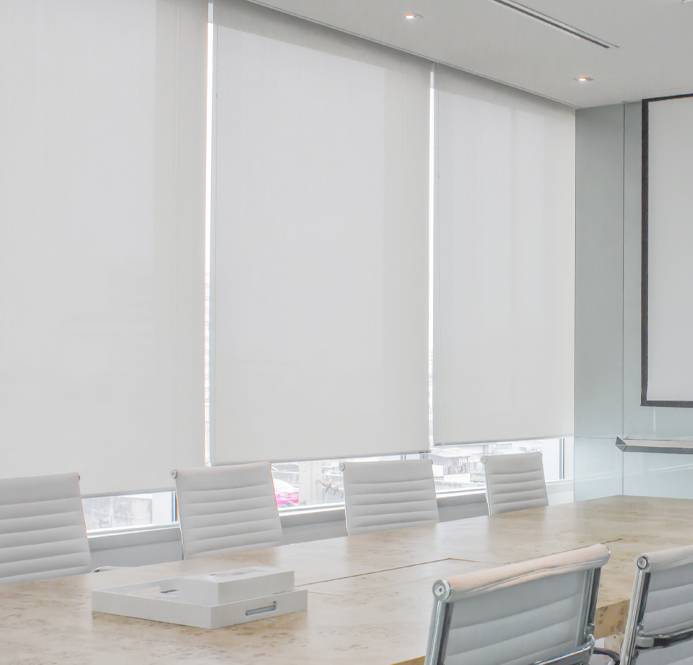

Motorized blinds
Motorized blinds
Recessed box system to conceal roller blinds within spacings between ceiling sections of a suspended ceiling.
Description
PART NO *SHADEBOX
The YewdaleDefiant® ShadeBox® is a recessed box system to conceal roller blinds within spacings between ceiling sections of a suspended ceiling.
Features and benefits:
- Supplied in component form only with an aluminium powder coated white box as standard.
- Available up to 5 m in length, the box is 115 x 115 mm.
- Components include an aluminium box cover, plain box section and endplates.
- The box is designed for top fixing into a ceiling section of a suspended ceiling and transitional plates accommodate either.
General information
Color | White |
Finish | Powder-coated |
Material | Aluminium |
Shape | Square |
Length | 5000 mm |
Width | 115 mm |
Height | 115 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | N10/70 Blinds N10/240 Blinds |
Specification data - Roller blinds
Dimensions (minimum width x depth) | 115 x 115 mm box. |
Tube | |
Diameter | 53 mm/70 mm.Guidance for specification option: The transitional plates accommodate a 53 mm/70 mm grooved aluminium barrel for electric operation. |
Tube covers | |
Material | Powder coated extruded aluminium. |
Colour | White.Guidance for specification option: As standard. RAL.Guidance for specification option: Available in any RAL colour, insert requirements. |
Operation | Motorized. |
Accessories | None.False ceiling adaptor.Guidance for specification option: Allows the box to be fitted within false ceilings. |
Box section | Plain section. Dry lining section. Guidance for specification option: Allows a tradesperson to dryline or plaster right up to the box. |
Options | Small box cover. Large box cover. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
YewdaleDefiant® ShadeBox® Datasheet
