SG Axile Clarity Frameless Door on Quad Pivots

Name: SG Axile Clarity Frameless Door on Quad Pivots
Brand: Optima
SKU: 8cnSu9jmmmZmYyWpnMB6es

Verified by manufacturer 6 months ago

Optima

Third party certifications:

BM Trada
Certificate type

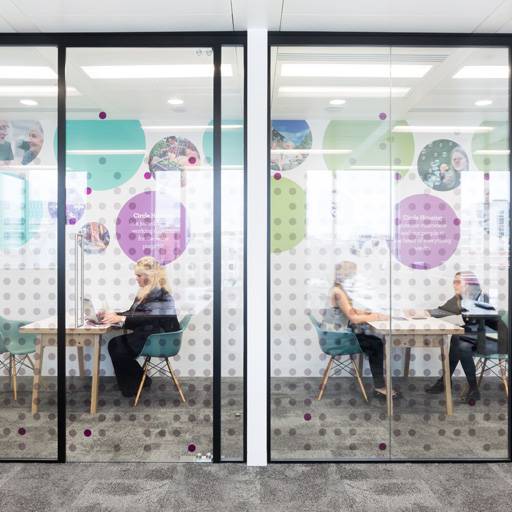

Toughened glass door leaf on Quad pivots with a slim line Microflush aluminium door frame.

Jump to:

+44 (0)1494 492725 Website

Application

Suitable for office buildings and workplace environments.

Description

Axile Clarity is a 10 or 12 mm-thick, single-glazed, toughened glass leaf (thickness determined by height requirement) with a slimline Microflush aluminium door frame.

Features and benefits:

Incorporates integral acoustic seals.
With glazing rebate for seamless integration with Optima’s single-glazed or double-glazed partitioning systems.
Elegant frameless design.
Laboratory tested for acoustic performance in a UKAS accredited laboratory up to 33 dB (Rw).
Part M-compliant clear opening included.

Consult with manufacturer for further information.

General information

Finish	Glazed
Material	Glass Aluminium
Width	Bespoke
Height	Bespoke
Warranty description	Ten year Guidance for specification option: See Warranty Policy literature for more information.

Uniclass	Ss_25_30_20_32 Frameless glass door systemsPrimary
CAWS	L20/480 Doorsets L20/460 Frameless glass doors L20/55 Doorsets

Product range	Door Leaves

Specification data - Frameless glass door systems

Door leaf	Toughened safety glass.
Hardware	Guidance for specification option: Insert requirements; contact manufacturer for more information.
System accessories	- Manufacturer guidance Insert requirements; contact manufacturer for more information.

Configuration	As schedule. As drawing. Guidance for specification option: Insert drawing reference number.
Format	Single leaf, double action.
Door leaf size	Guidance for specification option: Available up to 3000 mm in height. Leaf only: 992 mm. Overall frame width: 1054–1074 mm.
Thickness	10 mm. 12 mm. Manufacturer guidance (thickness determined by height requirement):
Glazing	Single glazed, heat-soaked toughened glass (to BS EN 14179).
Operation	Stainless steel Quad pivots.
AcousticRating	32 dB. Guidance for specification option: (when used within a Microflush frame.)

Sustainability data

Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	2.39 kg·CO₂e/kg Self declared Guidance for specification option: See Environmental Product Declaration literature for detailed LCA data.
