SFF Frameless Window - Flush Aluminum Window System
Verified by manufacturer 2 months ago
Top Hung
Top Hung
UKAS
Certificate type

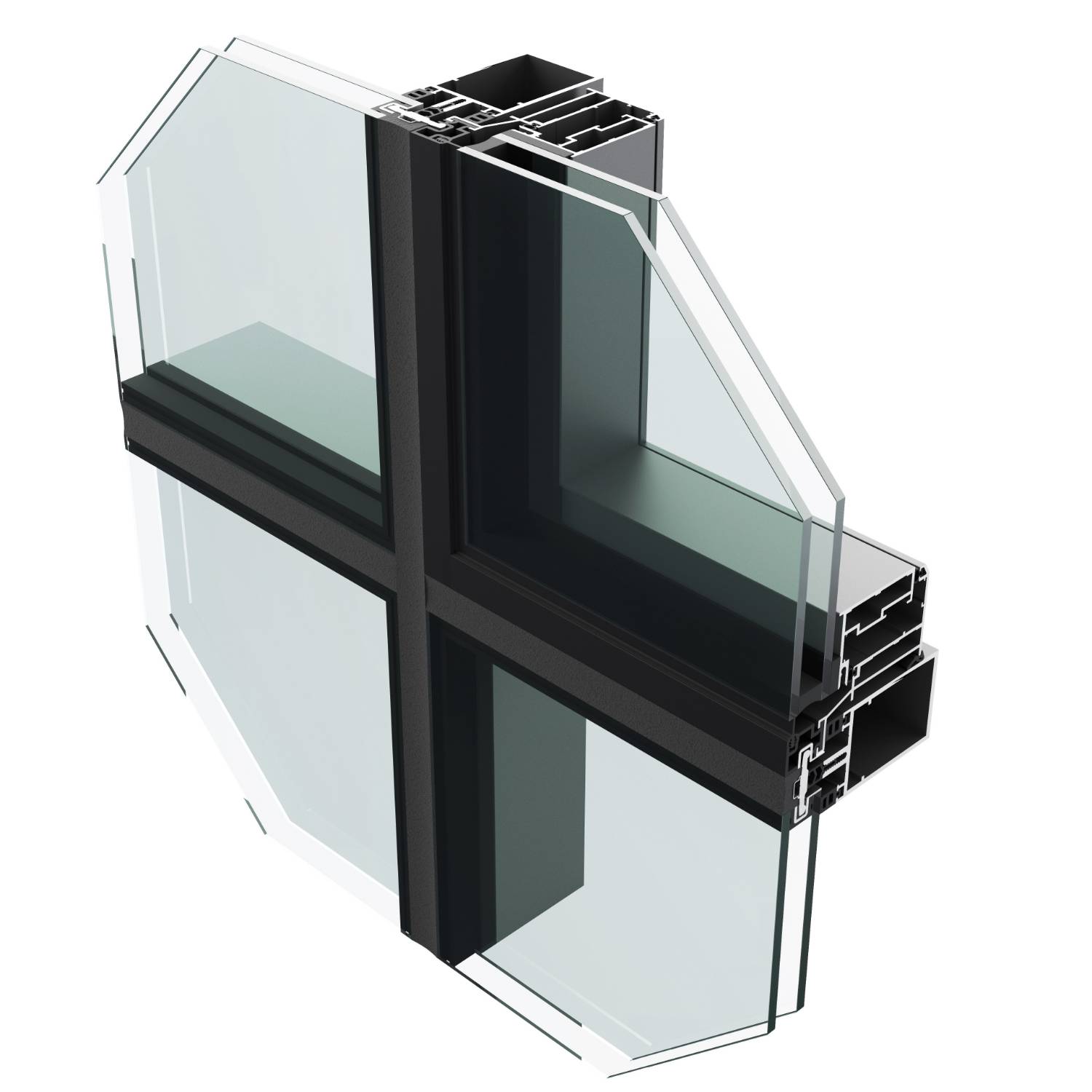

SFF is a flush aluminum window system for use with curtain walling.
Application
Suitable for use in any curtain walling applications.
Description
Flush aluminum window system for use with curtain walling.
Size limitations:
Top hung:
- Vent height: 442–1500 mm.
- Vent width: 442–1500 mm.
Side hung:
- Vent height: 442–1500 mm.
- Vent width: 442–836 mm.
Parallel:
- Vent height: 750–200*mm.
- Vent width: 400–2000*mm.
- Vent weight: 200 kg maximum**.
*For vent widths above 1200 mm consideration must be given to operation.
** Dependent on hinge configuration.
Features and benefits:
- Flush aluminum window system for use with curtain walling.
- Available as anodized to BS 3897:1991.
- Available as powder-coated to BS EN 12206-1: 2004 Part 1.
- Available as side hung, top hung or parallel.
General information
Finish | Anodized Guidance for specification option: To BS3897:1991 to a minimum of 25microns (AA25), supplied in either satin or polished finish in a limited range of colours. Powder-coated Guidance for specification option: To BS EN 12206-1: 2004 Part 1 painted in house. Surface finish at 40 microns standard, or enhanced to 60 microns for marine environments. Available in a wide range of RAL finishes. |
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/25 Aluminium windows L10/330 Aluminium windows H11/110 Curtain walling |
Specification data - Aluminium window units
Dimensions and configurations | Guidance for specification option: Insert requirements:
|
Product performance | |
Weather performance | |
Air permeability | 600 Pa (Class 4).Guidance for specification option: In accordance with CWCT Sequence B and BS EN 13050. |
Watertightness | 600 Pa.Guidance for specification option: In accordance with CWCT Sequence B. 900 Pa.Guidance for specification option: In accordance with BS EN 13050. |
Resistance to wind load | 2400 Pa.Guidance for specification option: In accordance with CWCT Sequence B and BS EN 13050. |
Frame | |
Profile | Manufacturer's standard. |
Finish as delivered | |
Coating | Anodized to BS EN 3987.Guidance for specification option: To BS3897:1991 to a minimum of 25 μm (AA25), supplied in either satin or polished finish in a limited range of colours. Powder coating to BS EN 12206-1.Guidance for specification option: To BS EN 12206-1: 2004 Part 1 painted in house. Surface finish at 40 microns standard, or enhanced to 60 microns for marine environments. Available in a wide range of RAL finishes. |
Colour | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Film thickness (minimum) | 25 micrometres.Guidance for specification option: Anodized finish. 40 micrometres.Guidance for specification option: Powder coated finish (standard). 60 micrometres.Guidance for specification option: Powder coated finish. For marine environments. |
Glazing or infill | |
Requirements | Guidance for specification option: Consult manufacturer for details and insert requirements. |
Hardware | Manufacturer's standard. |
Fixing features | To curtain walling only.Guidance for specification option: The SFF Window can only be installed within Curtain Walling. |
Configuration | Top hung. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 100 |
Third party certifications
UKAS
ISO 45001
UKAS
ISO 14001
UKAS
ISO 9001
