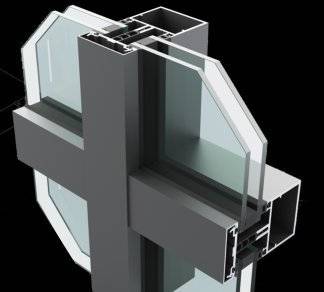

SF62 Silicone Glazed Curtain Wall System

Description

The SF62 Aluminium Curtain Wall System is very similar in design to the popular SF52 system, but has a wider 62mm box which allows more flexibility in accommodating structural movement.

This makes it ideal for ultra-high-rise projects and those where structural movement is a challenge on the project.

The increased rebate size means that it is possible to provide either additional clearance between the section and infill, so that the system is able to allow the glass to move more if there is structural movement, or greater edge cover for issues such as guarding.

At the same time, SF62 offers enhanced thermal performance which exceeds current building regulations. The system has been rigorously tested for safety, weather, impact, and transom loads up to 750kg giving you peace of mind for every application.

General information

Features

The system is mullion drained and can be fully capped, fully silicone glazed (using the SAS toggles) or a combination of the two using either horizontal or vertical capping, all internal gaskets are designed to mate with injection moulded corner pieces which are sealed at joints, large range of transom & mullion sizes with reinforcing sleeves, steel and back boxes available to strengthen mullions and achieve longer spans, improved thermal break to accommodate for movement and allow for variations in glass tolerance, punch tools and jigs are available for easy manufacture

Material

Aluminium Alloy 6063.T6

Size

62 x 142 mm

62 x 150 mm

Uniclass 2015

Ss_25_10_20_85 Stick curtain walling systemsPrimary

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
