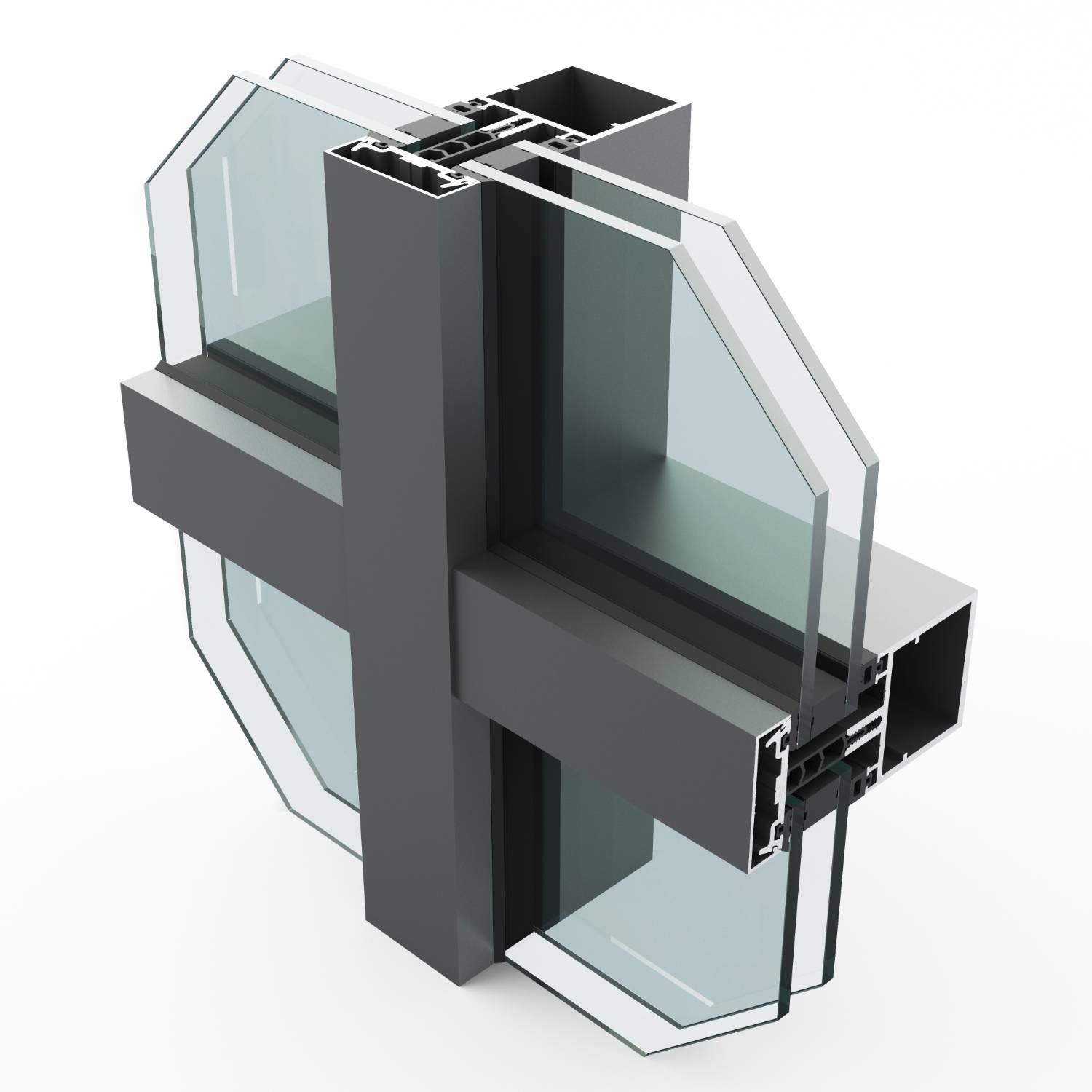

SF52 60 mm Curtain Wall System

Name: SF52 60 mm Curtain Wall System
Brand: dVSDoRHE7zaprhEbgnigyf
SKU: 5rS4Z6ui8HbUGFR4uD3ACF

Senior Architectural Systems Ltd

Curtain Wall system with enhanced thermal performance.

Jump to:

+44 (0)1709 772600 www.seniorarchitectural.co.uk

Description

A curtain wall system which has been designed to enhance thermal performance meaning the system can exceed current building regulations. It is a stick type front loaded system using spring pins and a specially designed cleat which allows square cutting throughout.

The system can be either zone drained (via conventional pressure plate drainage or using a specially designed spout system) or it can be mullion drained.

The zone drained system can be assembled capped, uncapped (using the SAS toggles) or combination of the two.

Section sizes vary from 50–250 mm (50, 80, 100, 125, 150, 175, 200, 225 and 250 mm). Specific profiles can be incorporated offering design flexibility.

General information

Features	Deeper glazing rebate can accommodate greater levels of building movement
Material	Aluminium alloy
Size	50 x 60 mm
Uniclass 2015	Ss_25_10_20_85 Stick curtain walling systemsPrimary
CAWS	H11/110 Curtain walling

Specification data - Stick curtain walling systems

Product Reference	SF52 Curtain Wall System
Internal framing member	-
Type	SF050 SF080 SF100 SF125 SF150 SF175 SF200 SF225 SF250 As drawing Insert details.
Finish	Anodized Insert colour requirements. Mill finish Polyester powder coated, RAL Insert colour requirements. Standard RAL range available.
Type	-
Vertical	SMR998 SMR997 SCW002 SCW008 As drawing Insert details.
Horizontal	SMR997 SCW055 SCW003 SCW007 As drawing Insert details.
Finish	Anodized Insert colour requirements. Mill finish Polyester powder coated, RAL Insert colour requirements. Standard RAL range available.
Glazing	Insulating glass units Insert required thickness.

Standard product features

Material:

Aluminium alloy 6060, 6063 or 6083 (for improved strength). T6 to BS EN 755-9 or BS EN 12020-2.

Thermal breaks are extruded to BS 7619.

Gaskets are manufactured in accordance with BS 3734.

Performance:

Tested to CWCT specification sequence B and in accordance with BS EN 13830:

Air permeability: 600 Pa.

Water tightness: 600 Pa.

Wind resistance: 2400 Pa.

Glazing:

22–50 mm thick glazing available.

Consult with Senior Aluminium Systems for recommendations and details. All glazing complies with BS 6262 and ground floor glazing will comply with Secure By Design (inner pane to be a minimum of 6.8 mm laminated).

Mullions:

Mullion size dependent on wind load, mullion centres and tie back positions. Transom size subject to span and glass weight and in-conjunction with architectural design.

Incorporated components:

Aluminium/ co extruded plastic pressure plate, fixed to mullions and transoms at a maximum of 25 mm from ends and at a maximum of 150 centres.

Product Options

Colour/ Finish:

Typically available in three finishes:

Polyester powder coating to BS EN 12206-1. Painted in-house, the surface finish is 40 microns as standard, or enhanced to 60 microns for marine environments.
