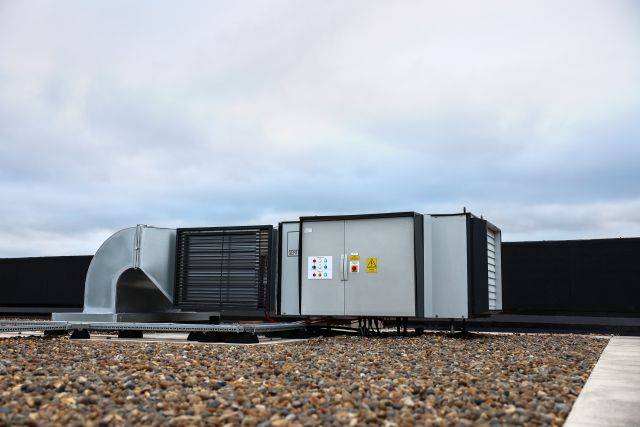

Sertus Roof Mechanical Pod - RMP-R

Modular smoke extraction pod for residential use on the roof of buildings.

Features and benefits:

• Manufactured and certified to BS EN 12101-3: Fan Assemblies.

• Connection duct certified to BS EN 12101-7: 2011 Smoke Ducts.

• Pre-fabricated, pre-wired and pre-commissioned - ready for a single lift to the rooftop. Certified lifting eyes are included for single crane lift to roof for easy installation - can be removed after installation if required.

• Available in a range of standard guaranteed extract rates.

• Supplied within a powder-coated panel enclosure.

• Supplied assembled with adjustable mounting feet, primary and secondary attenuators, duty and standby fans, anti-vibration mounts and back draft damper.

• The integrated control panel contains an automatic transfer switch (ATS) for three phase primary and secondary supply, duty and standby fan change over switch, duty and standby invertors.

• The extract rates may be controlled in environmental mode as a means of cooling the building by thermostat sensors with a variable extract rate, and in automatic fire mode via smoke detectors for escape mode.

• Backdraft damper and bird mesh protect the system when in standby mode.

• Adjustable height, large flat mounting feet help to provide stable support with no damage to the roof finish.

• Anti-vibration mounts ensure smooth running of the fan with no stress to frame the structure.

• Noise attenuator reduces sound pollution for adjoining properties or internal noise for tenants (or both).

Applications:

Designed for residential use, in particular high-rise apartment buildings. Suitable for de-pressurization smoke extraction systems.
