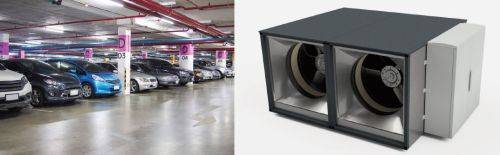

Sertus Basement Mechanical Pod - BMP-C

Modular smoke extraction pod for commercial use within basement car parks and tunnels.

Features and benefits:

• Manufactured and certified to BS EN 12101-3: Fan Assemblies.

• Connection duct certified to BS EN 12101-7: 2011: Smoke Ducts.

• Control panel certified to BS EN 12101-10: 2005: Power Supplies.

• Pre-fabricated, pre-wired and pre-commissioned - ready for installation.

• Available in a range of standard guaranteed extract rates.

• Supplied assembled with adjustable mounting connections, primary and secondary attenuators, duty and standby fans, anti-vibration mounts and back draft damper.

• The integrated control panel contains an automatic transfer switch (ATS) for three phase primary and secondary supply, duty and standby fan change over switch, duty and standby invertors.

• Environmental extract to provide dilution and removal of harmful fumes.

• Control system includes Carbon Monoxide (CO) and Nitrogen Oxide (NOx) sensors, firefighters override switch and smoke and heat detection.

• Can be used in conjunction with with BAF-C and BCF-C induction fans - consult manufacturer for details.

• Anti-vibration mounts ensure smooth running of the fan with no stress to frame the structure.

Induction and extract fans are sized to provide ten air changes per hour for smoke control, and exposure to no more than 30 parts of Carbon Monoxide over an eight hour period for environmental control.

Applications:

Basements including carparks and tunnels. Smoke control in car parks creates smoke free zones for escape and firefighting, limiting smoke temperature and structural damage and preventing spread of the fire to other floors.
