Description

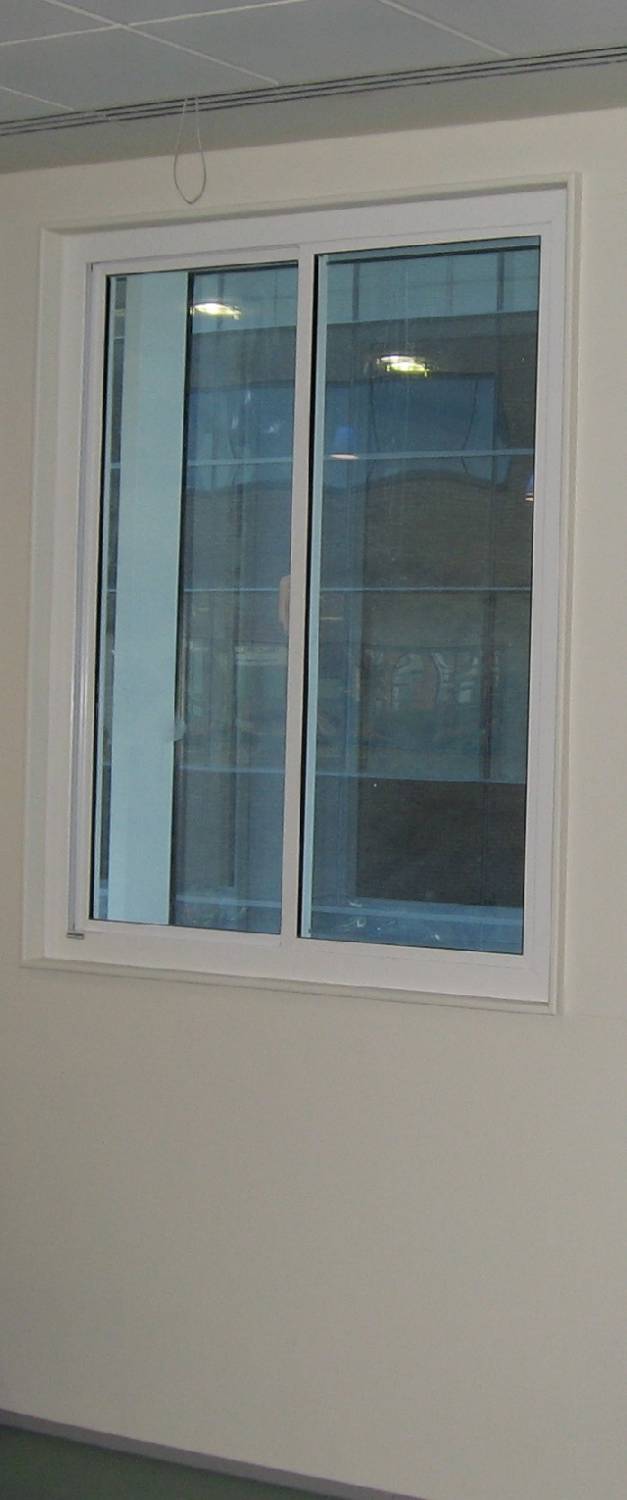

Security horizontal sliding (HS) framing system available in two or three pane options. Provides high levels of blast mitigation and intruder resistance, with equivalence to strong bars and grilles.

The sashes slide within the frames, so do not interfere with blinds or curtains and provide access to the outer window. Large ribbon windows can be accommodated by linking units with a colour-matched mullion/ transom section. Sashes should be removed by a specialist when cleaning and maintenance is required.

Suitable for extreme security situations where thick laminated and polycarbonate glass is required.

Will reduce heat loss by up to 47% using standard glass compositions and up to 65% with a thermally efficient glass (low emissivity). High performance brush seals will almost eliminate drafts and ensure much greater comfort near the window.

Performance:

  • Acoustic: Tested in accordance with BS EN ISO 140-3: 1995 for acoustic performance: between 41 and 48 dB can be achieved.
  • Thermal: U-values as low as 1.84 W/m²K (timber primary window and low-E glass in secondary glazing).

Approvals:

  • LPS 1175 SR1 and SR2.
  • ISO 16933 EXV 25.

General information
Size

As drawing

Insert details.

As schedule

Insert details.

Features

Twin compression seals, concealed fixings, can be coupled to other units with colour matched aluminium alloy transom/ mullion, anti-lift and anti-jemmy features

Material

Extruded aluminium alloy 6063-T6

WarrantyDescription

Ten year manufacturers guarantee subject to Selectaglaze terms and conditions

Uniclass 2015
Putty-fronted single glazing systems (Ss_25_60_35_65)Primary
Specification data - Putty-fronted single glazing systems
Product Reference

Series 85 security horizontal sliding (HS)

Style

As primary window designs/ sightlines

Horizontal sliding two pane

Horizontal sliding three pane

Size

As drawing

Insert details.

As schedule

Insert details.

Acoustic performance

Insert required dB level.

Thermal performance

See 'Options' below and insert requirements.

Blast performance

Not required

ISO 16933 EXV 25

Physical performance

Not required

LPS 1175 SR1

LPS 1175 SR2

Frame -
Frame finish

Anodizing, Analok bronze AA25

Anodizing, Analok silver AA10

Polyester powder-coating, HIPCA 9910 semi-gloss white

Polyester powder-coating, RAL

Insert RAL colour.

Wood grain effect

Gloss level

Not required

High gloss

Matt

Semi-gloss

Glazing -
Type

Laminated

Toughened laminated

Toughened Laminated, low-E

Thickness

9.5 mm

11.5 mm

12 mm

12.04 mm

Glazing gasket

Black

White

Ironmongery -
Handles

H10 Finger pull, colour matched to frame

H24 Locking actuator

Locks

L23 - S85/95 Security multipoint

Trickle ventilators

Not required

Over the frame acoustic ventilator

Over the frame standard ventilator

Acoustic reveal linings

Not required

Vinyl faced acoustic foam

Standard product features

Frame:

- Material:

Extruded aluminium alloy 6063-T6.

- Style:

Standard.

Product Options

Size (h x w):

- Minimum:

650 x 500 mm.

- Maximum:

  • Sash: 2600 x 1500 mm.
  • Sash, two panes: 2600 x 3000 mm.
  • Sash, three panes: 2600 x 4500 mm.

Sash height to width ratio should not normally exceed 4.5:1

Thermal performance:

Values of <2.9 W/m²K available; consult manufacturer for details.
