Description

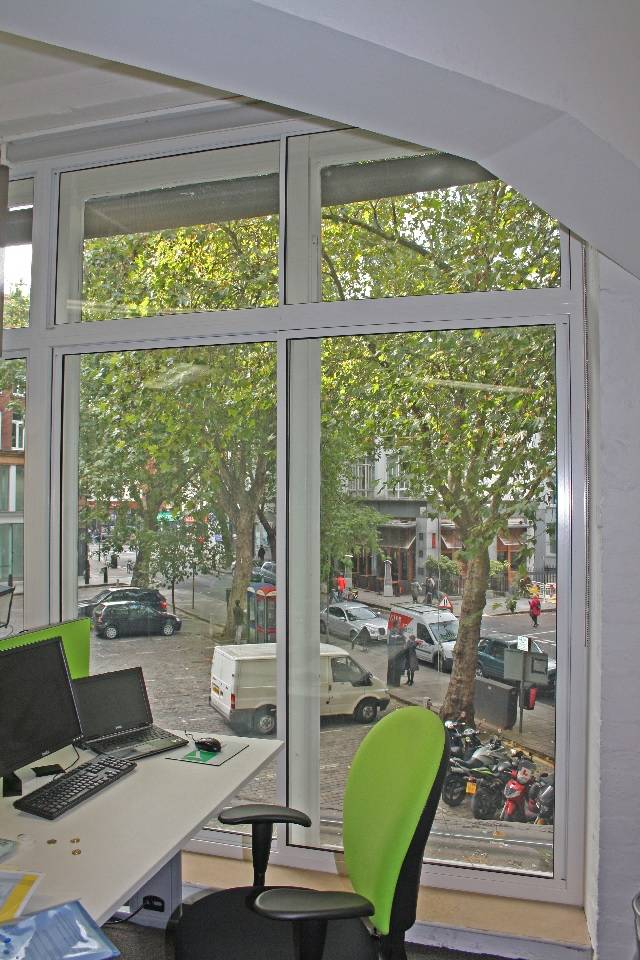

Heavy duty horizontal sliding (HS) secondary glazing, available in two and three pane configurations. Suitable for treating patio doors, very large windows, secure receptions and recording studio doors.

The sashes slide with in the frames, so do not interfere with blinds or curtains. Large ribbon windows can be accommodated by linking units with a colour-matched mullion/ transom section. The sashes are removable which facilitates cleaning and maintenance.

Thicker glass specifications will provide higher levels of noise insulation. High levels of security can be achieved when using secure lock options and polycarbonate glass.

Will reduce heat loss by up to 50% using standard glass and up to 65% with a thermally efficient glass (low emissivity). High performance brush seals will almost eliminate drafts and ensure greater comfort near the window.

Performance:

  • Acoustic: Tested in accordance with BS EN ISO 140-3: 1995 for acoustic performance: between 40 and 49 dB can be achieved.
  • Thermal: U-values as low as 1.81 W/m²K (timber primary window and low-E glass in secondary glazing).

Approvals:

  • Secured by Design (SBD) Accredited.
  • ISO 16933 EXV 33 (horizontal sliding two/ three pane only).

General information
Size

As drawing

Insert details.

As schedule

Insert details.

Features

Twin compression seals, concealed fixings, can be coupled to other units with colour matched aluminium alloy transom/ mullion

Material

Extruded aluminium alloy 6063-T6

WarrantyDescription

Ten year manufacturers guarantee subject to Selectaglaze terms and conditions

Uniclass 2015
Putty-fronted single glazing systems (Ss_25_60_35_65)Primary
Specification data - Putty-fronted single glazing systems
Product Reference

Series 80 heavy duty horizontal sliding (HS)

Style

As primary window designs/ sightlines

Horizontal sliding two pane

Horizontal sliding three pane

Horizontal sliding three pane centre

Size

As drawing

Insert details.

As schedule

Insert details.

Acoustic performance

Insert required dB level.

Thermal performance

See 'Options' below and insert requirements.

Blast performance

Not required

ISO 16933 EXV 33

Horizontal sliding two/ three pane styles only.

Physical performance

Not required

Secured by Design

Frame -
Frame finish

Anodizing, Analok bronze AA25

Anodizing, Analok silver AA10

Polyester powder-coating, HIPCA 9910 semi-gloss white

Polyester powder-coating, RAL

Insert RAL colour.

Wood grain effect

Gloss level

Not required

High gloss

Matt

Semi-gloss

Glazing -
Type

Laminated

Laminated, low-E

Toughened

Toughened, low-E

Thickness

6 mm

6.4 mm

6.8 mm

7.5 mm

8 mm

8.8 mm

9.5 mm

10 mm

10.8 mm

11.3 mm

11.5 mm

12 mm

12.8 mm

Glazing gasket

Black

White

Ironmongery -
Handles

H3 Recessed finger pull, colour matched to frame

H4 Moulded handle, colour matched to frame

H23 - S80/90 locking actuator

Locks

Not required

L21 S80/90 Standard multipoint

L22 S80/90 EXV 33/ SBD multipoint

L28 U Channel track restrictor, colour matched to frame

Trickle ventilators

Not required

Over the frame acoustic ventilator

Over the frame standard ventilator

Acoustic reveal linings

Not required

Vinyl faced acoustic foam

Standard product features

Frame:

- Material:

Extruded aluminium alloy 6063-T6.

- Style:

Standard.

Product Options

Size:

- Minimum:

  • Sash (h x w): 400 x 400 mm.
  • Curved head or jamb radius, minimum: 500 mm.

- Maximum (h x w):

  • Sash: 2800 x 1800 mm.
  • Sash, two panes: 2800 x 3600 mm.
  • Sash, three panes: 2800 x 5400 mm.
  • Sash, four panes: 2800 x 5900 mm.

Sash height to width ratio should not normally exceed 4.5:1.

Thermal performance:

Values of <2.9 W/m²K available; consult manufacturer for details.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 2 1.3
