Series 6 gas hobs, 75cm, 90cm width options
Verified by manufacturer 3 days ago
75 cm - PCS7A5I90
75 cm - PCS7A5I90
Gas hob, 75/ 90 cm, stainless steel.
Application
For domestic applications.
Description
A range of stainless-steel gas hobs with five burners, 5 kW wok burner, FlameSelect and cast iron supports.
Features and benefits:
- FlameSelect: adjust the gas flame precisely using nine defined levels.
- Dual flame power burner with two heat options, quickly boil water or maintain a precise simmer.
- Dual wok burner: dual flame system for powerful cooking at up to 5 kW.
- Continuous cast-iron pan support: Dishwasher safe for high firmness and stability of cookware.
- Removable sword knobs: a better feel and easier to operate.
General information
Color | Silver |
Finish | Brushed |
Material | Stainless steel |
Shape | Rectangle |
Length | 520 mm |
Width | 750 mm 915 mm |
Height | 53 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N11/360 Appliances N11/40 Appliances |
SKU Code | PCS7A5I90 |
Specification data - Built-in gas hobs
Classification data | |

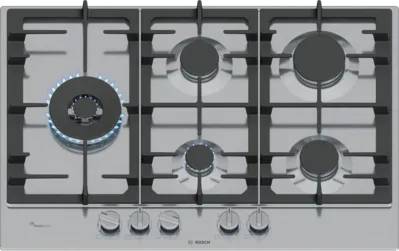

Hob arrangement | Five burner gas hob; one 1.0 kW burner centre front, one 5 kW wok burner left, one 3.0 kW burner right rear, and two 1.75 kW burners centre rear and right front. |
Hob control | Front control with removable metal sword knobs. |
Material and finish | Brushed stainless steel. |
Dimensions | |
Width (maximum) | 750 mm. |
Depth (maximum) | 520 mm. |
Type of gas | Natural. Biomethane gas. |
Electrical supply | 220–240 V, 50–60 Hz. |
Features | FlameSelect, cast iron supports, automatic ignition. |
Accessories | None. HEZ298105: Simmer plate. HEZ298107: Wok ring. HEZ298114: Small pot support. HEZ32WA00: Wireless food thermometer. HEZ9SE040: Four pieces set. HEZ9SE060: Six pieces set. |
Sustainability data
Material | Stainless steel |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 2 |
