Series 6 ceiling hood

Verified by manufacturer 3 months ago

Bosch Home Appliances

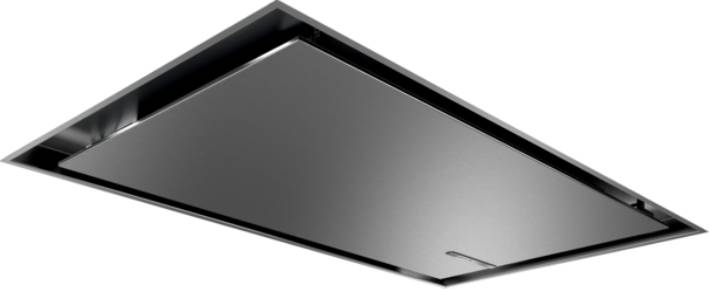

Ceiling cooker hood, 90 cm, stainless steel.

Jump to:
BOS
0344 8929021 Website

Application

For domestic applications.

Description

An integrated ceiling hood for larger and open-plan kitchens. 90 x 50 cm, hob hood control, remote control, LED lights. Optional long-life regenerative recirculating module (stainless steel): DIZ0JC5D0.


Features and benefits:

  • Especially silent: maximum hood performance, minimum noise.
  • Easy-to-clean interior: hidden screws and cables along with rounded edges make cleaning easy.
  • Amazon Alexa voice control.
  • Cooktop-based hood control: use the hob to control your hood.
  • Home Connect smart connectivity.
  • Energy efficiency class A.

General information

Color

Silver

Finish

Brushed

Material

Stainless steel

Shape

Rectangle

Length

888 mm

Width

487 mm

Height

299 mm

Warranty description

Two year

Uniclass

Pr_60_65_94_46 Kitchen extractor hoodsPrimary

CAWS

N11/360 Appliances

N11/40 Appliances

Specification data - Kitchen extractor hoods

Standards

-

Performance testing

To EN 61591.

Operation

Extraction.

Recirculation.

Guidance for specification option:

For recirculated extraction CleanAir recirculating kit

(accessory) needed.

Installation

Ceiling-mounted.

Material and finish

Brushed stainless steel.

Dimensions

-

Width (maximum)

888 mm.

Depth (maximum)

487 mm.

Height

299 mm.

Capacity (minimum)

Normal use: 459 m³/h (maximum); Intensive: 798 m³/h (maximum).

Controls

Electronic three-speed plus two intensive. Hob based hood control and infrared remote control.

Features

Electronic display, four 3 W LED lights, dimmer function, interval operation, automatic intensive revert (6 minutes), automatic after running (automatic after running (10 minutes)), two removable metal grease filter cassettes, saturation indicator for metal and charcoal filter.

Rating

0.174 kW.

Electrical supply

220–240 V, 50/60 Hz.

Noise level at 1 m (maximum)

Normal use: 56 dB(A) (maximum); Intensive: 68 dB(A).(maximum).

Accessories

None.

DIZ0JC2D0: Long Life recirc. kit external white.

DIZ0JC5D0: Long Life recirc. kit external inox.

DIZ1JC2C6: Clean Air Plus recirc.kit external white.

DIZ1JC5C6: Clean Air Plus recirc. kit external inox.

DZZ0XX0P0: Long Life odor filter (replacement).

DZZ1XX1B6: Clean Air Plus odor filter (replacement).

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Series 6, Ceiling cooker hood, 90 cm,
Stainless steel
DRC97AQ50B

Series 6, Ceiling cooker hood, 90 cm, Stainless steel DRC97AQ50B
