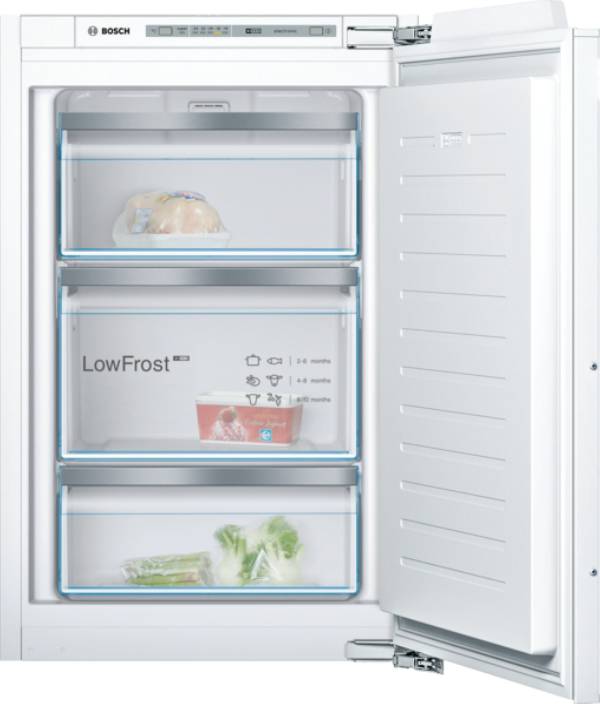

Series 6 built-in freezer 88cm tall
Verified by manufacturer 21 hours ago
Built-in freezer, 87.4 x 55.8 cm, flat hinge.
Application
For domestic applications.
Description
Built-in freezer, 87.4 x 55.8 cm, flat hinge.
Low frost freezer, SuperFreeze, four drawers, optical and acoustic alarm, fixed hinge.
Features and benefits:
- Big Box drawer: easily stack food containers and store larger items in your freezer.
- Low Frost: defrost less often thanks to reduced frost – saving time, effort and energy.
- An audible alarm system signals the door is open.
General information
Color | White |
Shape | Rectangle |
Length | 545 mm |
Width | 558 mm |
Height | 874 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N11/40 Appliances N11/360 Appliances |
Specification data - Freezers
Climatic class | SN-T. |
Installation | Built-in. |
Material and finish | White. |
Format | Upright. |
Dimensions | |
Height (maximum) | 874 cm. |
Width (maximum) | 558 cm. |
Depth (maximum) | 545 mm. |
Net storage | 96 L. |
Freezing capacity | 5 kg/24h. |
Power cut safe time | 13 h. |
Drawers | Three, transparent. |
Door arrangement | Right hinged, reversible. |
Features | LowFrost, fixed hinge, LED electronic control, SuperFreeze function with automatic deactivation, optical and acoustical freezer malfunction warning signal. |
Electrical supply | 220–240 V, 50 Hz. |
EU energy label rating (minimum) | E. |
Accessories | None. KFZ20AX0 Door panel with decor frame. KFZ20SX0 Stainless steel door panel. |
Integral accessories | One ice cube tray. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Series 6, Built-in freezer, 87.4 x 55.8 cm, flat hinge GIV21AFE0
