Description

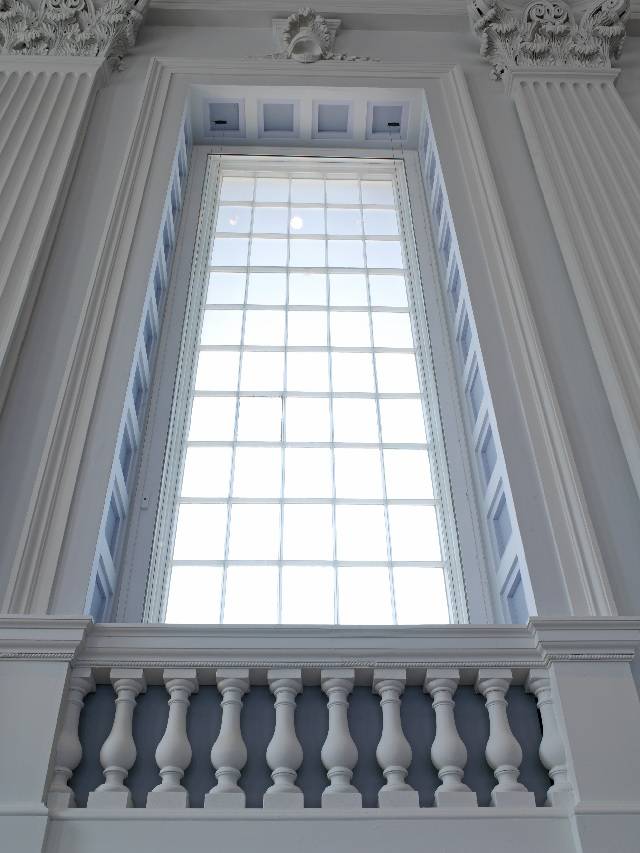

Security hinged casement (HC) secondary glazing suitable for use with very large windows and doors. Provides intruder resistance and blast mitigation.

Available as single and double side hung casements, allows full access to the outer window without mullions or transoms to impede the view. Can be glazed with thicker glass or sealed units and is certified to significant levels of security.

All fixings are concealed within the frame, which may be linked to other frames with a colour-matched mullion/ transom section.

Will reduce heat loss by up to 50% using standard glass and up to 65% with a thermally efficient glass (low emissivity). High performance compression seals will almost eliminate drafts and ensure greater comfort near the window.

Performance:

  • Acoustic: Tested in accordance with BS EN ISO 140-3: 1995 for acoustic performance: between 41 and 48 dB.
  • Thermal: U-values as low as 1.78 W/m²K (timber primary window and low-E glass in secondary glazing).

Approvals:

  • LPS 1175 SR1 and SR2 (single side hung only).
  • ISO 16933 EXV 25 (single and double side hung).
  • ISO 16933 EXV 19 and EXV 15 (single side hung only).

General information
Size

As drawing

Insert details.

As schedule

Insert details.

Features

Twin compression seals, concealed fixings, can be coupled to other units with colour matched aluminium alloy transom/ mullion, 90° restrictor stay, curved frame available

Material

Extruded aluminium alloy 6063-T6

WarrantyDescription

Ten year manufacturers guarantee subject to Selectaglaze terms and conditions

Uniclass 2015 Bead-fixed single glazing systems (Ss_25_60_35_08)
Specification data
Product Reference

Series 50 security hinged casement (HC)

Style

As primary window designs/ sightlines

Bottom hung hinged casement

Curved hinged casements

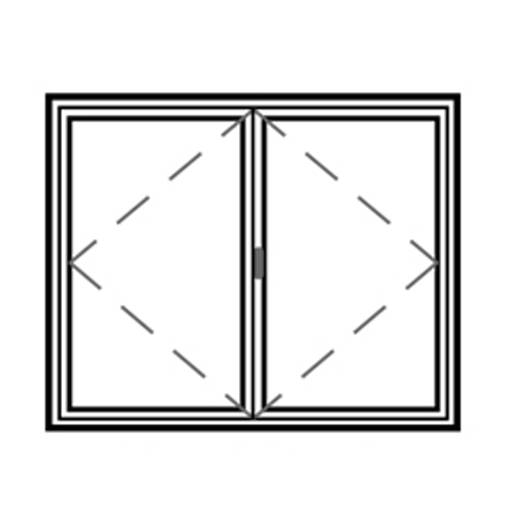

Double side hung hinged casement

Single side hung hinged casement

Top hung hinged casement

Size

As drawing

Insert details.

As schedule

Insert details.

Acoustic performance

Insert required dB level.

Thermal performance

See 'Options' below and insert requirements.

Blast performance

Not required

ISO 16933 EXV 15

Single side hung hinged casements only.

ISO 16933 EXV 19

Single side hung hinged casements only.

ISO 16933 EXV 25

Double/ single side hung hinged casements only.

Physical performance

Not required

LPS 1175 SR1

Single side hung hinged casements only.

LPS 1175 SR2

Single side hung hinged casements only.

Frame -
Frame finish

Anodizing, Analok bronze AA25

Anodizing, Analok silver AA10

Polyester powder-coating, HIPCA 9910 semi-gloss white

Polyester powder-coating, RAL

Insert RAL colour.

Wood grain effect

Gloss level

Not required

High gloss

Matt

Semi-gloss

Glazing -
Type

Heated glass

Laminated

Laminated, low-E

Polycarbonate

Sealed unit

Switchable privacy

Toughened

Toughened, low-E

Thickness

6 mm

6.4 mm

6.8 mm

7.5 mm

8 mm

8.8 mm

9.5 mm

10 mm

10.8 mm

11.3 mm

11.5 mm

12.04 mm

24 mm (sealed unit)

Glazing gasket

Black

White

Ironmongery -
Handles

See 'Options' below and insert requirements.

Locks

Not required

L29 Sprung restrictor stay

Trickle ventilators

Not required

Over the frame acoustic ventilator

Over the frame standard ventilator

Acoustic reveal linings

Not required

Vinyl faced acoustic foam

Standard product features

Frame:

- Material:

Extruded aluminium alloy 6063-T6.

- Style:

Standard.

Product Options

Size:

  • Double/ single side hung hinged casement, minimum (h x w): 700 x 450 mm.
  • Double side hung hinged casement, maximum (h x w): 3600 x 3600 mm.
  • Single side hung hinged casement, maximum (h x w): 3600 x 1800 mm.
  • Bottom hung/ top hung hinged casement, minimum (h x w): 400 x 700 mm.
  • Bottom hung/ top hung hinged casement, maximum (h x w): 1800 x 3600 mm (maximum area 2.5 m²).
  • Curved head or jamb radius, minimum: 500 mm.

Thermal performance:

Values of <2.9 W/m²K available; consult manufacturer for details.

Ironmongery:

- Handles:

  • H6 Slimline handle, black.
  • H6 Slimline handle, gold.
  • H6 Slimline handle, polished chrome.
  • H6 Slimline handle, satin chrome.
  • H6 Slimline handle, white.
  • H7 Non-locking handle, colour matched to frame.
  • H8 Locking handle, colour matched to frame.
  • H9 Rosette (square drive/ removable key), colour matched to frame.
  • H12 Peardrop handle (lockable), black.
  • H12 Peardrop handle (lockable), polished brass.
  • H12 Peardrop handle (lockable), polished chrome.
  • H12 Peardrop handle (lockable), brass.
  • H15 Reeded handle (lockable), polished brass.
  • H15 Reeded handle (lockable), polished chrome.
  • H15 Reeded handle (lockable), satin chrome.
  • H16 Monkey tail(lockable), black.
  • H18 Vivo low profile handle, colour matched to frame.
  • H18 Vivo low profile handle, dark grey.
  • H18 Vivo low profile handle, gold.
  • H18 Vivo low profile handle, polished chrome.
  • H18 Vivo low profile handle, satin chrome.
  • H21 Flush lock with cover disc, colour matched to frame.
  • H22 Flush lock with security cover plate, colour matched to frame.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 2 1.3
Download now from NBS National BIM Library
