Description

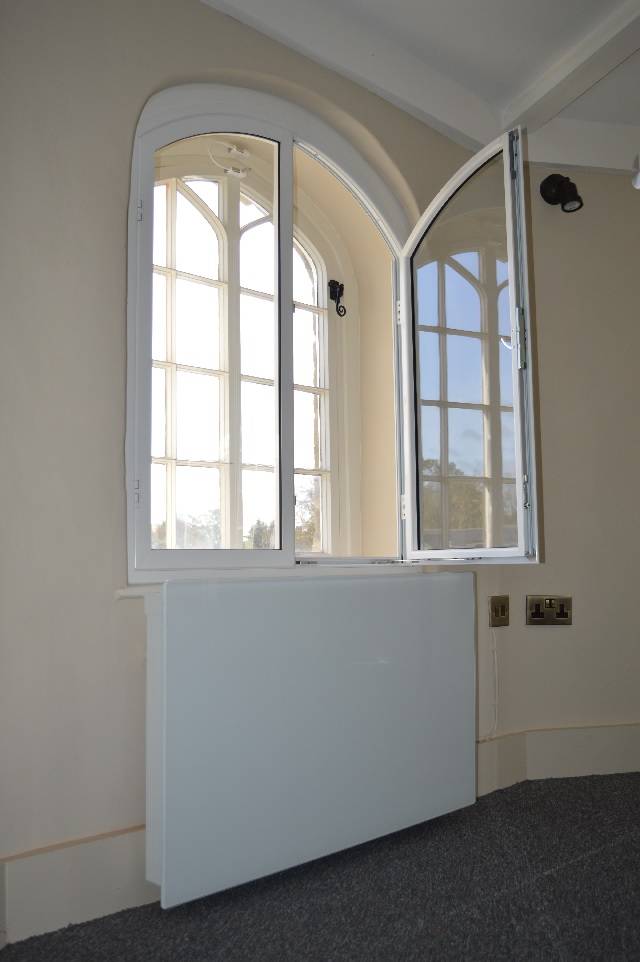

Slimline hinged casement (HC) secondary glazing unit with flush glazing lines. All fixings are concealed within the frame, which may be linked to other frames with a colour-matched mullion/ transom section. Suited to shaped and circular windows. Release of catches allows the panel to be removed for occasional cleaning.

Framing system is suitable to many types of windows and traditional sized doors. Available in single and double leaf casements.

Will reduce heat loss by up to 50% using standard glass, up to 65% with a thermally efficient glass (low emissivity). High performance compression seals will almost eliminate drafts and ensure greater comfort near the window.

Performance:

  • Acoustic: Tested in accordance with BS EN ISO 140-3:1995 for acoustic performance: between 41 and 48 dB.
  • Thermal: U-values as low as 1.78 W/m²K (timber primary window and low-E glass in secondary glazing).

Approvals:

Secured by Design accredited.

Blast tested to ISO 16933 EXV 33.

General information
Size

As drawing

Insert details.

As schedule

Insert details.

Features

Twin compression seals, concealed fixings, can be coupled to other units with colour matched aluminium alloy transom/ mullion, 90° restrictor stay, curved frame available

Material

Extruded aluminium alloy 6063-T6

WarrantyDescription

Ten year manufacturers guarantee subject to Selectaglaze terms and conditions

Uniclass 2015
Ss_25_60_35_08 Bead-fixed single glazing systemsPrimary
Specification data - Bead-fixed single glazing systems
Product Reference

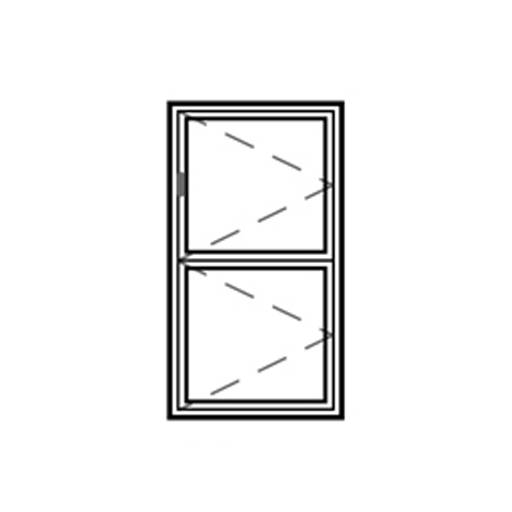

Series 45 slimline hinged casement (HC)

Style

As primary window designs/ sightlines

Bottom hung hinged casement

Double side hung hinged casement

Single side hung hinged casement

Stable door hinged casement

Top hung hinged casement

Size

As drawing

Insert details.

As schedule

Insert details.

Acoustic performance

Insert required dB level.

Thermal performance

See 'Options' below and insert requirements.

Blast performance

Not required

ISO 16933 EXV 33

Single side hung hinged casement only.

Performance physical

Not required

Secured by Design

Frame -
Frame finish

Anodizing, Analok bronze AA25

Anodizing, Analok silver AA10

Polyester powder-coating, HIPCA 9910 semi-gloss white

Polyester powder-coating, RAL

Insert RAL colour.

Wood grain effect

Gloss level

Not required

Matt

High gloss

Semi-gloss

Glazing -
Type

Laminated

Laminated, low-E

Toughened

Toughened, low-E

Thickness

4 mm

6 mm

6.4 mm

6.8 mm

Glazing gasket

Black

White

Ironmongery -
Handles

See 'Options' below and insert requirements.

Locks

Not required

L29 Sprung restrictor stay

Trickle ventilators

Not required

Over the frame acoustic ventilator

Over the frame standard ventilator

Acoustic reveal linings

Not required

Vinyl faced acoustic foam

Standard product features

Frame:

- Material:

Extruded aluminium alloy 6063-T6.

- Style:

Standard.

Product Options

Size:

  • Bottom or top hung hinged casement, minimum (h x w): 400 x 500 mm.
  • Bottom or top hung hinged casement, maximum (h x w): 1500 x 1500 mm.
  • Side-hung hinged casement, minimum (h x w): 700 x 450 mm.
  • Double side hung hinged casement, maximum (h x w): 2200 x 3000 mm.
  • Single side hung hinged casement, maximum (h x w): 2200 x 1500 mm.
  • Stable door hinged casement, maximum: (h x w): 2200 x 1350 mm.

Thermal performance:

Values of <2.9 W/m²K available; consult manufacturer for details.

Ironmongery:

- Handles:

  • H7 non-locking handle, colour matched to frame.
  • H6 locking slimline handle, white.
  • H6 locking slimline handle, black.
  • H6 locking slimline handle, gold.
  • H6 locking slimline handle, polished chrome.
  • H6 locking slimline handle, satin chrome.
  • H8 locking handle, colour matched to frame.
  • H9 rosette (square drive/removable key), colour matched to frame.
  • H12 peardrop handle (lockable), black.
  • H12 peardrop handle (lockable), brass.
  • H12 peardrop handle (lockable), polished brass.
  • H12 peardrop handle (lockable), polished chrome.
  • H15 reeded handle (lockable), polished brass.
  • H15 reeded handle (lockable), polished chrome.
  • H15 reeded handle (lockable), satin chrome.
  • H16 monkey tail (lockable), black.
  • H18 Vivo low profile handle, colour matched to frame.
  • H18 Vivo low profile handle, polished chrome.
  • H18 Vivo low profile handle, satin chrome.
  • H18 Vivo low profile handle, gold.
  • H18 Vivo low profile handle, dark grey.
  • H21 flush lock with cover disc, colour matched to frame.
  • H22 flush lock with security cover plate, colour matched to frame.
