Series 4 Telescopic Hoods, 60cm & 90cm width options
Verified by manufacturer 5 months ago
60 cm - DFS067A51B
60 cm - DFS067A51B

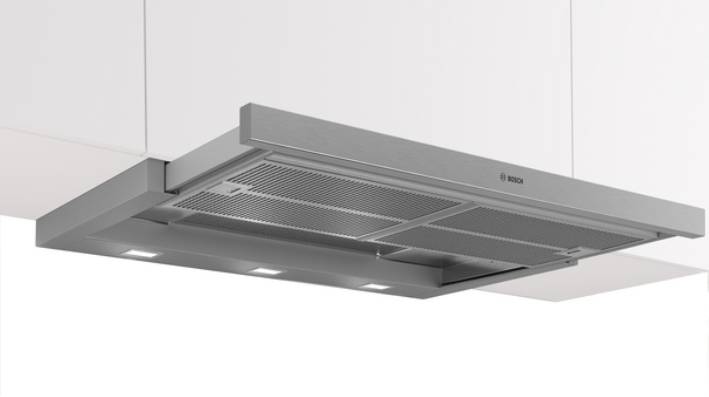

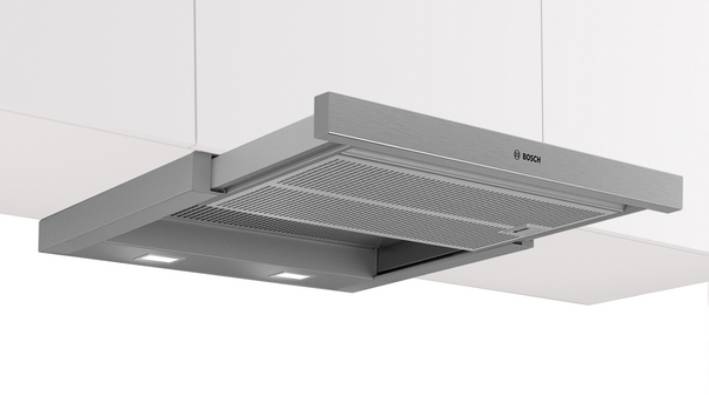

Telescopic cooker hood, 60/ 90 cm, silver metallic.
Application
For domestic applications.
Description
Telescopic cooker hoods extend when in use and slide away when not in operation.
Logo design handle, three speed plus one intensive, electronic control, LED lights, stainless steel filter covers. Optional CleanAir standard recirculation kit: DWZ2IT1I4.
Features and benefits:
- Extra silent: the high-performance hood, with minimal noise.
- EcoSilence Drive™: the powerful, energy-saving drive for hoods.
- Intensive speed setting: removes strong kitchen odours quickly and effectively.
- Energy efficiency class: A
General information
Color | Silver |
Finish | Metallic |
Material | Stainless steel |
Shape | Rectangle |
Length | 290 mm |
Width | 598 mm 898 mm |
Height | 426 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N11/360 Appliances N11/40 Appliances |
Specification data - Kitchen extractor hoods
Standards | |
Performance testing | To EN 61591. |
Operation | Extraction.Recirculation.Guidance for specification option: For recirculated extraction, recirculating kit or CleanAir recirculating kit (accessory) needed. |
Installation | Integrated into wall unit. |
Material and finish | Metallic silver. |
Dimensions | |
Width (maximum) | 598 mm. |
Depth (maximum) | 290 mm. |
Height | 426 mm. |
Capacity (minimum) | Extraction: 399 m³/h; Recirculating: 358 m³/h. |
Controls | Three power levels plus intensive setting. |
Features | Electronic control via soft touch button control, two 1.5 W LEDs, BLDC technology, automatic intensive revert (6 minutes), automatic after running (10 minutes), two removable metal grease filter cassettes. |
Rating | 0.144 kW. |
Electrical supply | 220–240 V, 50–60 Hz. |
Noise level at 1 m (maximum) | 53 dB(A). |
Accessories | None.DSZ4561 Standard odor filter (replacement).DSZ4565 Standard recirculation kit.DSZ4961 Lowering frame.DSZ4682.DSZ4686.DWZ0IT0P0 Long Life odor filter (replacement).DWZ1IT1D1 Long Life recirculation kit external.DWZ1IX1B6 Clean Air Plus odor filter (replacement).DWZ1IX1C6 Clean Air Plus recirc. kit external.DWZ2IT1B4.DWZ2IT1I4 Clean Air Standard recirculation kit. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

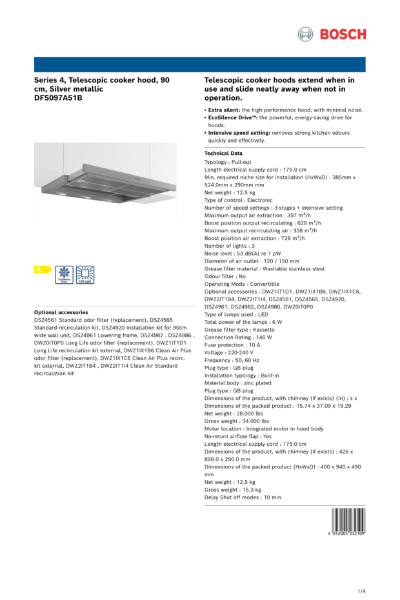

Series 4, Telescopic cooker hood, 90 cm, Silver metallic DFS097A51B

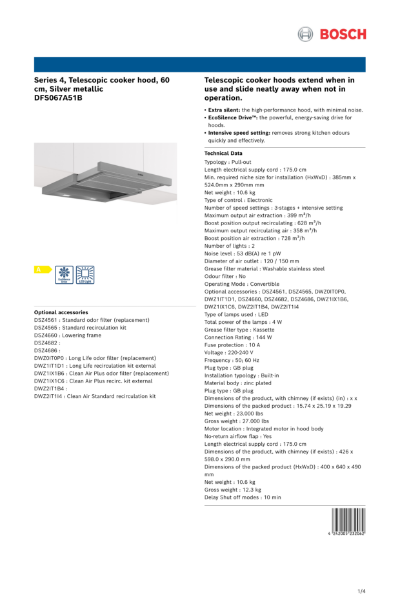

Series 4, Telescopic cooker hood, 60 cm, Silver metallic DFS067A51B
