Series 4 induction hob

Verified by manufacturer 3 months ago

Bosch Home Appliances

Induction hob, 60 cm, black.

Jump to:
BOS
0344 8929021 Website

Application

For domestic applications.

Description

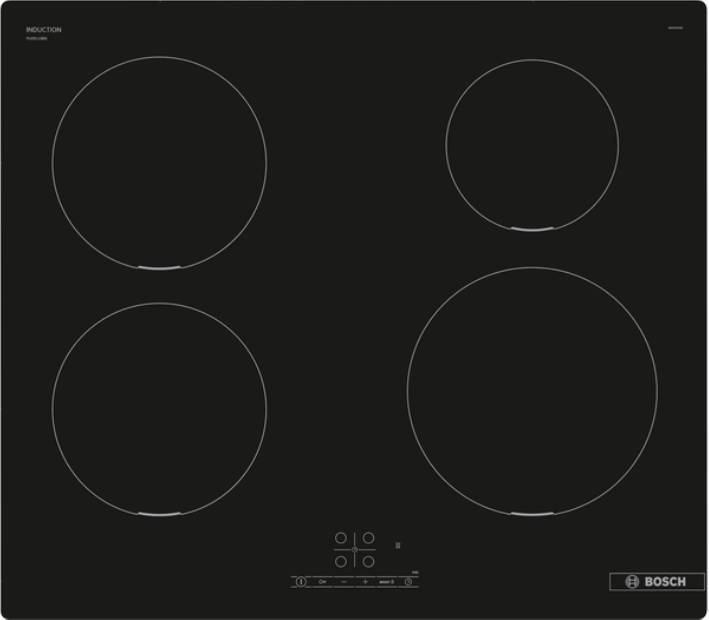

Induction hob, 60 cm, black.


With touch control, four zones, frameless, 17 power levels, two boost zones and timer. Plug and play with GB plug.


Features and benefits:

  • Plug and play: plugs easily into a 13A socket.
  • TouchSelect: Selection of the desired cooking zone and easy setting of the desired power level.
  • PowerBoost: up to 50% more power for faster heating on your induction hob.
  • QuickStart: start straight away and select the desired cooking level.
  • Restart: restores cooktop settings in case of an unintentional cooktop switch-off.

General information

Color

Black

Material

Ceramic

Glass

Shape

Rectangle

Length

522 mm

Width

592 mm

Height

51 mm

Warranty description

Two year

Uniclass

Pr_40_70_24_07 Built-in electric hobsPrimary

CAWS

N11/360 Appliances

N11/40 Appliances

Specification data - Built-in electric hobs

Hob arrangement

Induction hob with four cook zones; one 1.4 (2.2) kW, one 2.2 (3.7) kW and two 1.8 (3.1) kW.

Dimensions

-

Width (maximum)

592 mm.

Depth (maximum)

522 mm.

Rating

3.7 kW.

Electrical supply

220–240, 50–60 Hz.

Material and finish

Black glass, frameless.

Features

Touch select, variable 17-stage power settings for each zone, switch-off timer, count-down timer, power boost function for all zones, quick start function, restart function,
quick stop, two-stage residual heat indicator for each zone,
control panel lock, main on/off switch and automatic safety shut off.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Series 4, Induction hob, 60 cm, Black, PUE611BB5B

Series 4, Induction hob, 60 cm, Black, PUE611BB5B
