Central battery safety luminaire with LED technology.
Recessed and surface-mounted safety luminaires.
The luminaires of the series 3000 enable especially efficient escape route illumination with a low connected load and thus low energy costs. With a height of just 38 mm and diameter of 135 mm, the 3514 LED CG-S has a slight and discreet appearance, however, despite its small construction size, it achieves similar values to the more watt-intensive luminaires with fluorescent lamps. The service life of up to 50 000 hours of the LEDs significantly reduces maintenance costs.
The symmetrical light distribution of the high power LEDs enable wide light point spacing for both escape routes and for wide-area illumination from varied mounting heights. Thus at a mounting height of 8 m, luminaire spacing of up to 18 m or maximum mounting heights of up to 10 m can be achieved.
Features and benefits:
Color | White |
Finish | Brushed |
Material | Steel |
Shape | Circle |
Width | 135 mm |
Height | 38 mm |
Uniclass | |
CAWS | V90/510 General-purpose luminaires V90/510 General purpose luminaires V90/510 Luminaires |
Third-party certification | ENEC mark. |

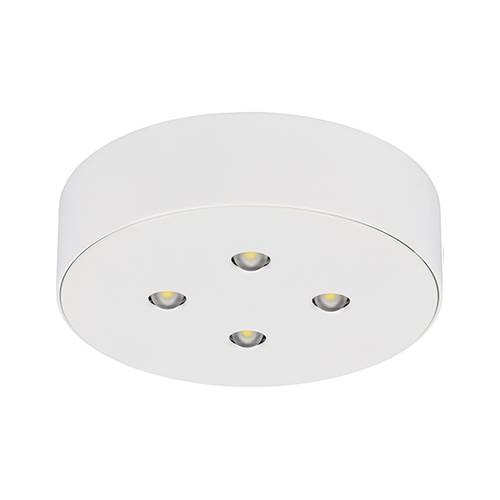

Luminaire description | Round LED surface ceiling-mounted luminaire with four HighPower LEDs. |
Classification | |
Ingress protection (minimum) | IP20. |
Circumstances of use | Normal. |
Rated maximum ambient temperature | 40°C.Guidance for specification option: Permissible ambient temperature: -10 °C to +40 °C. |
Controlgear position | Integral within luminaire. |
Supply circuit conductor connections | Guidance for specification option: Connection terminals: loop terminals 3 x 2.5 mm². |
Nominal voltage | 220–240 V a.c (50/60 Hz). |
LED luminaires | |
Initial LED luminaire efficacy (minimum) | Guidance for specification option: Light source: HighPower LEDs 4 x 1 W. |
Wattage | 5.8 W.Guidance for specification option: Power consumption mains operation (effective power): 9.5 VA. Manufacturer guidancePower consumption mains operation (apparent power). |
Useful life | Luminous flux at end of rated operating time, 100%. |
Emergency version | |
Classification | |
Type | Z. |
Accessories | Sheet steel bezel. |
Luminous flux | 512 lm. |
Inrush current | 1.5 A. |
Current | 25 mA. Manufacturer guidanceCurrent consumption with battery operating. |
Housing colour | White. |
Dimensions | Ø135 mm. |
Mounting | Surface ceiling mounting. |
Weight | 0.45 kg. |
