Slimline framing system usually applied to smaller regular shaped windows. Offers a practical solution for treating windows which are rarely opened, but require occasional access.

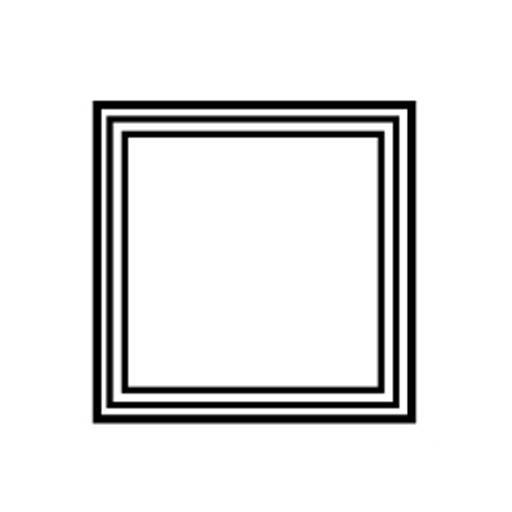

Slimline lift out (LO) secondary glazing unit, removable to provide easy access to the outer window, facilitating cleaning and maintenance. All fixings are concealed within the frame, which may be linked to other frames with a colour-matched mullion/ transom section.
Suitable for listed buildings where the primary glazing cannot be changed. It is a reversible adaptation, so generally accepted by heritage agencies.
Will reduce heat loss by up to 50% using standard glass and up to 65% with a thermally efficient glass (low emissivity). The system is also fitted with a mixture of high performance brush and compression seals to minimise drafts.
Thermal performance:
U-values as low as 1.79 W/m²K (timber primary window and low-E glass in secondary glazing).
Approvals:
Acoustic: Tested in accordance with BS EN ISO 140-3:1995 for acoustic performance between 38 and 45 dB.
Size | As drawingInsert details. As scheduleInsert details. |
Features | Concealed fixings, can be coupled to other units with colour matched aluminium alloy transom/ mullion |
Material | Extruded aluminium alloy 6063-T6 |
WarrantyDescription | Ten year manufacturers guarantee subject to Selectaglaze terms and conditions |
Uniclass 2015 |
Product Reference | Series 30 Slimline Lift Out (LO) |
Style | Lift outStandard Shuffle out |
Size | As drawingInsert details. As scheduleInsert details. |
Acoustic performance | Insert required dB level. |
Thermal performance | See 'Options' below and insert requirements. |
Frame | - |
Frame finish | Anodizing, Analok bronze AA25Anodizing, Analok silver AA10Polyester powder-coating, HIPCA 9910 semi-gloss whitePolyester powder-coating, RALInsert RAL colour. Wood grain effect |
Gloss level | Not requiredHigh glossMattSemi-gloss |
Glazing | - |
Type | LaminatedLaminated, low-EToughenedToughened, low-E |
Thickness | 4 mm6 mm6.4 mm6.8 mm |
Glazing gasket | BlackWhite |
Ironmongery | - |
Handles | H1 Integral finger pull, colour matched to frameH3 Recessed finger pull, colour matched to frame |
Locks | Not requiredL11 mini cam lock, silverL12 screwlock, whiteL12 screwlock, black |
Trickle ventilators | Not requiredOver the frame standard ventilatorOver the frame acoustic ventilator |
Acoustic reveal linings | Not requiredVinyl faced acoustic foam |
Standard product features | Frame: - Material: Extruded aluminium alloy 6063-T6. - Style: Standard. |
Product Options | Size: - Lift out:
- Shuffle out:
Thermal performance: Values of <2.9 W/m²K available; consult manufacturer for details. |
Platform | Compatible | Version | Certified to |
---|---|---|---|
![]() | IFC2X3 | 2 | 1.3 |
![]() | Revit 2015 | 2 | 1.3 |
