Series 3 Platform - Plant Deck
Verified by manufacturer 13 hours ago

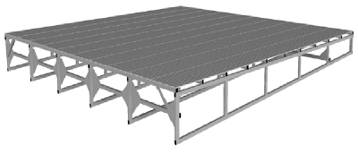

Structural aluminium roof platform for mounting plant and equipment.
Application
For creating a level surface for mounting plant and equipment including HVACR on pitched roofs.
Description
Structural aluminium roof platform for mounting plant and equipment.
Features and benefits:
- Robust, selectable starting height design.
- Pre-manufactured kit form supply.
- Extra height increases air flow to improve equipment’s performance and longevity.

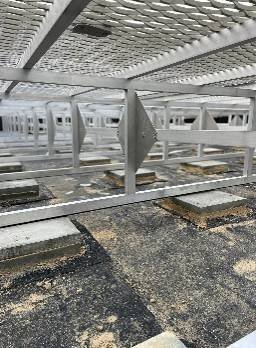

- Provides access under the platform for routine inspections and maintenance.
- Distinctive design distributes the load evenly, reducing the structural requirements of the roof.
- Compatible with steep-pitched roofs and saw-toothed roofs.
- Added height allows for easy integration of equipment with vertical discharge ducts.
- All aluminium components with stainless steel fixings backed by a 20-year warranty.
General information
Color | Grey |
Finish | Mill |
Material | Aluminium Guidance for specification option: Extruded aluminium structure. Stainless steel Guidance for specification option: Fixings. |
Shape | Square Rectangle Manufacturer guidanceFlat surface - square or rectangle - with base structure to suit roof pitch. |
Length | Bespoke Guidance for specification option: Any size in 600 mm increments. |
Width | Bespoke Guidance for specification option: Any size in 600 mm increments. |
Warranty description | 20 year |
Uniclass | Pr_20_85_65_02 Aluminium plant platforms Primary |
CAWS | L35/370 Guardings L35/360 Working platforms |
Specification data - Aluminium plant platforms
Product reference | Series 3 Platform. |
Frame section | Extruded 60 x 40 mm aluminium rectangular hollow sections. |
Frame fixing to superstructure | Non-penetrating - not fixed: 6 mm neoprene foam rubber tape pre-adhered to underside of structural members in contact with superstructure. Guidance for specification option: This is a medium density neoprene foam rubber tape that is designed to compress and provide traction to the roof material without adhering. Non-penetrating - fixed: VHB foam rubber tape pre-adhered to underside of structural members in contact with superstructure. Guidance for specification option: This is a high strength VHB foam tape 40 mm wide x 2 mm thick that comes with a removable backing that is designed to adhere the platform to the roof surface. |
Material | Extruded and expanded 13 mm aluminium diamond pattern mesh, 600 mm wide lengths. |
Applied anti-slip treatment | Knurled anti-slip surface. |
Assembly connectors | Stainless steel structural tek screws, flanges and structural plates. |
Air flow | 70% free airflow. |
Live load rating | 2.5 kPa (255 kg/m²). Guidance for specification option: Load sharing design tranfers centrally located load over the footprint size. |
Weight | 20 kg/m². Guidance for specification option: Average across most common roof pitches. |
Accessories/ Optional surrounds | Not required. Guardrail system. Guidance for specification option: Can be configured to any of the perimeter sides in any 600 mm increment, with the option for a self-closing gate. Standard Screen system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or a double door. Height options in 400 mm increment sizes above the walking surface. SoundShield system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or a double door. Height options in 400 mm increment sizes above the walking surface - Rw 28. PeaceMaker system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or double door. Height options in 400 mm increment sizes above the walking surface - NRC 1. |
Sustainability data
Material | Aluminium Guidance for specification option: Extruded aluminium structure. Stainless steel Guidance for specification option: Fixings. |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | 9 kg CO₂ eq/kg |
Declared unit | 9 kg CO₂ eq/kg Self-declared |
Recyclability | 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % Guidance for specification option: Up to 95%. |
