Series 2 NoFrost Bottom Freezers, 177cm tall, 50/50 split

Verified by manufacturer 21 hours ago

Bosch Home Appliances

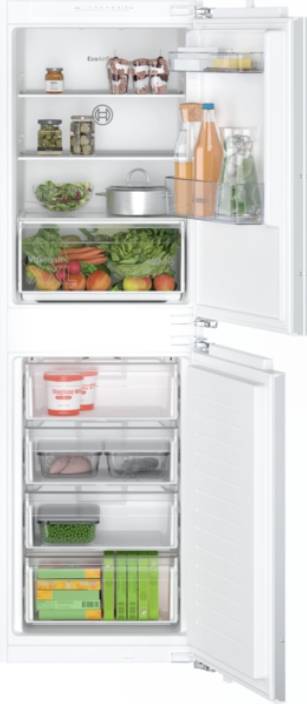

Built-in fridge-freezer with freezer at bottom, 177.2 x 54.1 cm, flat hinge.

Jump to:
BOS
0344 8929021 Website

Application

For domestic applications.

Description

Built-in fridge-freezer with freezer at bottom, 177.2 x 54.1 cm, flat hinge.


NoFrost bottom freezer, XXL MultiBox veg drawer, LED light, digital temperature control, three glass shelf, fixed hinge, 50/50 split, four freezer drawers.


Features and benefits:

  • MultiBox XXL: extra-large drawer for your fruit and vegetables.
  • Eco Airflow: maintains optimal air circulation and a constant temperature level throughout the cooling area.
  • LED lighting: all your items in view.
  • NoFrost: never defrost again, thanks to protection from ice formation - that saves time and effort.
  • An audible alarm system signals the door is open.

General information

Color

White

Shape

Rectangle

Length

548 mm

Width

541 mm

Height

1772 mm

Warranty description

Five year

Uniclass

Pr_40_70_26_32 Fridge-freezersPrimary

CAWS

N11/360 Appliances

N11/40 Appliances

Specification data - Fridge-freezers

Climatic class

SN-ST.

Installation

Built-in.

Material and finish

White.

Format

Fridge on top.

Dimensions

-

Height (maximum)

1772 mm.

Width (maximum)

541 mm.

Depth (maximum)

548 mm.

Refrigerator

-

Net storage

150 L.

Drawers

One XXL MultiBox veg drawer.

Shelves

Three glass shelves, one large and one small door shelves.

Door arrangement

Right hinged door, door reversible.

Features

LED electronic control, Super Cooling with automatic deactivation, integral LED light, automatic defrost.

Freezer

-

Net storage

99 L.

Freezing capacity

5.5 kg/24 h.

Power cut safe time

Ten hours.

Drawers

Four, transparent.

Door arrangement

Right hinged door, door reversible.

Features

NoFrost, acoustic alarm and height-adjustable front feet.

Electrical supply

220–240 V, 50 Hz.

EU energy label rating (minimum)

E.

Accessories

None.

KSZB6R00 Bottle shelf.

KSZGGM00 Butter dish.

Integral accessories

One ice cube tray and three egg trays.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Series 2, Built-in fridge-freezer with
freezer at bottom, 177.2 x 54.1 cm,
flat hinge
KIN85NFE0G

Series 2, Built-in fridge-freezer with freezer at bottom, 177.2 x 54.1 cm, flat hinge KIN85NFE0G
