Series 1 Platform
Application

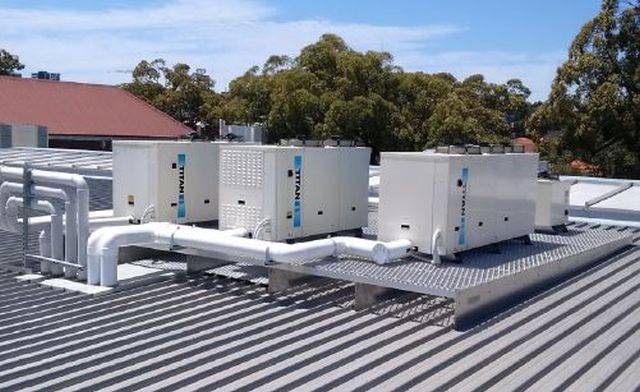

Designed for creating a level surface for mounting plant and equipment including heating, ventilation, air conditioning, and refrigeration (HVACR) units on pitched roofs.

Description

Structural aluminium platform for pitched roofs.


Features and benefits:

  • Low profile design when compared to conventional structural steel platforms.
  • Distributes the load evenly, reducing the structural requirements of the roof.
  • Configurable to suit project requirements.
  • Lightweight aluminium design ensures ease of carrying, craning, and assembly.
  • Will not corrode.
  • Penetration- free, making placement and position on the roof flexible to suit project requirements.
  • Allows sufficient area around the units for access and maintenance.
  • Supplied in kit form for easy installation.
  • Compliant with BS EN 516:2006 and BS EN 1090-3:2008.

General information

Finish

Mill finish

Material

Extruded and sheet aluminium

Stainless steel

Shape

Flat surface: Square or rectangular, with base structure to suit roof pitch

Square

Rectangular

Size

Any size in 600 mm increments from 1200 x 1200 mm to 18 000 (down roof) x 60 000 mm (across roof). Insert requirements.

-

WarrantyDescription

20 years

Uniclass 2015

Pr_80_77_27_73 Roof equipment supportsPrimary

CAWS

L35/160 Working platform system

Specification data - Roof equipment supports Enhanced data

Components

-

Support base

-

Type

Stainless steel.

Support frame

-

Type

Folded 3 mm aluminium Z section - tapered to suit the roof pitch, with extruded 60 x 40 mm aluminium rectangular hollow section.

Threaded rod

-

Size

Insert guidance

Product Reference

Series 1 Platform

Material

Extruded and expanded 13 mm aluminium diamond pattern mesh.

Applied anti-slip treatment

Top surface of the aluminium mesh is knurled to provide anti-slip surface.

Frame fixing to superstructure

Fixed.

VHB foam rubber tape - Pre-adhered to underside for structural members in contact with the superstructure.

Not fixed.

6 mm neoprene foam rubber tape. Penetration-less.

Accessories

Not required.

Acoustic+.

For acoustic screening by reflection and absorption. Height options: 1200, 1600, 2000, 2400 mm above walking surface.

Guardrail.

For edge protection where the platform is 300 mm above the adjacent surface.

Peacemaker.

For acoustic screening by absorption. Height options: 1200, 1600, 2000, 2400 mm above walking surface.

Soundshield.

For acoustic screening by reflection. Height options: 1200, 1600, 2000, 2400 mm above walking surface.

Show more

Live load rating

2.5 kPa/ 255 kg/m². Load sharing design transfers centrally located load over the footprint size.

Weight

14 kg/m² - Average across most common roof pitches.

Environmental information

Embodied carbon

Approximately 9 kg· CO2e/kg - cradle-to-gate

Recyclability

100%

Recycled content

30
