Description

Ogee profile, extruded aluminium gutters, designed for direct fixing, or with fascia brackets at 750 mm centres maximum; Rafter brackets are also available. Finishes include mill finish or polyester powder coated on the external face only; the gutters are available with a range of fittings.

General information
Size

125 mm

150 mm

As drawing ___

Uniclass 2015
Aluminium eaves gutters (Pr_65_50_35_06)Primary
Specification data - Aluminium eaves gutters
Product Reference

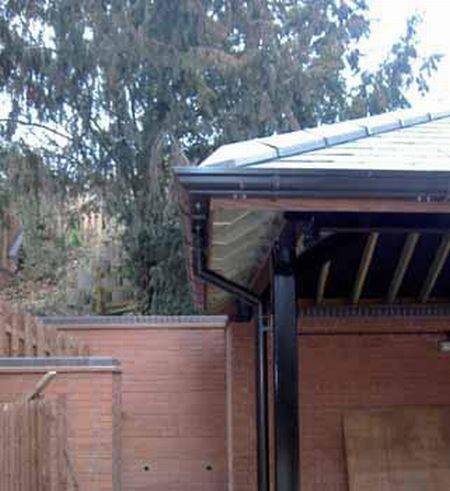

Sentinel Vintage Ogee Gutters

Size

125 mm

150 mm

As drawing ___

Finish -
FinishType

Mill

Polyester powder coating

Accessories

As drawing ___

Standard product features

Sentinel gutters and fittings to BS 2887 and BS EN 612 using 6063 T6 grade extruded aluminium in accordance with BS 1474.

Vintage OG gutters have loose internal union connectors that are secured using M6 x 20 mm aluminium bolts, neoprene washers and nuts. ARP Ltd recommends the use of Arbosil 1096 Low Modulus Silicone sealant to seal each side of the joint.

Additional sizes, profiles, faceted and radius gutters can be supplied to order whilst bespoke items, to customers own specifications, can also be manufactured.

Product Options

Gutters:

125 mm:

  • 54VOG0.5 - 0.5 m long.
  • 54VOG1 - 1.0 m long.
  • 54VOG2 - 2.0 m long.
  • 54VOG2.5 - 2.5 m long.
  • 54VOG3 - 3.0 m long.

150 mm:

  • 64VOG0.5 - 0.5 m long.
  • 64VOG1 - 1.0 m long.
  • 64VOG2 - 2.0 m long.
  • 64VOG2.5 - 2.5 m long.
  • 64VOG33 - 3.0 m long.

Angles:

125 x 100 mm gutter:

  • 54VOAI90 - 90º internal angle.
  • 54VOAX90 - 90º external angle.
  • 54VOAI135 - 135º internal angle.
  • 54VOAX135 - 135º external angle.

150 x 100 mm gutter:

  • 64VOAI90 - 90º internal angle.
  • 64VOAX90 - 90º external angle.
  • 64VOAI135 - 135º internal angle.
  • 64VOAX135 - 135º external angle.

Outlets:

125 x 100 mm gutter:

  • 54VOO2R - 63 mm diameter.
  • 54VOO3R- 76 mm diameter.
  • 54VOO2S - 63 mm square.
  • 54VOO3S - 76 mm square.
  • 54VOO43 - 101 x 76 mm rectangle.

150 x 100 mm gutter:

  • 64VOO2R - 63 mm diameter.
  • 64VOO3R- 76 mm diameter.
  • 64VOO4R- 101 mm diameter.
  • 64VOO2S - 63 mm square.
  • 64VOO3S - 76 mm square.
  • 64VOO4S - 101 mm square.
  • 64VOO43 - 101 x 76 mm rectangle.

Stopends:

  • 54VOSEL - left hand - to suit 125 x 100 mm gutter.
  • 54VOSEL - right hand - to suit 125 x 100 mm gutter.
  • 64VOSEL - left hand - to suit 150 x 100 mm gutter.
  • 64VOSEL - right hand - to suit 150 x 100 mm gutter.

Union connectors:

  • 54VOUC - to suit 125 x 100 mm gutter.
  • 64VOUC - to suit 150 x 100 mm gutter.
