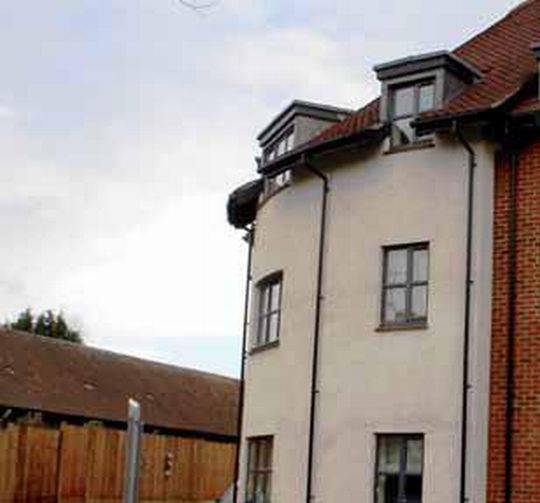

Sentinel Direct Fix Deepflow Gutters
Description

Extruded aluminium gutters, designed for direct fixing at 750 mm centres maximum. Finishes include mill finish or polyester powder coated; the gutters are available with a range of fittings.

General information
Finish

Mill

Polyester powder coating

Uniclass 2015
Pr_65_50_35_06 Aluminium eaves guttersPrimary
CAWS

R10/11 Aluminium gutters

R10/311 Aluminium gutters

Specification data - Aluminium eaves gutters
Product Reference

Sentinel Direct Fix Deepflow Gutters

Gutter

As drawing ___

Finish

Mill

Polyester powder coating

Accessories

As drawing ___

Standard product features

Sentinel gutters and fittings to BS 2997 and BS EN 612 using 6063 T6 grade extruded aluminium in accordance with BS 1474.

Deepflow gutters have loose internal union connectors which are secured using M6 x 20 mm aluminium bolts, neoprene washers and nuts; ARP Ltd recommends the use of Arbosil 1096 Low Modulus Silicone sealant to seal each side of the joint.

Additional sizes, profiles, faceted and radius gutters can be supplied to order, whilst bespoke items, to customers own specifications, can also be manufactured.

Stopends:

  • 54DFHRSE.

Union connectors:

  • 54DFHRUC.

Product Options

Gutter 125 mm:

  • 54DFHRG0.5 - 0.5 m long.
  • 54DFHRG1 - 1.0 m long.
  • 54DFHRG2 - 2.0 m long.
  • 54DFHRG2.5 - 2.5 m long.
  • 54DFHRG3 - 3.0 m long.

Angles:

  • 54DFHRAI90 - 90º internal angle.
  • 54DFHRAX90 - 90º external angle.
  • 54DHRAI135 - 135º internal angle.
  • 54DHRAX135 - 135º external angle.

Outlets:

  • 54DFHRO2R - 63 mm diameter.
  • 54DFHRO3R - 76 mm diameter.
  • 54DFHRO4R - 101 mm diameter.
  • 54DFHRO2S - 63 mm square.
  • 54DFHRO3S - 76 mm square.
  • 54DFHRO4S - 101 mm square.
  • 54DFHRO43 - 101 x 76 mm rectangle.

Finish:

  • Mill.
  • Polyester powder coating.
