Description

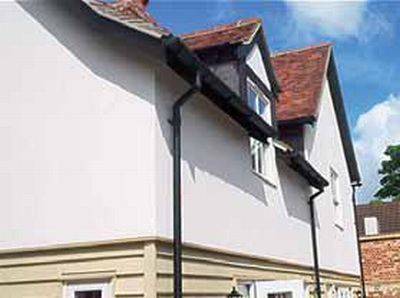

Extruded aluminium gutters, beaded, half-round, designed for fixing with fascia brackets at 750 mm centres maximum. A range of fittings, inclusive of rafter brackets, are also available. Finishes include mill finish or polyester powder coated on the external face only.

Specification data
Product Reference

Sentinel Beaded Half Round Gutters

Size

112 mm

125 mm

150 mm

As drawing ___

Finish -
FinishType

Mill

Polyester powder coating

Accessories

As drawing ___

Standard product features

Sentinel gutters are manufactured from aluminium alloy 6063 T6 to BS 1474 and the product complies with, or exceeds all relevant standards.

Lengths, angles and outlets are supplied with one union connector. Additional sizes, profiles, faceted and radius gutters can be supplied to order, whilst bespoke items can be manufactured to customer's own specifications.

Product Options

Gutter profile:

112 mm:

  • 4BHRG0.5 - 0.5 m long.
  • 4BHRG1 - 1.0 m long.
  • 4BHRG2 - 2.0 m long.
  • 4BHRG2.5 - 2.5 m long.
  • 4BHRG3 - 3.0 m long.

125 mm:

  • 5BHRG0.5 - 0.5 m long.
  • 5BHRG1 - 1.0 m long.
  • 5BHRG2 - 2.0 m long.
  • 5BHRG2.5 - 2.5 m long.
  • 5BHRG3 - 3.0 m long.

150 mm:

  • 6BHRG0.5 - 0.5 m long.
  • 6BHRG1 - 1.0 m long.
  • 6BHRG2 - 2.0 m long.
  • 6BHRG2.5 - 2.5 m long.
  • 6BHRG3 - 3.0 m long.

Angles:

112 mm gutter:

  • 4BHRA90 - 90º angle.
  • 4BHRA135 - 135º angle.
  • 4BHRAN - non-standard angle.

125 mm gutter:

  • 5BHRA90 - 90º angle.
  • 5BHRA135 - 135º angle.
  • 5BHRAN - non-standard angle.

150 mm gutter:

  • 6BHRA90 - 90º angle.
  • 6BHRA135 - 135º angle.
  • 6BHRAN - non-standard angle.

Outlets:

112 mm gutter:

  • 4BHRO2R - 63 mm diameter.
  • 4BHRO3R - 76 mm diameter.
  • 4BHRO4R - 101 mm diameter.
  • 4BHRO2S - 63 mm square.
  • 4BHRO3S - 76 mm square.
  • 4BHRO4S - 101 mm square.
  • 4BHRO43 - 101 x 76 mm rectangle.

125 mm gutter:

  • 5BHRO2R - 63 mm diameter.
  • 5BHRO3R - 76 mm diameter.
  • 5BHRO4R - 101 mm diameter.
  • 5BHRO2S - 63 mm square.
  • 5BHRO3S - 76 mm square.
  • 5BHRO4S - 101 mm square.
  • 5BHRO43 - 101 x 76 mm rectangle.

150 mm gutter:

  • 6BHRO2R - 63 mm diameter.
  • 6BHRO3R - 76 mm diameter.
  • 6BHRO4R - 101 mm diameter.
  • 6BHRO2S - 63 mm square.
  • 6BHRO3S - 76 mm square.
  • 6BHRO4S - 101 mm square.
  • 6BHRO43 - 101 x 76 mm rectangle.

Stopends:

  • 4BHRSE - to suit 112 mm gutter.
  • 5BHRSE - to suit 125 mm gutter.
  • 6BHRSE - to suit 150 mm gutter.

Union connectors:

  • 4BHRUC - to suit 112 mm gutter.
  • 5BHRUC - to suit 125 mm gutter.
  • 6BHRUC - to suit 150 mm gutter.
