Sensorflow 21 Electronic Mixer

Sensorflow 21 Electronic Mixer

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Armitage Shanks

A range of sensor operated brassware with integral sensor. Demand for hygiene and water saving is met by a range of electronic sensor taps second to none.

Jump to:
+44 (0)870 122 8822 www.idealspec.co.uk
Description

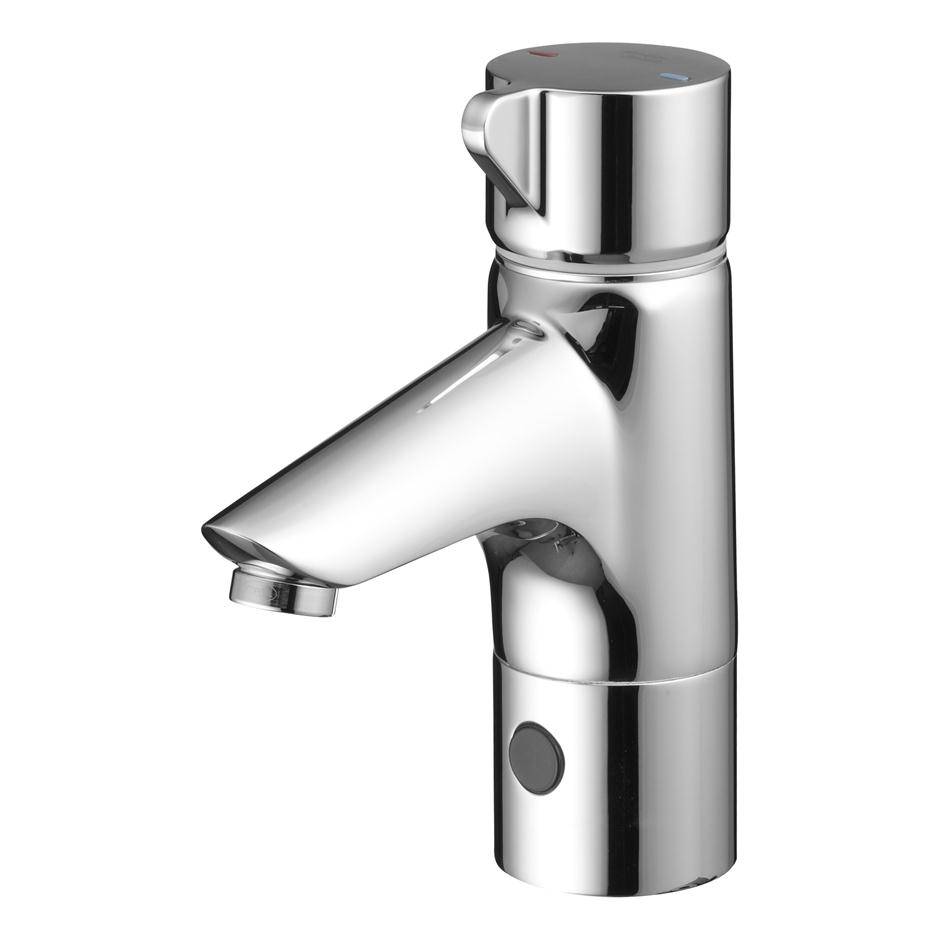

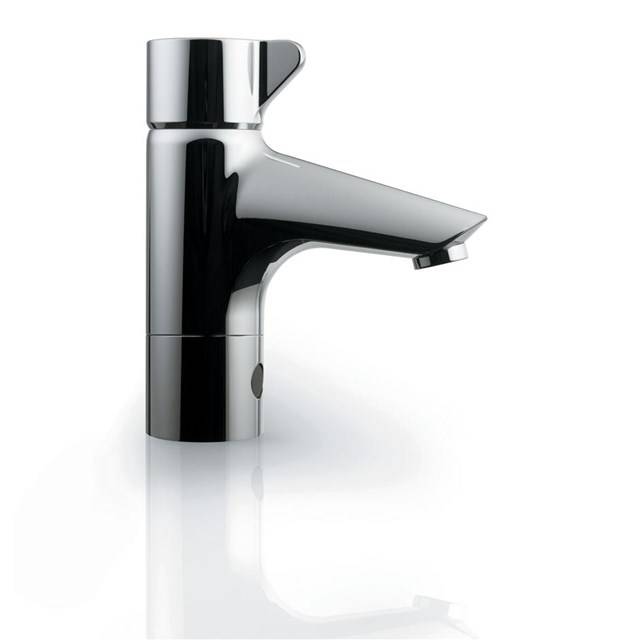

Sensorflow 21 washbasin mounted mixer adjustable temperature integral sensor servicing valve copper tube inlet and filter, mains

  • Commercial use
  • Hygienic
  • DDA compliant
  • 3.7lpm flow regulator
  • Anti vandal housing
  • Laminar flow

General information

Finish

Chrome - (AA)

Ultra Steel - (GN)

Color

Chrome

Stainless

Features

Washbasin variable temperature mixer integral sensor, battery

Washbasin variable temperature mixer integral sensor, mains

Washbasin variable temperature mixer integral sensor, link

Material

Brass

Shape

Cylindrical

Size

57 x 159 x 188 mm

WarrantyDescription

Manufacturers Warranty

Uniclass 2015

Pr_40_20_87_99 Washbasin thermostatic water supply sets

CAWS

N13/335 Washbasins

Specification data - Washbasin thermostatic water supply sets

Product Reference

A4176 - Sensorflow 21 Electronic Mixer

Sensorflow 21 Washbasin Variable Temperature Mixer Integral Sensor, Mains

A4177 - Sensorflow 21 Electronic Mixer

Sensorflow 21 Washbasin Variable Temperature Mixer Integral Sensor, Link

A4124 - Sensorflow 21 Electronic Mixer

Sensorflow 21 Washbasin Variable Temperature Mixer Integral Sensor, Battery

Finish

Chrome - (AA)

Ultra Steel - (GN)

Standard product features

Brassware:

  • Material: Chrome Plated Brass
  • Weight: 3.90 kg
  • Flowrate: 3.70 lpm @ 3bar

Product Options

All spouts supplied complete with individual solenoid valve, copper tube inlet and combined servicing valve and filter. Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device see A5900. Spouts with integral sensors detect hands within the sensing range and the solenoid valve is opened. Automatically shuts off if sensor is obstructed for a maximum of 50 seconds. Mains powered transformer with option to link up to 5 link units per main unit alternatively there are stand alone battery powered units. Flow rate regulated to 3.7 Litres per minute.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2013 1 1.2
Download now from NBS National BIM Library
Third party certifications
  • European Water Label: Water Label : 4.7 litres per minute
  • Water Regulations Advisory Scheme: WRAS : 1212013
