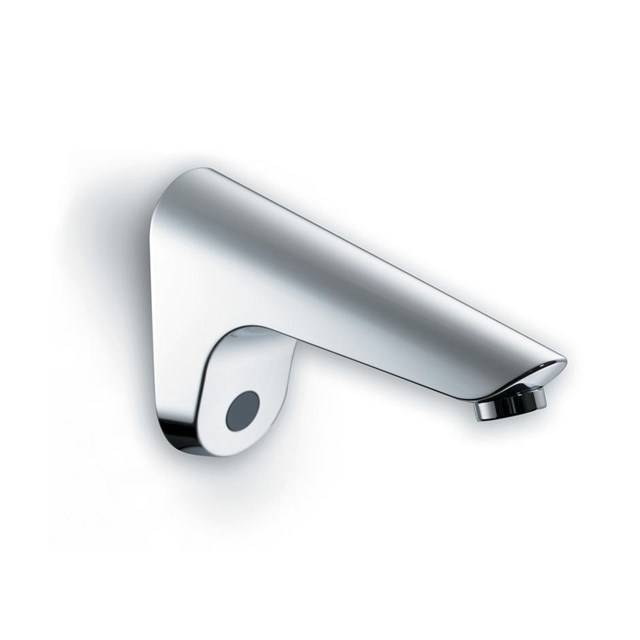

Sensorflow 21 Cast Spout With Built-In Sensor

Sensorflow 21 Cast Spout With Built-In Sensor

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Armitage Shanks

Sensorflow 21 Panel Mounted Cast Spout, Integral Sensor, Mains

Jump to:
+44 (0)870 122 8822 www.idealspec.co.uk
Description

Sensorflow 21 panel mounted 15cm cast spout integral sensor, flexible inlet tail, solenoid valve, combined servicing valve and filter, sensor and solenoid cables, copper tube inlets, mains

  • Commercial use
  • Hygienic "no touch" operation
  • Anti vandal
  • Chrome plated
  • DDA compliant

General information

Finish

Chrome - (AA)

Ultra Steel - (GN)

Uniclass 2015

Pr_40_20_87_99 Washbasin thermostatic water supply sets

CAWS

N13/335 Washbasins

Specification data - Washbasin thermostatic water supply sets

Product Reference

A4178 - Sensorflow 21 Cast Spout With Built-In Sensor

Sensorflow 21 Panel Mounted Cast Spout, Integral Sensor, Mains

A4179 - Sensorflow 21 Cast Spout With Built-In Sensor

Sensorflow 21 Panel Mounted Cast Spout, Integral Sensor, Link

A4125 - Sensorflow 21 Cast Spout With Built-In Sensor

Sensorflow 21 Panel Mounted Cast Spout, Integral Sensor, Battery

Finish

Chrome - (AA)

Ultra Steel - (GN)

Standard product features

Brassware:

  • Material: Chrome Plated Brass
  • Weight: 2.40 kg
  • Flowrate: 4.70 lpm @ 3bar

Product Options

All spouts supplied complete with individual solenoid valve, copper tube inlet and combined servicing valve and filter. Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device see A5900. Spouts with integral sensors detect hands within the sensing range and the solenoid valve is opened. Automatically shuts off if sensor is obstructed for a maximum of 50 seconds. Mains powered transformer with option to use up to 5 link units per main unit or stand alone battery powered units. Regulated flow rate 4.7 litres per minute.

Third party certifications
  • European Water Label: Water Label : 4.7 litres per minute
  • Water Regulations Advisory Scheme: WRAS : 1212014
