Sensor Tap
Verified by manufacturer 1 year ago
140 Sensor Tap
140 Sensor Tap
Wall mounted and deck mounted sensor operated tap.
Application
Ideal for school facilities and suitable for any washroom for all types of projects.
Description
Wall mounted and deck mounted sensor operated tap.
Features and benefits:
- Considered to be extremely functional and robust.
- Can suit any washroom due to the minimalist design and choice of spout size.
- Available mains or battery powered.

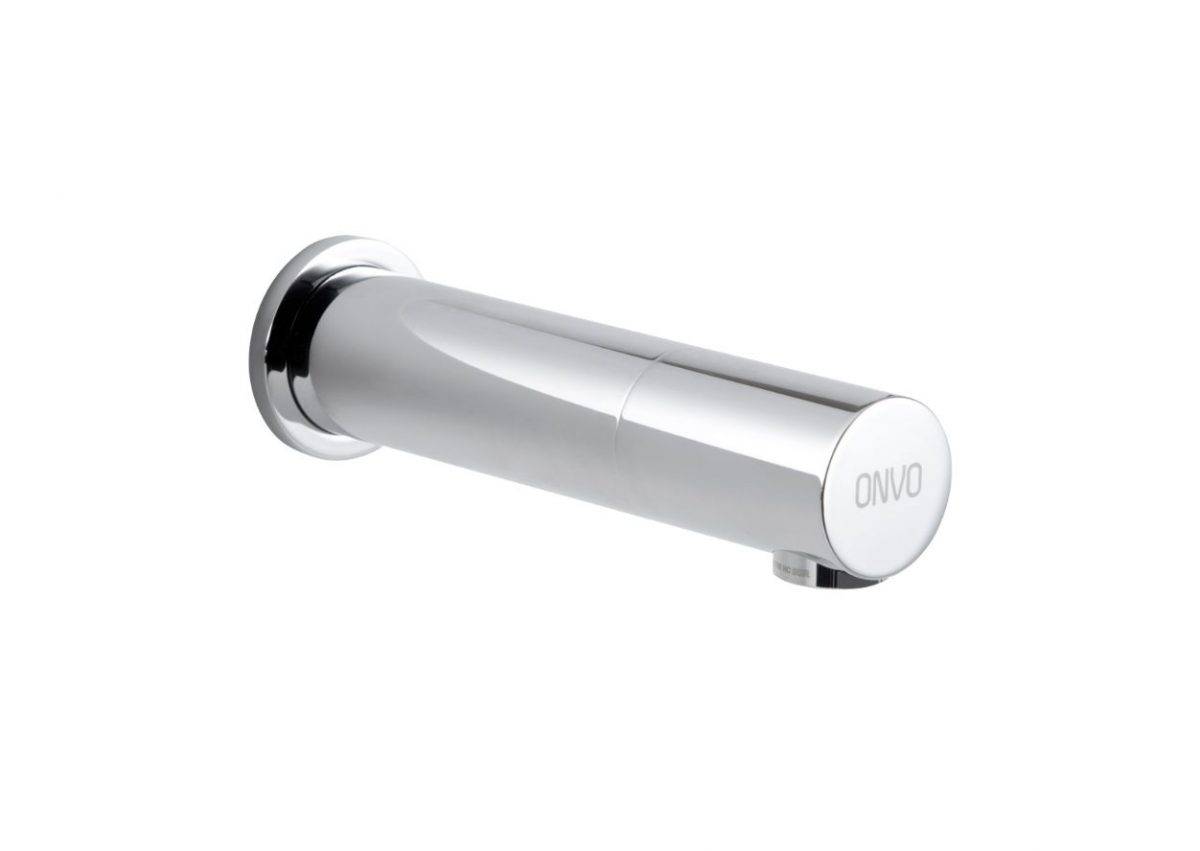

- Wall mounted sensor tap is used with the Latherwash 2W Washthrough.

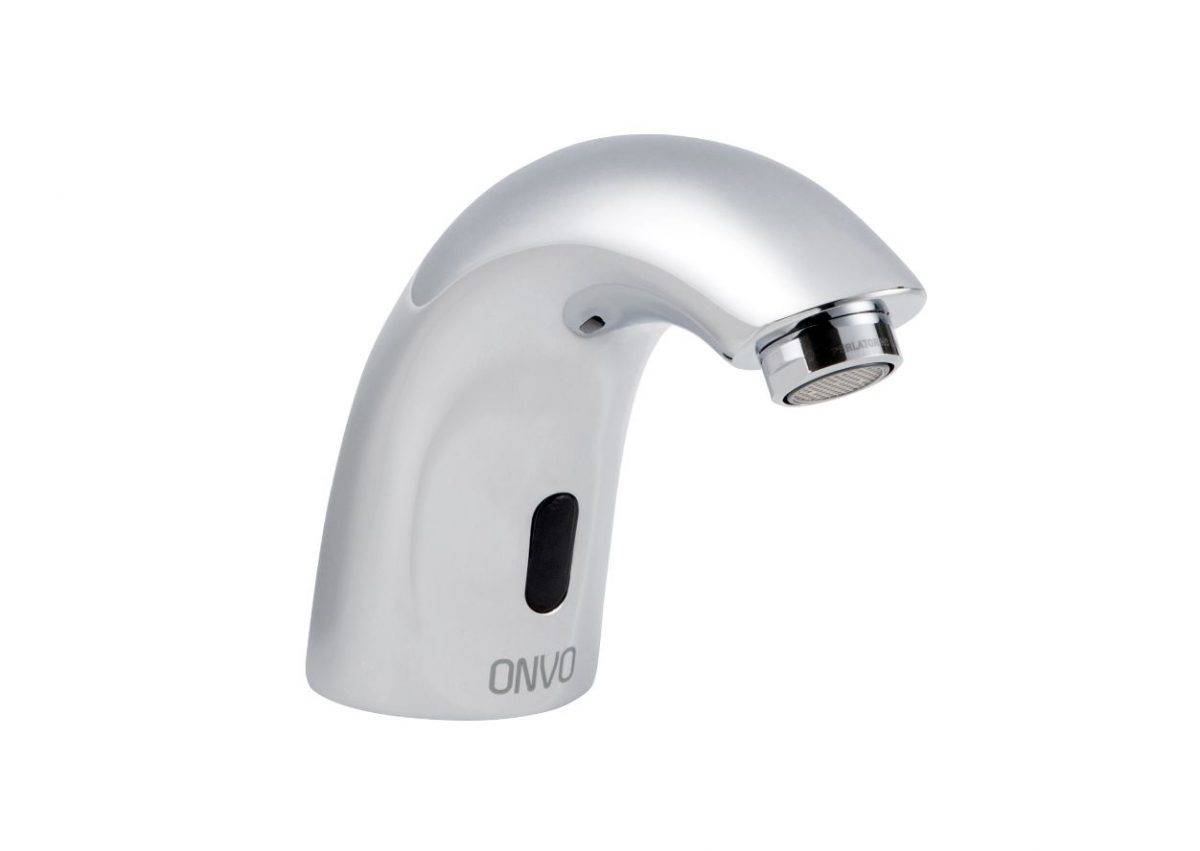

- Deck mounted sensor tap is designed to sit on the deck of the Latherwash 2D Washtrough.
General information
Color | Grey Silver |
Finish | Chrome Satin |
Length | 170 mm 220 mm |
Warranty description | Two year Guidance for specification option: From date of purchase |
Uniclass | |
CAWS | N11/350 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes |
Specification data - Washbasin taps
Approvals | Water Regulations Advisory Scheme (WRAS) and BREEAM approved, Contributes towards LEED credits, CE marked, cUL, RoHS. |
Form | Deck-mounted tap. |
Materials | |
Finish and colour | Chrome.Satin. |
Pressure | 0.5–8 bar dynamic pressure. Guidance for specification option: Deck mounted. Manufacturer guidanceMin/Max operations pressure. |
Flowrate | 4 litres per minute 1 GPM (US) standard. Guidance for specification option: Options for 1.89 and 6 litres per minutes (0.5 and 1.59 GPM (US)) available. |
Security | 90 seconds. Manufacturer guidanceSecurity cut-off. |
Temperature | Max 70°C (158˚F). Manufacturer guidanceHot water temperature. |
Power supply | IP68 rated transformer with push-fit cabling to tap. Guidance for specification option: Deck mounted mains. IP67 rated battery holder with push-fit cabling to tap. Guidance for specification option: Wall mounted and Deck mounted 6 x AA batteries. |
Length | 170 mm. 220 mm. Manufacturer guidanceWall mounted. |
Weight | 1.06 kg. Guidance for specification option: Wall mounted. |
Sensor | Preset 220mm. Guidance for specification option: Min range 80mm - Max range 300mm. Deck mounted. Manufacturer guidanceRange. |
Optional accessories | Power splitter 2 Way - 1M-2F -1.5 m. Power splitter 3 Way - 1M-3F - 1.5 m. Extension cable 1 m. Extension cable 4 m. 700 mm flexi hose - 1.2” BSP thread. |
Cut-outs | 30 mm. Guidance for specification option: Countertop cutout. Maximum countertop thickness: 28 mm. 23–27 mm plus 3.5 mm anti-rotation pin locating hole. Guidance for specification option: Wall cutout. Maximum wall thickness: 33 mm. |
Electrical supply | 3 amp fused spur to be connected to IP68 transformer supplied. |
Water supply | Require at least 0.5 bar dynamic water pressure to operate |
Access | Solenoid and isolation valves must be accessible at for initial installation and commissioning. Guidance for specification option: And for ongoing and routine maintenance. Manufacturer guidanceAccess requirements. |
Accessories | 766 and 776 Soap Dispenser. Not required. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
