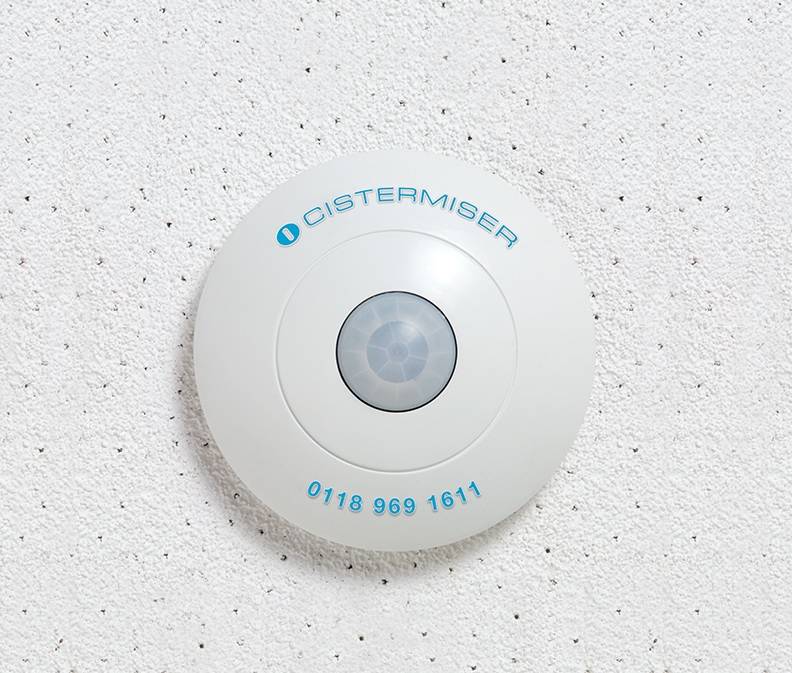

Sensazone Sensor Unit
Description

Prevents water wastage, eliminate the risk of flooding in vacant periods and reduces utility bills.

Advantages:

  • BREEAM compatible; credits under Hea 06, Hea 07, Ene 04 and Wat 03.
  • Infrared sensor(s) controls supply of all water and electrical services: hot water, cold water, grey/ rainwater, lighting, ventilation.
  • Hygiene flush feature.
  • Avoid flooding due to vandalism or water wastage due to defective outlets.
  • Ambient light sensor feature – lights only turned on when natural light levels require.
  • Surface mounted; suitable for any ceiling type.
  • Ensures compliance with Water Regulations and can earn BREEAM credits.
  • Can be used to control both water and electrics, or water only (taps, WCs and urinals) or electrics only (e.g. lights, fans).

General information

Color

White

Features

Infrared sensor(s) controls supply of all water and electrical services, Hygiene flush feature, Avoids flooding from vandalism and defective outlets, Ambient light sensor; light will only turn on when natural light level require it.

Material

Plastic

Size

31 x 76 x 76 mm

WarrantyDescription

1 year + 2 Years extendable warranty (parts only)

Uniclass 2015

Pr_40_20_87/422 Proximity sensor control unitsPrimary

CAWS

N13/420 Proximity sensor control units

Specification data - Proximity sensor control units

Product Reference

Sensazone

Product Options

Operation:

  • When Sensazone detects a user entering the washroom it activates up to three (for hot, cold and rain/ grey water supplies) solenoid valves to allow water to flow freely into the washroom.
  • If no motion has been detected for a user-configurable time of either 15 or 30 minutes, the valve will close the water supply to the area until further movement is detected.
  • Sensazone is designed to control up to three 2W 2/2 bi-stable (latching) solenoid valves per washroom area.

System configuration:

A number of additional control and sensor kits are available from Cistermiser Ltd which can be added to the Sensazone system so as to control water supply/ lighting/ fans in multiple areas of a washroom. Consult product literature and contact manufacturer for details.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 2 2.0
Revit
Revit 2016 2 2.0
Download now from NBS National BIM Library
