Senia Suspended Feature Lighting
Application

  • Suspended workspace lighting for Cat A and Cat B office fit-out and a flexible solution for bespoke schemes.
  • Suitable for large office space, places of education, reception areas and breakout spaces.

Description

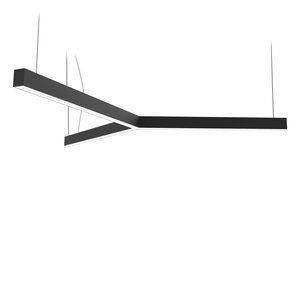

Suspended Y-shaped linear feature LED Lighting, part of the geometric range.


Features and benefits:

  • Contemporary design provides a line of suspended, continuous light.
  • Can be specified with LED Tunable White technology for the selection of a range of colour temperatures dependent on project requirements, to help aid health and well-being.
  • A range of size and colour variations are possible.
  • The choice of five different colour temperatures suits any application and the light intensity can be dimmed with either DALI or Casambi systems.
  • Internal ballasts or drivers are supplied.

General information

Finish

Polyester powder coat

Material

Extruded aluminium profile with LEDs

Shape

Geometric

Size

25 sizes, ranging from 566–2246 mm.

-

Uniclass 2015

Pr_70_70_48_86 Suspended luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Suspended luminaires Enhanced data

Standards

IEC 60596-2-1.

IEC 60596-2-2.

Third-party certification

Measurement Certificate 0342/2018 LM-79-08 Photometrics.

Luminaire description

Suspended, Y-shaped, linear.

Classification

-

Electric shock

Low Voltage (<1000V).

Ingress protection (minimum)

To BS EN 60529, IP20.

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces.

Circumstances of use

Normal.

Rated maximum ambient temperature

25°C.

Supply circuit conductor connections

Push terminal.

Screw terminal.

Nominal voltage

220–240 V.

Luminaire power factor

0.97.

LED luminaires

-

Performance standards

EN 13032-1.

Safety standard

IEC EN 60598-1.

Initial LED luminaire efficacy (minimum)

102 Lm/ W.

Wattage

Direct 14 W/ 1333 lm up to 53 W/ 5331 lm, Direct/ Indirect 23 W/ 2616 lm up to 102 W/ 11584 lm.

Colour temperature

2700K.

3000K.

4000K.

5000K.

Tunable White (TW) 2700-6500K.

Insert requirements. Not available with emergency.

Colour rendering index (Ra)

80.

90.

97.

Beam angle

30–100°.

Useful life

100 000 hours (L80B20).

Dimming protocol

DALI Dimming.

Touch-dimmable.

Non-dimming.

Standard.

Emergency version

-

Standard

Tridonic.

Integral sensors

Philips EasyAir.

PIR/ Daylight.

Helvar Active Plus.

Micro Standalone Sensor.

Accessories

Not required.

Central modules.

Insert requirements.

End modules.

Insert requirements.

Right start, 90° horizontal corner, 600 x 600 mm.

Start modules.

Insert requirements.

Suspension cable.

Product Reference

Senia Suspended - LED

Control gear position

Integral within luminaire.

Duration of emergency mode (minimum)

No emergency.

0 hours.

Three hours.

Length

566 mm.

636 mm.

706 mm.

776 mm.

846 mm.

Show more

Optics

Opal diffuser.

Microprismatic diffuser.

Asymmetric reflector.

Black opal.

Modular optics.

Colour

Black.

Grey.

White.

RAL.

Insert requirements.

Transverse

Meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards.

<20.7.

Longitudinal

<17.7.

Efficiency

94%.

Frequency

50–60 Hz.

Emergency output

200 lm.

Direct/ Indirect upward light output ratio (ULOR)

47%.

Direct/ Indirect downward light output ratio (DLOR)

53%.

Output direction

Direct/ indirect.

Environmental information

Recyclability

Frame and packaging.

-

Recycled content

Aluminium and packaging.

-
