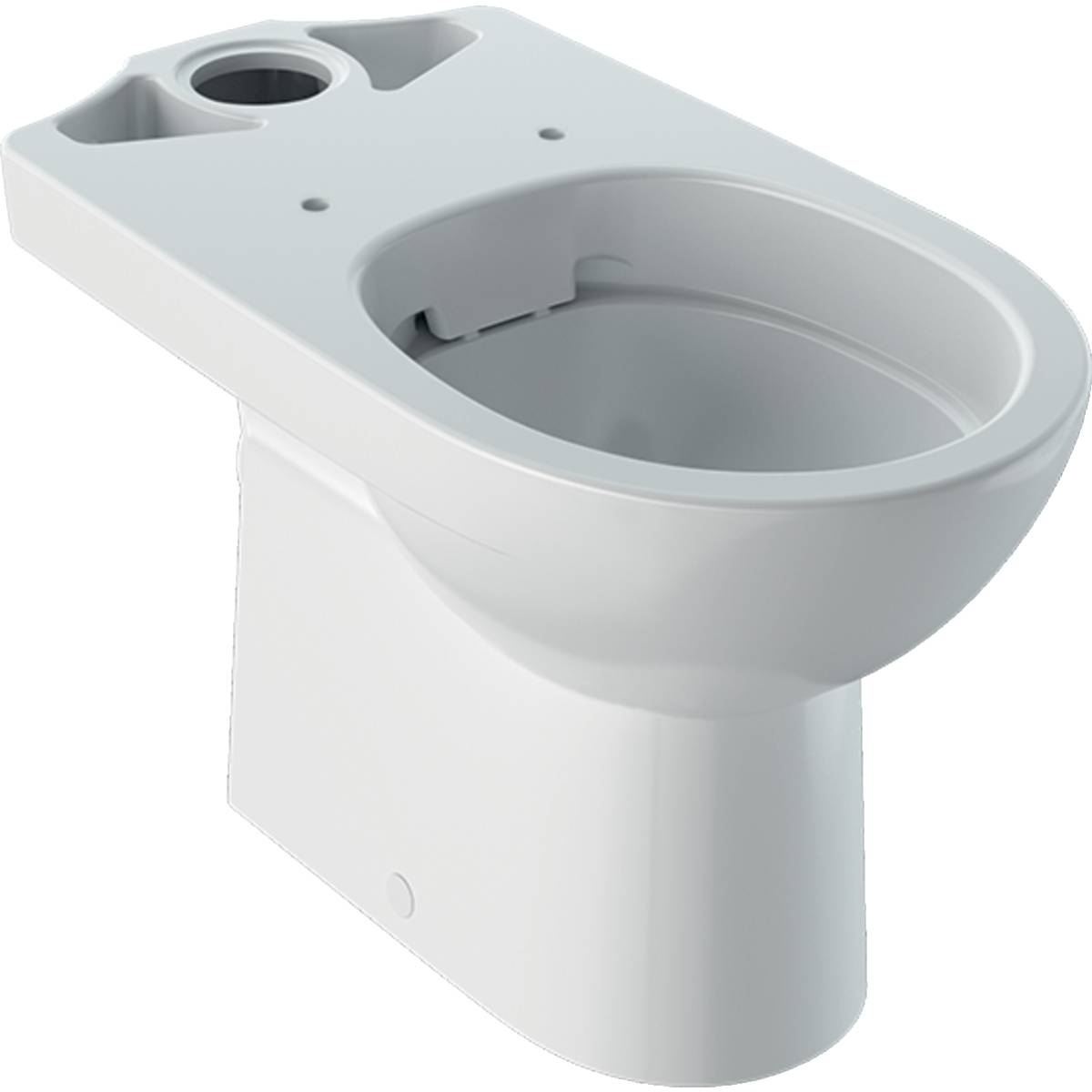

Selnova Floor-Standing WC For Close-Coupled Exposed Cistern, Washdown, Horizontal Outlet, Semi-Shrouded, Rimfree

Verified by manufacturer over a year ago

Geberit Sales Ltd

Floor-standing WC.

Jump to:
+44 (0)1926 516800 Website

Application

For close-coupled exposed cistern.

Description

Selnova floor-standing WC for close-coupled exposed cistern, washdown, horizontal outlet, semi-shrouded, Rimfree.


Features and benefits:

  • Washdown.
  • WC Rimfree.
  • Floor-standing.
  • Type 1, full flush volume 6 l, in accordance with EN 997.
  • Type 2 in accordance with EN 997.
  • Horizontal outlet.
  • Semi-shrouded.

General information

Color

White

Material

Vitreous china

Shape

Other

Length

680 mm

Width

360 mm

Height

400 mm

Uniclass

Pr_40_20_93_94 WC pansPrimary
Ss_40_15_75_97 WC systems

CAWS

N13/10 WC pans and flushing arrangements

N13/304 Wash/ dry WCs

N13/300 WCs and cisterns

Specification data - WC pans

Standard

To BS EN 997, Class 2.

Form

Pedestal, washdown.

Pan height

400 mm.

Materials

-

Body

Vitreous china to BS 3402.

Finish and colour

White.

Water supply, outlet and seat holes

-

Water supply

Top inlet.

Seat holes

Two pre-drilled holes, standard pattern.

Cistern

Not required.

501.047.00.6, Selnova exposed cistern, close-coupled, dual flush, bottom water supply connection.

501.459.00.6, Selnova Square exposed cistern, close-coupled, dual flush, bottom water supply connection.

Seats

Not required.

500.330.01.1, Selnova seat and cover, plastic bottom fix hinge.

500.331.01.1, Selnova seat and cover, metal bottom fix hinge.

500.333.01.1, Selnova soft close seat and cover, top fix hinge.

500.335.01.1, Selnova soft close seat and cover with quick release, top fix hinge.

Show more

Standard

To BS EN 14055.

Manufacturer guidance

WC flushing cisterns.
