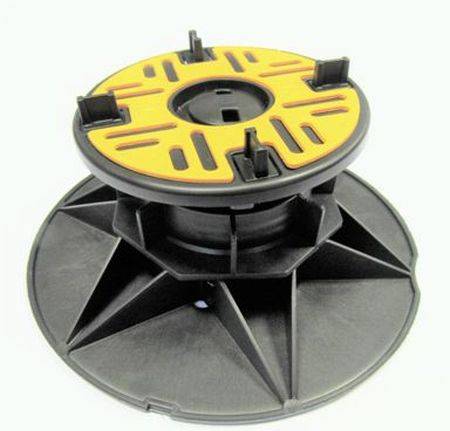

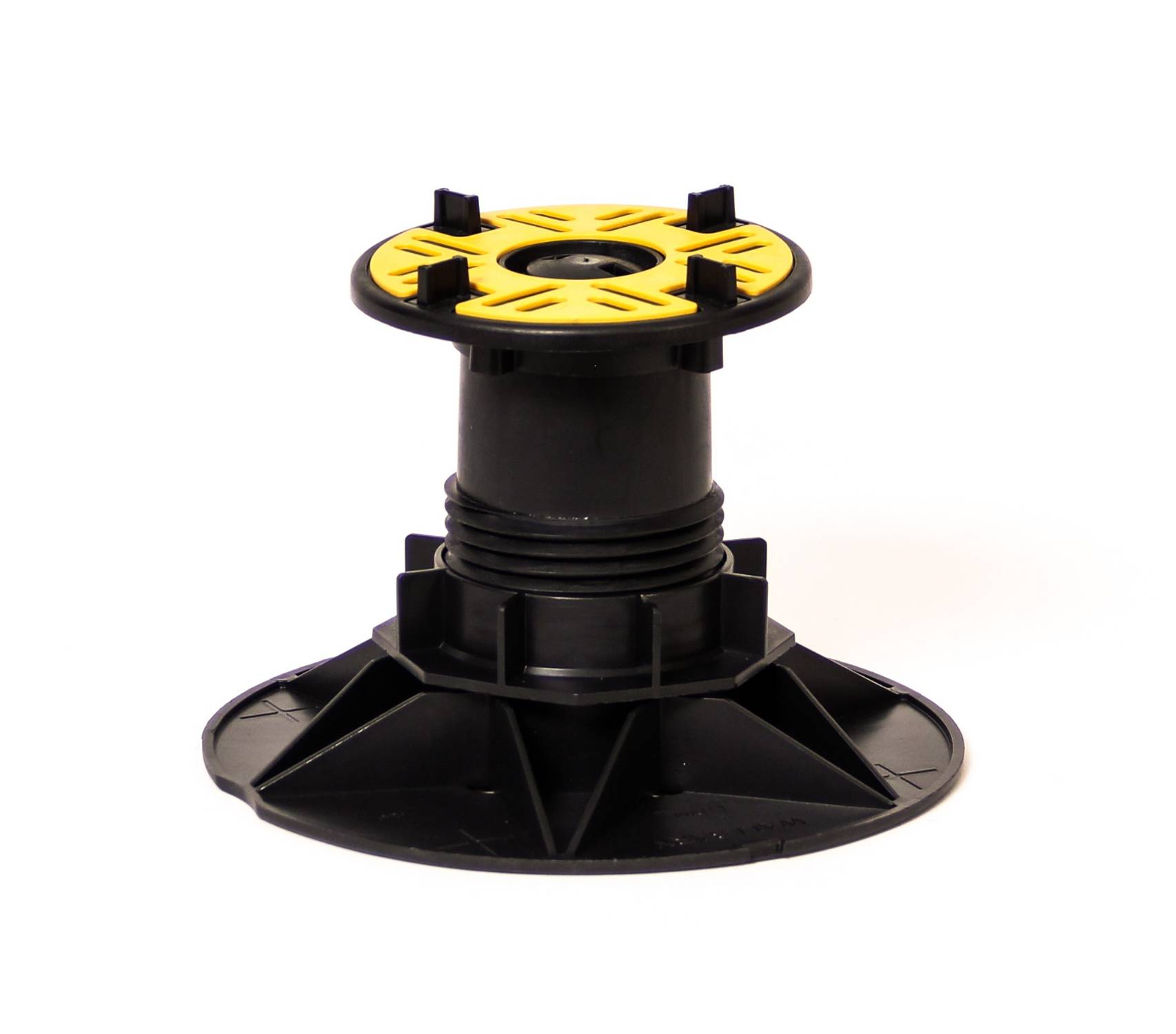

Self-levelling Pedestal for Paving and Decking

Name: Self-levelling Pedestal for Paving and Decking
Brand: 6wE66e433MAhFapoSEYAQt
SKU: qZn9cGdRrRiNYNaHZhgiCV

Wallbarn Ltd

Adjustable support pedestals for paving and decking, suitable for use with porcelain.

Jump to:

+44 (0)20 8916 2222 www.wallbarn.com

Description

Features and benefits:

Virgin fibre polypropylene supporting legs designed to suspend paving slabs and decking joists on the headpiece.

Self-levelling headpiece with tolerance up to 5% helps keep upper surface flat when paving or decking to falls.

For use with concrete flags, natural stone slabs, porcelain tiles or hardwood timber tiles.

Normal weight tolerance: 683 kg; break point: 1171 kg.

Temperature tolerance: +75°C to -40°C.

Radically improve the drainage on structural decks.

For Paving - standard 2 mm wide positioning lugs ensure uniform spacing between slabs.

For Decking - 55mm gap between lugs means standard timber joist is house between lugs.

Suspended system–no mechanical fixings are required.

Cleaner, faster installation of paving slabs onto structural decks.

Very small, irregular or multiple changes in height can be accommodated by twisting the stem.

For Paving - once the paving slab is placed on top of the support the whole system locks into place. The deck can be inspected at any time without major disruption.

For Decking - timber joist sits loosely between the lugs without fixings, allowing movement. Decking boards are fixed to joist framework.

General information

Uniclass 2015	Decking and paving pedestals (Pr_20_85_47_22)Primary

Specification data - Decking and paving pedestals

Product Reference	BALANCE Self Levelling Adjustable Pedestals for paving and decking
Height	25–50 mm 47–62 mm 62–82 mm 77–112 mm 107–142 mm 137–172 mm 167–202 mm 197–232 mm 222–257 mm 252–287 mm 282–317 mm 312–347 mm 342–377 mm 97–147mm BALANCE EXTRA. 137–227 mm BALANCE EXTRA. 222–392 mm BALANCE EXTRA.
Lug width	2 mm Standard. 4 mm
Accessories	None 150 mm diameter baseplates For paving up to the wall or parapet. Metal plate for edging and paving up to walls Slope corrector angle, 1 % Slope corrector angle, 2 % Slope corrector angle, 3 %

Standard product features	Head diameter: 120 mm. Base plate diameter: 200 mm standard (150mm diameter available). Lug height: 10 mm. Loading: 683 kg per unit.

Digital objects

Platform	Compatible	Version	Certified to
IFC	-	6	2.1
Revit	-	7	2.1

Download now from NBS National BIM Library

Literature

Wallbarn Catalogue for Pedestals, Decking, Green Roofs, Waterproofing, Geotextile & Drainage

Pedestals & Support Pads Brochure

Pedestals Overview Brochure

Self-levelling Pedestal for Paving and Decking

BALANCE Self Levelling Adjustable Pedestals for paving and decking

25–50 mm

47–62 mm

62–82 mm

77–112 mm

107–142 mm

137–172 mm

167–202 mm

197–232 mm

222–257 mm

252–287 mm

282–317 mm

312–347 mm

342–377 mm

97–147mm

137–227 mm

222–392 mm

2 mm

4 mm

None

150 mm diameter baseplates

Metal plate for edging and paving up to walls

Slope corrector angle, 1 %

Slope corrector angle, 2 %

Slope corrector angle, 3 %

Head diameter:120 mm.Base plate diameter:200 mm standard (150mm diameter available).Lug height:10 mm.Loading:683 kg per unit.

Head diameter:
120 mm.
Base plate diameter:
200 mm standard (150mm diameter available).
Lug height:
10 mm.
Loading:
683 kg per unit.
