Securus Flat - Fencing system
Application

  • Schools.
  • Industrial and commercial units.
  • Police stations and secure units.
  • Ministry of Defence (MOD).
  • Airports and seaports.

Description

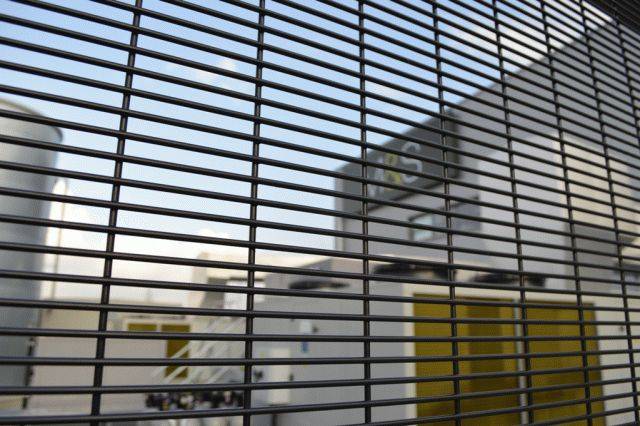

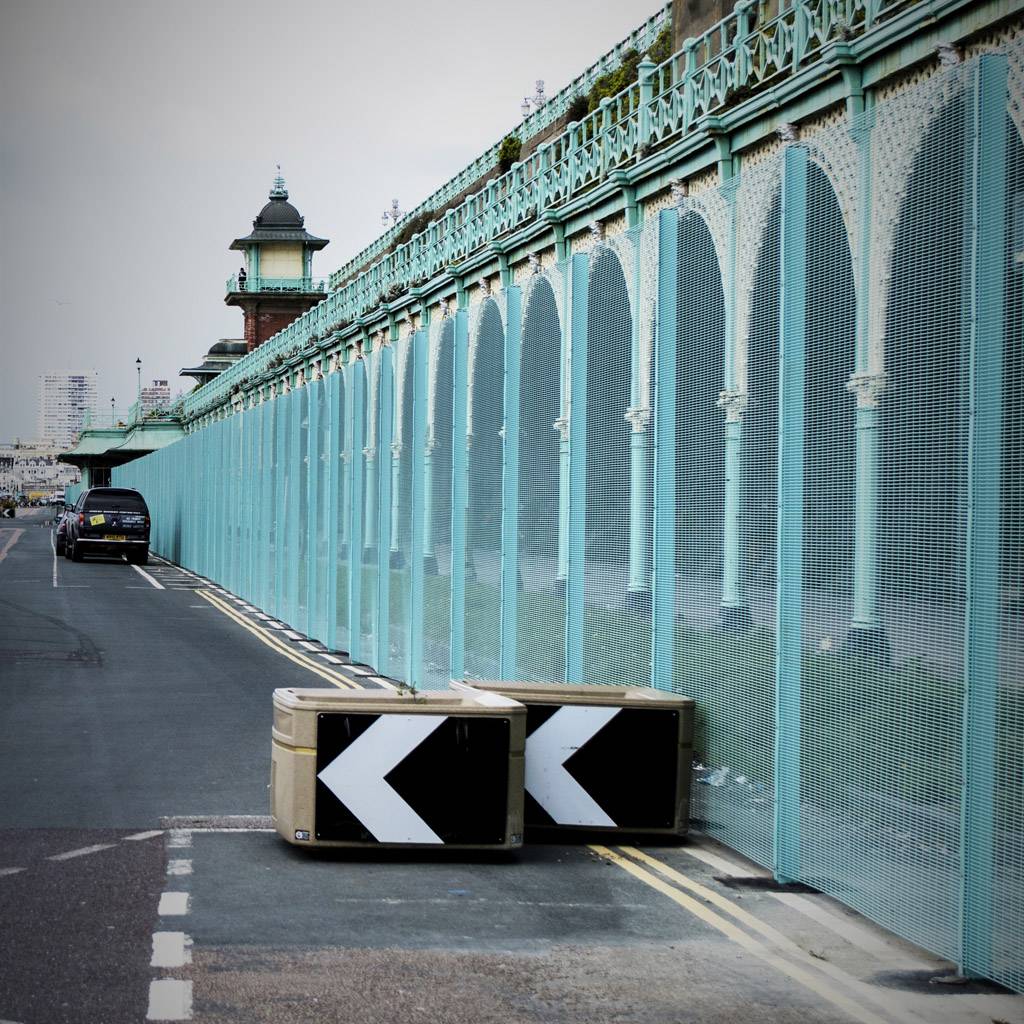

The Securus™ flat system has many varied applications including perimeter security to schools and police stations. The flat Securus™ fence system has become increasingly popular as a rebound surface for sports facilities (replacing the conventional rebound board), thus extending the effective working life of the facility, lowering maintenance costs and providing a more aesthetically pleasing appearance in built-up areas.


Features:

  • Attractive appearance, even with dense mesh.
  • Rigid welded mesh panels.
  • RAL colours available.


General information

Finish

Galvanized

Powder-coated

Material

Steel

WarrantyDescription

15 year

Uniclass 2015

Ss_25_14_67_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/126 Open mesh steel panel security fencing

Q40/27 Open mesh steel panel fencing

Q40/430 Proprietary fencing

Specification data - Metal mesh panel fencing systems Enhanced data

System performance

Anti-intruder and security fencing performance.

Standard

To BS 1722-14.

Posts

Manufacturers standard.

Purpose-made.

Insert requirements.

Fence topping

Not required.

Barbed wire.

Double mesh cranks.

Razor wire, coiled.

Product Reference

Securus™ Flat Panel System

Height

Other heights 0.5–6.0 m available on request. Insert requirements.


1830 mm.

2030 mm.

2440 mm.

3000 mm.

As drawing.

Insert reference where applicable.

Colour and finish

Galvanized and polyester powder-coated, RAL colour.

RAL 6005 as standard, full spectrum of colours available subject to quantity and price.

Mesh size

76.2 x 12.5 mm.

WireDiameter

4 mm.

Horizontals and verticals.

Fasteners

M8 cup square bolt with permacone nut and security washer.

Width

2515 mm.

Digital objects
Platform Compatible Version Certified to
Revit

Revit 2016

1

2.0
IFC
-

1

2.0
Download now from NBS National BIM Library
