Application

Industrial emergency exit, security factory panic escape door, industrial fire exit door, commercial, warehouse emergency exit, security fire escape.

Description

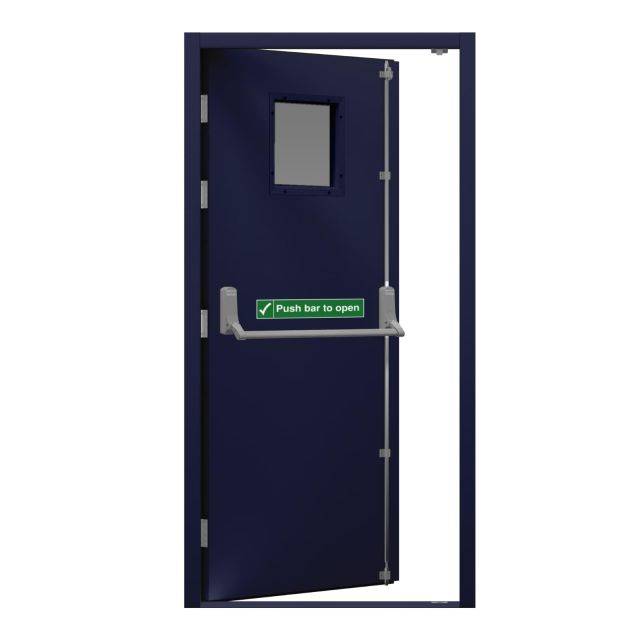

Single leaf, heavy-duty, steel security fire exit door suitable for external use. Compared to the Budget Fire Exit Door, this door is fitted with an Exidor 294 adjustable two-point security emergency exit push bar, is manufactured from thicker gauge steel and has an extra hinge.

It has a flush external face and a range of Exidor outside access devices are available if the fire escape door is intended to also act as an entrance.

Features and benefits:

  • Heavy-duty white smooth polyester powder coated finish as standard.
  • Fully welded construction for optimum strength.
  • Four stainless steel heavy-duty ball bearing hinges and four dog bolts (fixed locking points) on hinge side of door leaf.
  • Security two-point push bar with adjustable shoot bolts.
  • Weather and draught proof seals supplied as standard. It is fully weather proof and can be used externally.
  • DDA compliant threshold.
  • Anti-jemmy bar lip integrated into the door and frame, including the hinge side.
  • CE marked.

Applications:

Industrial emergency exit, security factory panic escape door, industrial fire exit door, commercial, warehouse emergency exit, security fire escape.

General information
Finish

Polyester powder coated

Material

Door frame: 1.8 mm thick galvanized steel

Door leaf: Double skinned 1 mm thick galvanized steel with a Rockwool insulation core

Uniclass 2015 High-security doorsets (Pr_30_59_24_37)
Specification data
Product Reference

Security Fire Exit Door

External frame size -
Width

695 mm

795 mm

845 mm

895 mm

945 mm

995 mm

1095 mm

1195 mm

Height

1900 mm

1910 mm

1920 mm

1930 mm

1940 mm

1950 mm

1960 mm

1970 mm

1980 mm

1990 mm

2000 mm

2010 mm

2020 mm

Standard.

Configuration

Open out, left handed

Open out, right handed

Security upgrades

Not required

Drop bar kit

For additional door security.

Security trim kit, external

For additional external door security.

Security trim kit, external and internal

For additional external door security.

Colour

Latham's Stock White

Standard.

Special order

Insert requirement, many BS and RAL colours are available, contact manufacturer for information.

Over/ side panels

Not required

25 mm over panel

5–40 mm expandable side frames

Supplied as a pair.

50 mm over panel

50–85 mm expandable side frames

Supplied as a pair.

75 mm over panel

100 mm over panel

150 mm over panel

200 mm over panel

250 mm over panel

300 mm over panel

Outside access device

Not required

Exidor 302 - Outer access knob

Exidor 322 - Outer access knob

Exidor 322 - Handle and security cylinder

Accessories

None

Door sill

Door viewer, chrome finish

Door viewer, satin chrome finish

Friction stay

For outward opening doors.

Heavy duty door closer

Satin chrome finish.

Kick plates

Letterplate, chrome finish

Letterplate, satin chrome finish

Masonry fixing kit

Metal fixing kit

Push plates

Signage, fire exit keep clear

Signage, fire exit keep clear and push bar to open

Signage, push bar to open

Wood fixing kit

Standard product features

Material:

  • Door frame: 1.8 mm thick galvanized steel.
  • Door leaf: Double skinned 1 mm thick galvanized steel with a Rockwool insulation core.

Finish:

Polyester powder coated.

Design:

Plain door with flush panel.

Frame depth:

90 mm.

Door leaf depth:

50 mm.

Panic hardware:

Exidor 294A security two-point push bar with adjustable shoot bolts. Exidor OADs (outer access devices) are also available for external access.

Security type:

Medium.

U-value:

2.20 W/m²K.

Acoustic value:

35 dB.
